Disassembly and Assembly: Notes

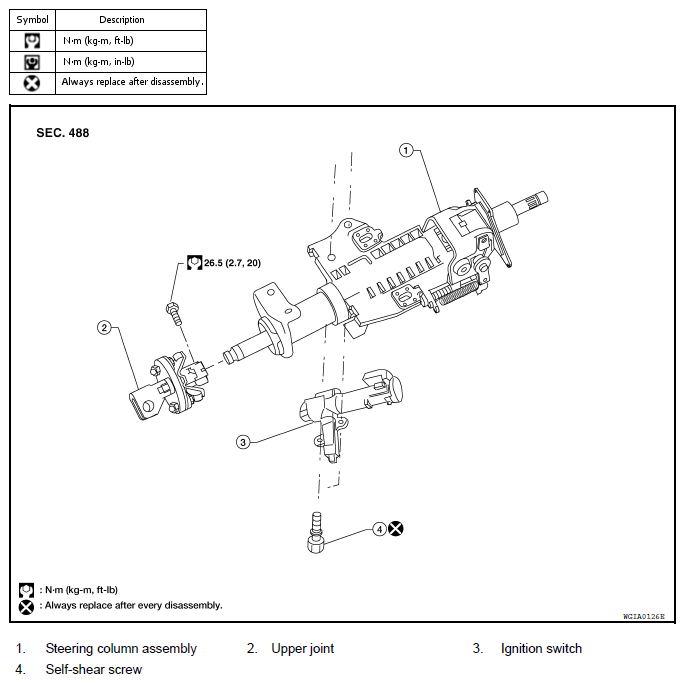

Fig 1: Disassembled View Of Steering Column With Torque Specifications
G06644695Courtesy of NISSAN MOTOR CO., U.S.A.
