Component Parts Location

Fig 1: Identifying Cooling Fan Control System Component Location (1 Of 12)
G06585368Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Cooling Fan Control System Component Location (2 Of 12)
G06585369Courtesy of NISSAN MOTOR CO., U.S.A.

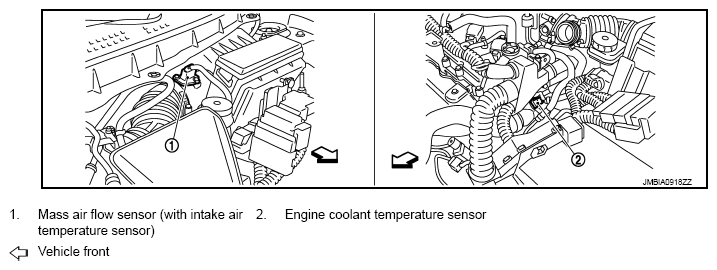

Fig 3: Identifying Cooling Fan Control System Component Location (3 Of 12)
G06585370Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Identifying Cooling Fan Control System Component Location (4 Of 12)
G06585371Courtesy of NISSAN MOTOR CO., U.S.A.

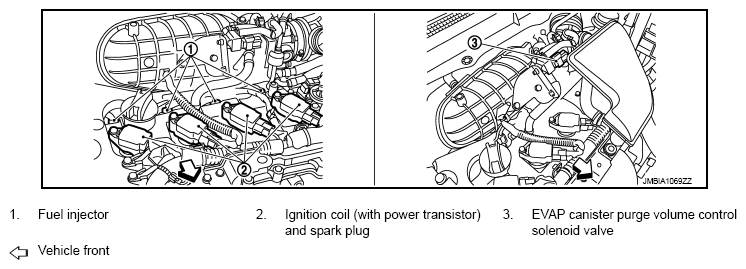

Fig 5: Identifying Cooling Fan Control System Component Location (5 Of 12)
G06585372Courtesy of NISSAN MOTOR CO., U.S.A.

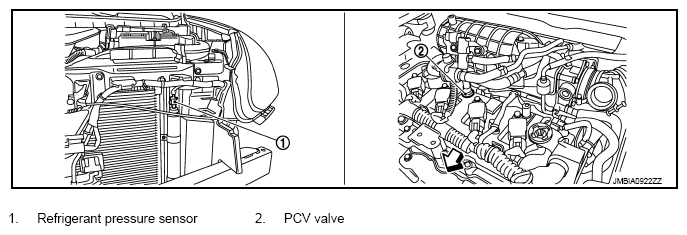

Fig 6: Identifying Cooling Fan Control System Component Location (6 Of 12)
G06585373Courtesy of NISSAN MOTOR CO., U.S.A.

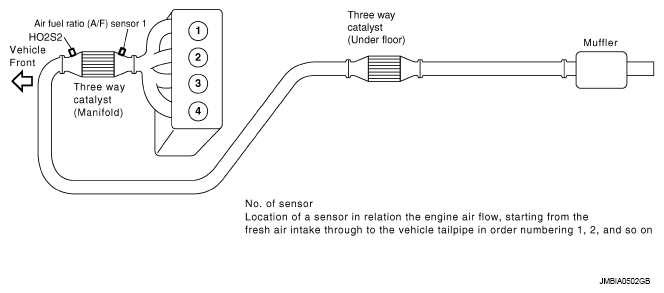

Fig 7: Identifying Cooling Fan Control System Component Location (7 Of 12)
G06585374Courtesy of NISSAN MOTOR CO., U.S.A.

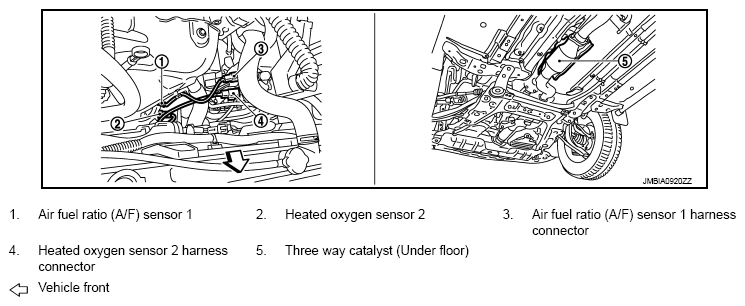

Fig 8: Identifying Cooling Fan Control System Component Location (8 Of 12)
G06585375Courtesy of NISSAN MOTOR CO., U.S.A.

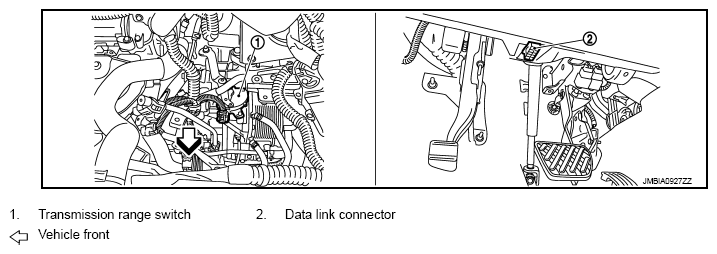

Fig 9: Identifying Cooling Fan Control System Component Location (9 Of 12)
G06585376Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 10: Identifying Cooling Fan Control System Component Location (10 Of 12)
G06585377Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 11: Identifying Cooling Fan Control System Component Location (11 Of 12)
G06585378Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 12: Identifying Cooling Fan Control System Component Location (12 Of 12)
G06585379Courtesy of NISSAN MOTOR CO., U.S.A.
