Exploded View

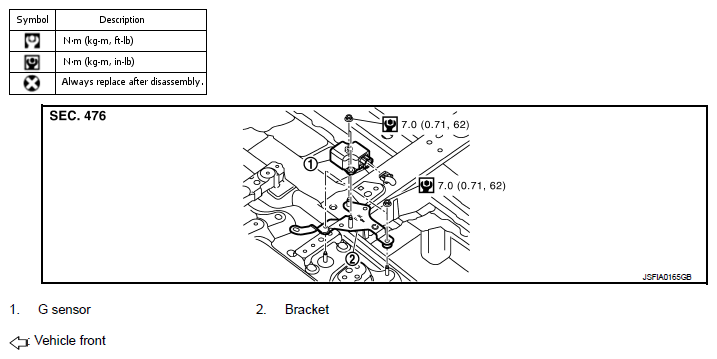

Fig 1: Exploded View Of G Sensor With Torque Specifications
G06584352Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol in the figure.
