Component Parts Location

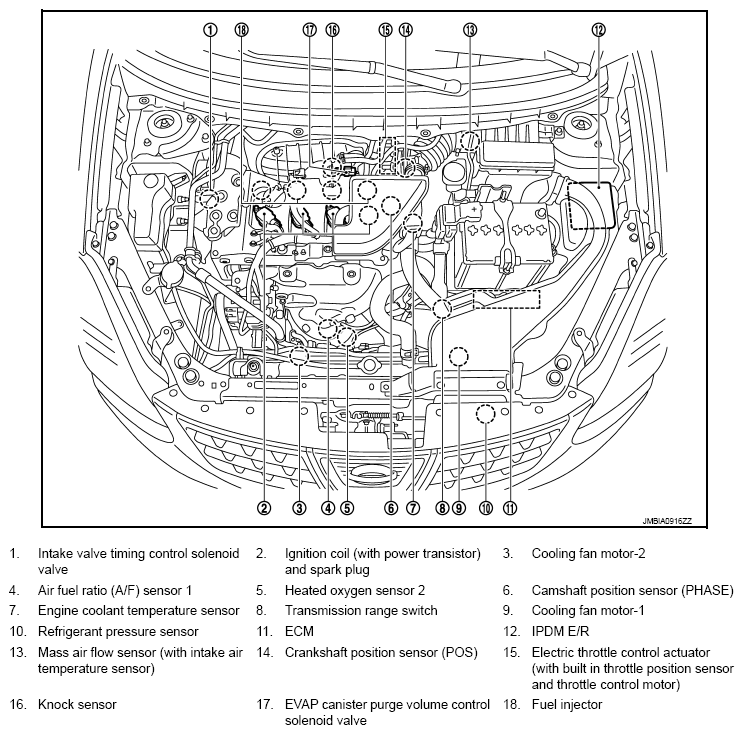

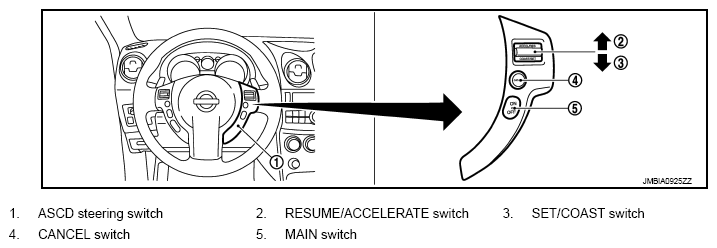

Fig 1: Identifying Air Conditioning Cut Control System Component Location (1 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

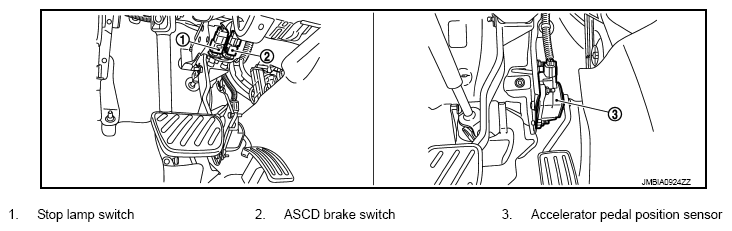

Fig 2: Identifying Air Conditioning Cut Control System Component Location (2 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

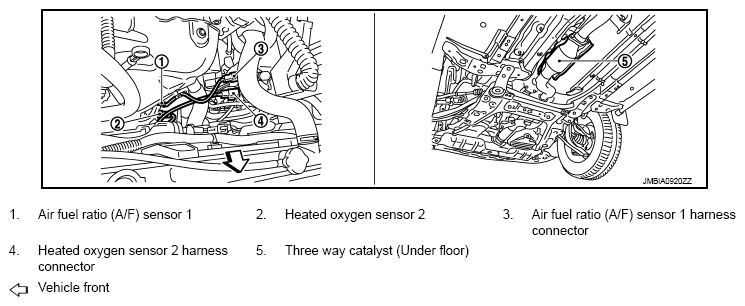

Fig 3: Identifying Air Conditioning Cut Control System Component Location (3 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

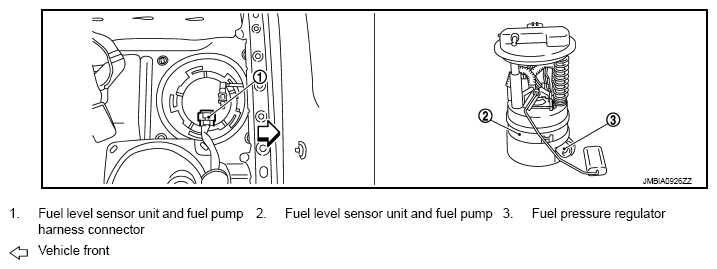

Fig 4: Identifying Air Conditioning Cut Control System Component Location (4 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Air Conditioning Cut Control System Component Location (5 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Air Conditioning Cut Control System Component Location (6 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Air Conditioning Cut Control System Component Location (7 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Air Conditioning Cut Control System Component Location (8 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Air Conditioning Cut Control System Component Location (9 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Air Conditioning Cut Control System Component Location (10 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Air Conditioning Cut Control System Component Location (11 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Air Conditioning Cut Control System Component Location (12 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.
