Component Parts Location

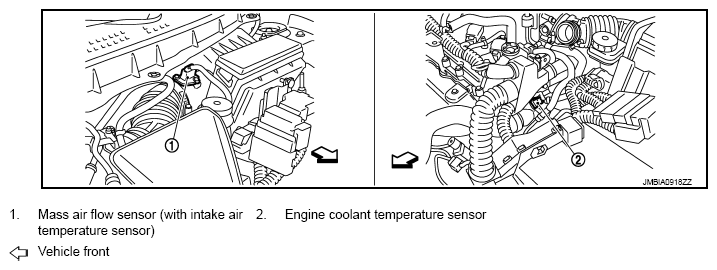

Fig 1: Identifying Tumble Control Valve Control Component Parts Location (1 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

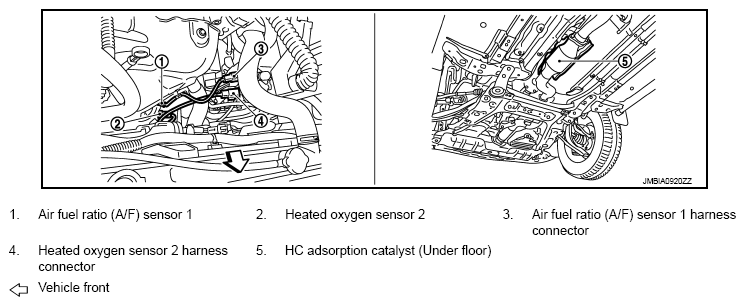

Fig 2: Identifying Tumble Control Valve Control Component Parts Location (2 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

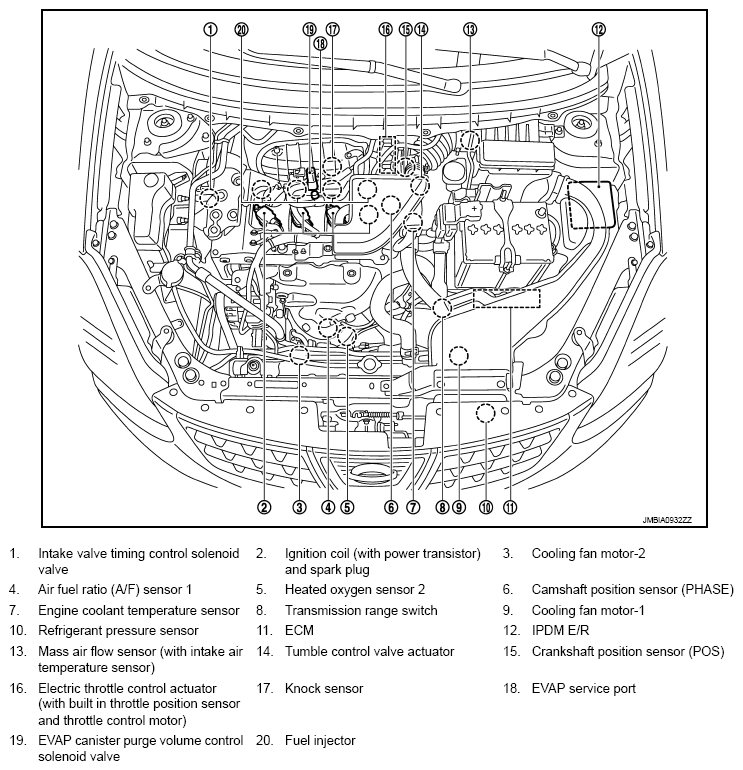

Fig 3: Identifying Tumble Control Valve Control Component Parts Location (3 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

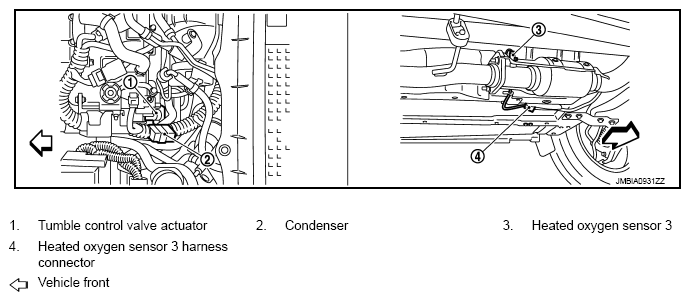

Fig 4: Identifying Tumble Control Valve Control Component Parts Location (4 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

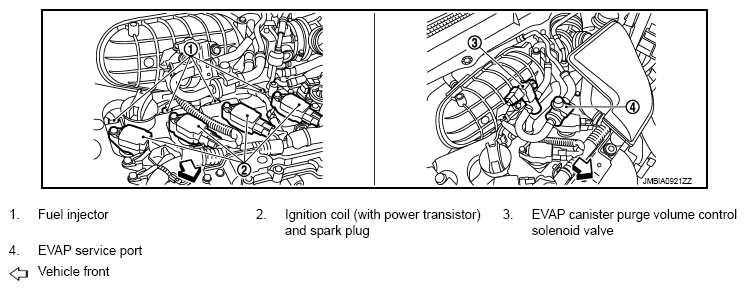

Fig 5: Identifying Tumble Control Valve Control Component Parts Location (5 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

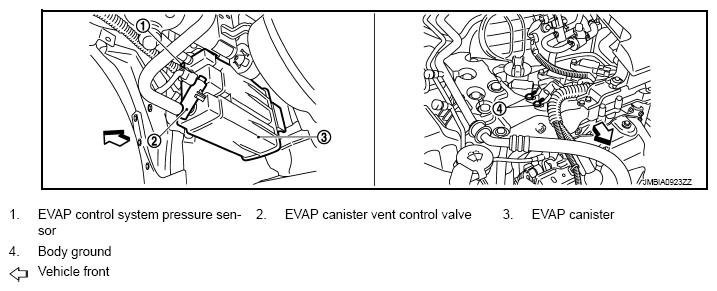

Fig 6: Identifying Tumble Control Valve Control Component Parts Location (6 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

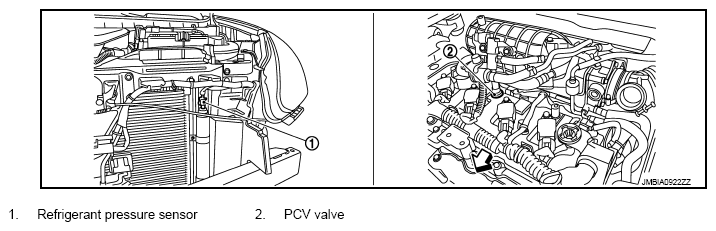

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Tumble Control Valve Control Component Parts Location (8 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Tumble Control Valve Control Component Parts Location (9 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Tumble Control Valve Control Component Parts Location (10 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Tumble Control Valve Control Component Parts Location (11 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Tumble Control Valve Control Component Parts Location (12 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Tumble Control Valve Control Component Parts Location (13 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Tumble Control Valve Control Component Parts Location (14 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.
