Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns For "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"
WARNING:
This page is about a different variant/trim than selected.

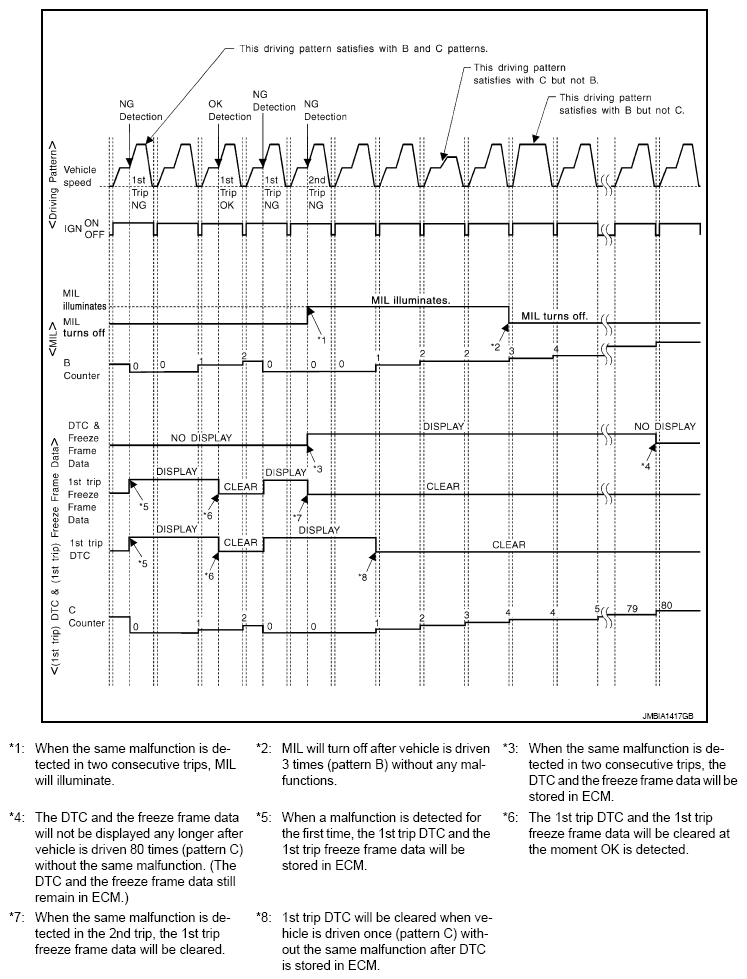

Fig 1: Driving Pattern Of DTC Number
Courtesy of NISSAN MOTOR CO., U.S.A.
