Audio-Navigation Unit Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard and related parts.
  • Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.
  • Eject all the discs before remove the audio-navigation unit to prevent damaging the CD player's load mechanism.
  • If you are replacing the audio-navigation unit, write down the audio presets (if possible), and enter them into the new audio-navigation unit.
  1. Make sure you have the anti-theft codes for the audio-navigation unit.
  2. Remove the driver's inner dashboard trim (see DRIVER'S INNER DASHBOARD TRIM REMOVAL/INSTALLATION ), and the passenger's dashboard trim (see CENTER POCKET REMOVAL/INSTALLATION ).

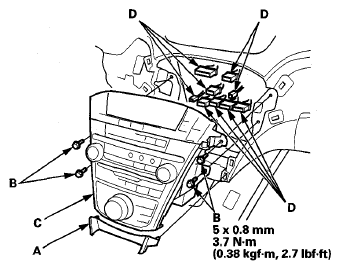

  3. Remove the console lower trim (A) and the bolts (B), then pull out the audio-navigation unit (C).
    Fig 1: Audio-Navigation Unit With Torque Specifications
    G08058237Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors (D), then remove the audio-navigation unit.
  5. Remove the climate control unit (see FRONT EVAPORATOR TEMPERATURE SENSOR REPLACEMENT ).

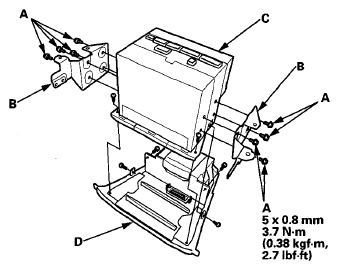

  6. Remove the bolts (A) and the radio brackets (B).
    Fig 2: Audio-Navigation System Related Replacement Components With Torque Specifications
    G08058238Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the screws and audio-navigation unit (C) from the audio-navigation panel (D).
  8. Remove the interface dial (see INTERFACE DIAL REMOVAL/INSTALLATION  ).
  9. If you are replacing the audio-navigation unit, remove the HDD from the original audio-navigation unit, and install it in the replacement audio-navigation unit (see FORCED STARTING OF THE AUDIO-NAVIGATION UNIT  ).
    NOTE: To avoid damaging the audio-navigation unit or HDD:
    • Do not remove the HDD with any of the audio-navigation unit connectors connected.
    • Do not power up the audio-navigation unit without the HDD installed.
  10. Install the audio-navigation unit in the reverse order of removal.
    NOTE: Check any official Honda service website for more service information about patches for the navigation system. Apply any prescribed patches to the new audio-navigation unit.
  11. Enter the new audio-navigation unit anti-theft codes.
  12. Park the vehicle outside, and do the GPS initialization (see GPS INITIALIZATION  ).
  13. Give the new anti-theft codes to the client.
