Interface Dial Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
Remove the screws (A) and harness cover (B).

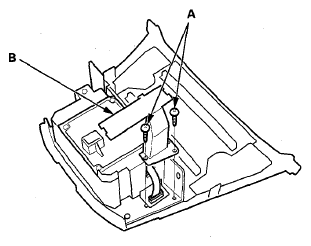

Fig 1: Identifying Harness Cover And Screws Of Audio-Navigation Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the interface dial 13P connecter (A).

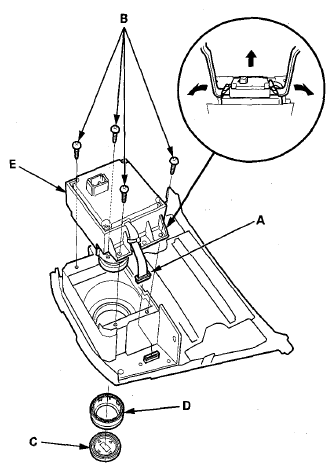

Fig 2: Identifying Interface Dial And Related Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (B), then remove the knob (C) and the dial (D) from the interface dial (E) with two KTC trim tools and applying even force as shown.
NOTE: Apply pressure slowly and steady until the knob and dial pops off.
Install the dial in reverse order of removal.

NOTE: If the hard buttons do not work, but the jog dial does, recheck the interface dial connector connection.
