HDD Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Check any official Honda service website for more service information about the navigation system.
Static electricity can damage the HDD. Always follow proper handling procedures.
Always use the anti-static mat (ESD) and wrist strap when removing the HDD. Before you open the audio-navigation unit or handle the replacement HDD, attach the wrist strap around one of your wrists, and attach the alligator clip to the ESD mat.
Make sure you use the screws in the same holes. The HDD can be damaged if the wrong screws are used.
Do not force the HDD. If it does not slide in smoothly, check the alignment of the HDD and the pins. If the pins are bent, replace the HDD.
Make sure the HDD screws are not loose. If they are, the HDD can be damaged.
Handle the HDD by its edges. Do not touch the pins.

Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
Remove the passenger's side radio bracket.
Remove the screws (A).

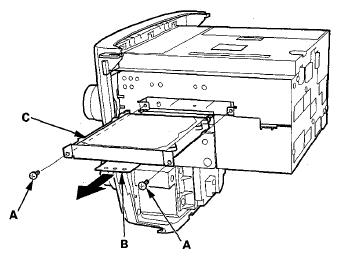

Fig 1: Lifting Plastic Tab To Pull HDD
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lift the plastic tab (B), and use it to pull out the HDD (C).
Install the HDD in the reverse order of removal.
NOTE: Make sure the HDD is properly aligned when installing the HDD.
