Unit Check (Quick Check): GPS
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
This diagnostic tests the GPS antenna connection and the GPS receiver condition.

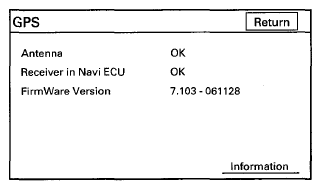

- In the GPS menu, if the Antenna indicates NG, then check the entire GPS antenna wire from the audio-navigation unit to the antenna. If the wire is crushed or damaged, try a known-good antenna. If this diagnostic reads OK, then order a new GPS antenna.
If the diagnostic still reads NG (Antenna), then replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
- Select information to see the GPS satellite details.
