Voice Control Switch Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
Remove the 20P connector (A) from the cable reel.

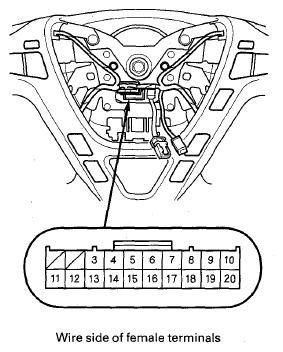

Fig 1: Identifying 20P Connector On Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Measure the resistance between the terminals No. 8 and No. 19 in each switch position according to the table.

Position	Resistance
No buttons pressed	About 10 kΩ
Talk button pressed	About 2.2 kΩ
Back button pressed	About 640 Ω

If the resistance is not as specified, replace the voice control switch (see VOICE CONTROL SWITCH REPLACEMENT ).
Use a diode tester between the terminals in each switch position according to the table.

Fig 2: Identifying Diode Tester Terminals In Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the diode test is not as specified, replace the voice control switch (see VOICE CONTROL SWITCH REPLACEMENT ).
