Humidity Sensor Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
  2. Connect the humidity/in-car temperature sensor 4P connector.
  3. Turn the ignition switch to ON (II). Measure the voltage between terminals with the (+) probe on terminal No. 2 and the (-) probe on terminal No. 3 with the connector connected.

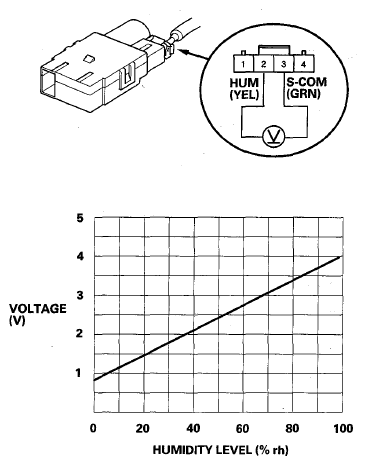

    Fig 1: Measuring Voltage Between Humidity/In-Car Temperature Sensor Connector Terminals No. 2 and No. 3
    G08057968Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the voltage is not as specified, replace the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
