In-Car Temperature Sensor Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
  2. Test the humidity/in-car temperature sensor while holding it in front of the dashboard center vent.
    • Measure the resistance with the system set to Max Cool.
    • Measure the resistance with the system set to Max Hot.
  3. Compare the resistance reading between terminals No. 4 and No. 3 of the humidity/in-car temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.

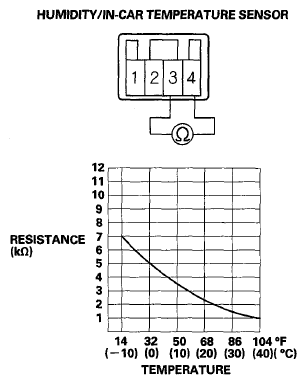

    Fig 1: Measuring Resistance Between In-Car Temperature Sensor Connector Terminals No. 3 And No. 4
    G08057969Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the resistance is not as specified, replace the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
