DRIVER SIDE: Side Air Bag Module: Assembly

Installation is in the reverse order of removal.

CAUTION:

Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.
Smooth out all wrinkles during assembly.
Always route side air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.
After installation is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to "SRS FINAL CHECK ".

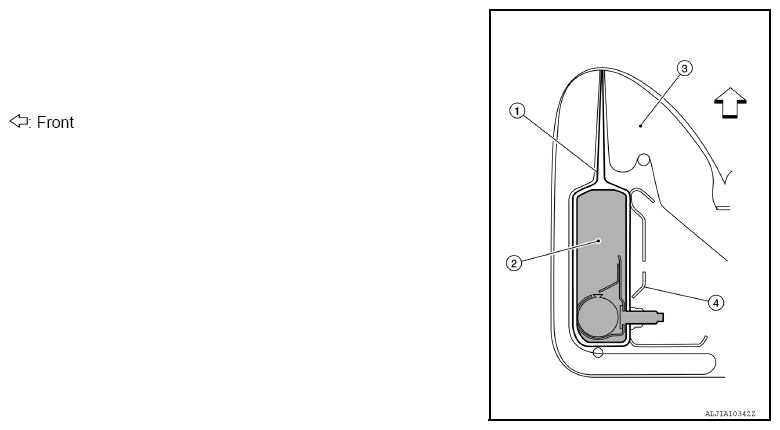

When installing the side air bag module, make sure the side air bag chute (1) is pulled over the outboard surface of the side air bag module (2). Make sure there are no wrinkles and the chute is not folded, twisted or pinched.
(3): Seatback pad

(4): Seat frame assembly

Fig 1: Identifying Side Air Bag Module, Chute, Seatback Pad And Seat Frame Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Tighten the side air bag module nuts to specification. Refer to "DRIVER SIDE: EXPLODED VIEW ".
CAUTION: Do not reuse the side air bag module nuts.
