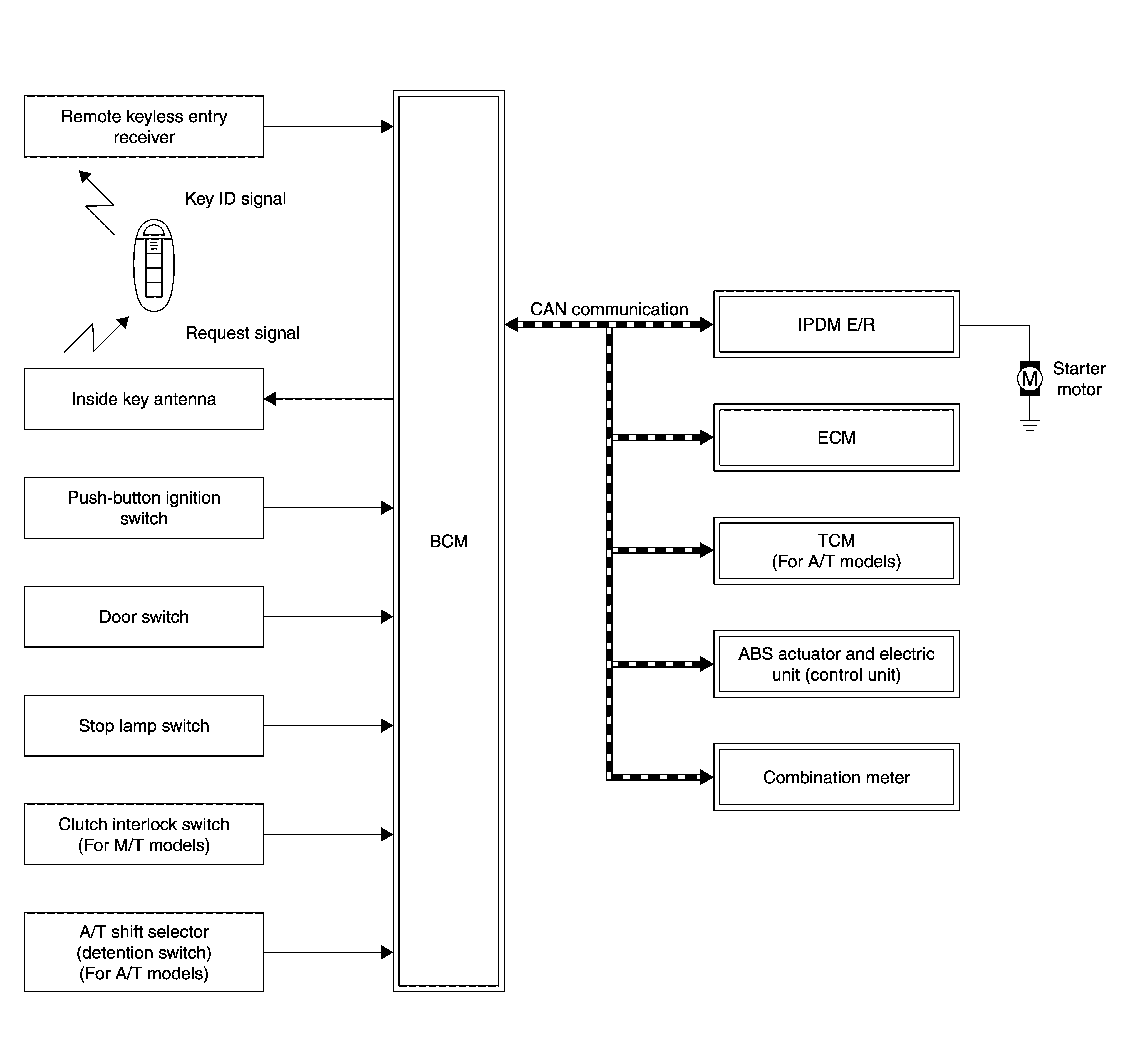

System Diagram

WARNING: This page is about a different car, the 2017 Nissan 370Z and 2016 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
G08103450Courtesy of NISSAN NORTH AMERICA, INC.
