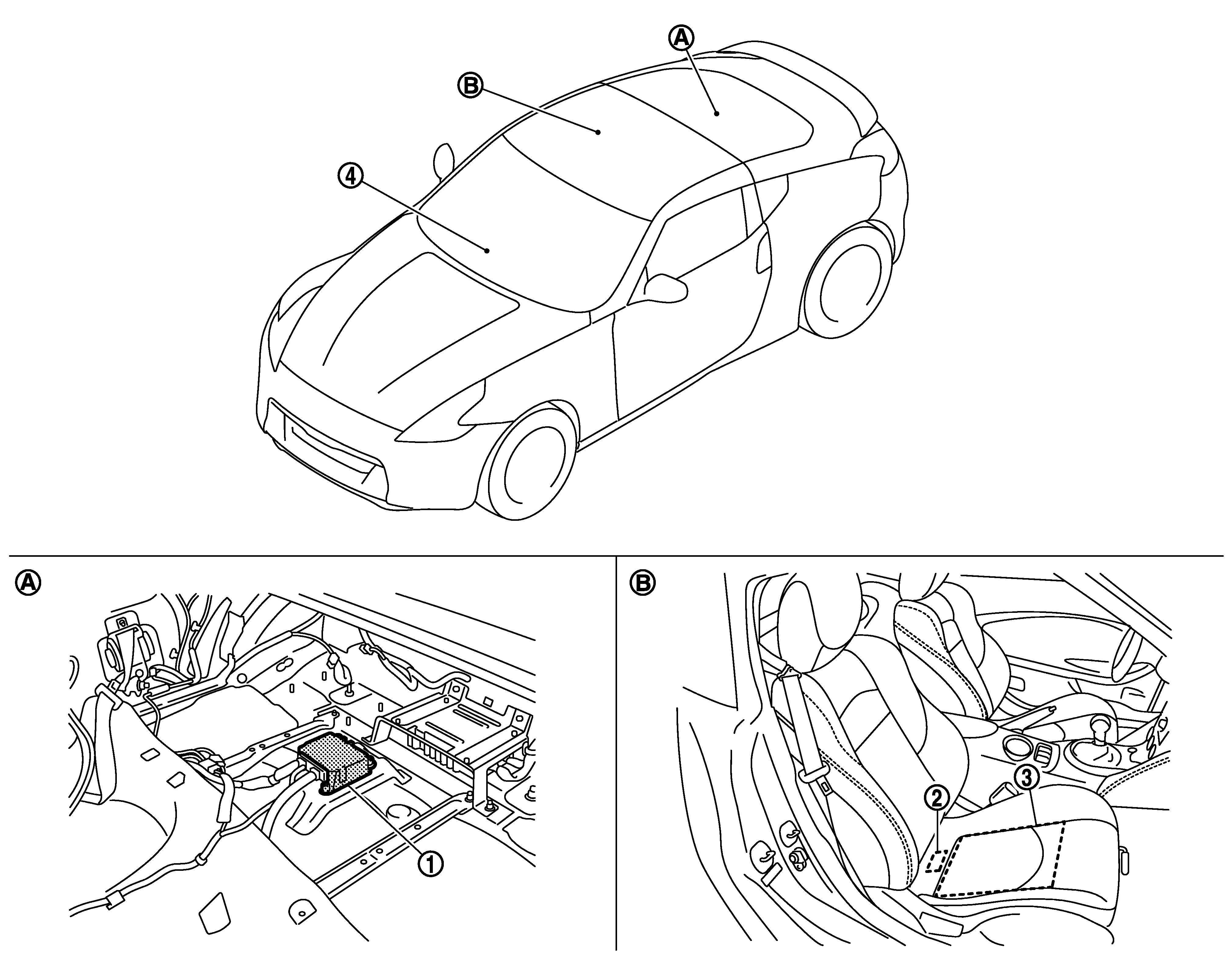

Component Location
|
1. |
Air bag diagnosis sensor unit |
2. |
Occupant Classification System control unit |
3. |
Occupant Classification System seat sensor mat |
|
4. |
Passenger air bag OFF indicator |
||||
|
A. |
Behind seatback center finisher |
B. |
Passenger seat |
||
|
Component parts |
Outline of function |
|
Occupant Classification System seat sensor mat |
Detects if the passenger seat is empty or occupied. It is integrated into the seat cushion and detects the occupants with occupant classification system control unit that classifies the occupants. |
|
Occupant Classification System control unit |
Transmits the passenger seat status (occupied or empty) to air bag diagnosis sensor unit. It is installed in the passenger seat cushion. |
|
Passenger air bag OFF indicator |
Turns the passenger air bag OFF indicator lamp ON when the front passenger seat is occupied by a child or a child-seat |
