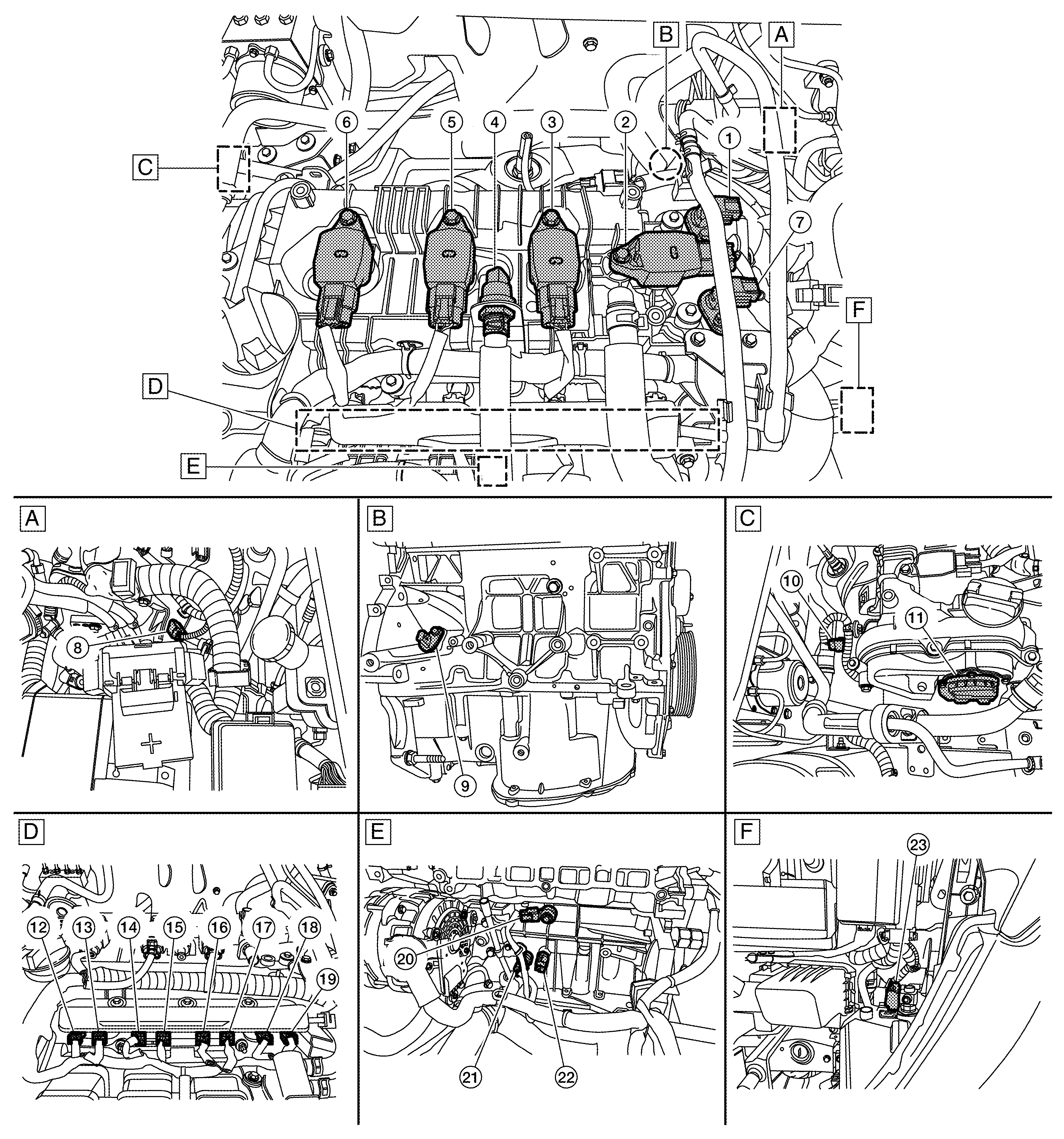

Engine Compartment
|
|
Left side of engine |
|
Left rear side of engine |
|
Right side of engine |
|
|
Top of engine |
|
Front of engine |
|
Left front of engine compartment |
|
No. |
Component |
Function |
|
|
Exhaust camshaft position sensor (phase) |
|
|
|
Ignition coil No. 4 (with power transistor) |
|
|
|
Ignition coil No. 3 (with power transistor) |
|
|
|
PCV valve |
|
|
|
Ignition coil No. 2 (with power transistor) |
|
|
|
Ignition coil No. 1 (with power transistor) |
|
|
|
Intake camshaft position sensor |
|
|
|
Engine coolant temperature sensor |
|
|
|
Crankshaft position sensor (pos) |
|
|
|
Exhaust valve timing control solenoid valve |
|
|
|
Electric intake valve timing control actuator |
|
|
|
Fuel injector No. 1 (front) |
|
|
|
Fuel injector No. 1 (rear) |
|
|
|
Fuel injector No. 2 (front) |
|
|
|
Fuel injector No. 2 (rear) |
|
|
|
Fuel injector No. 3 (front) |
|
|
|
Fuel injector No. 3 (rear) |
|
|
|
Fuel injector No. 4 (front) |
|
|
|
Fuel injector No. 4 (rear) |
|
|
|
Knock sensor |
|
|
|
Engine oil temperature sensor |
|
|
|
Engine oil pressure sensor |
|
|
|
Electric intake valve timing control module |
