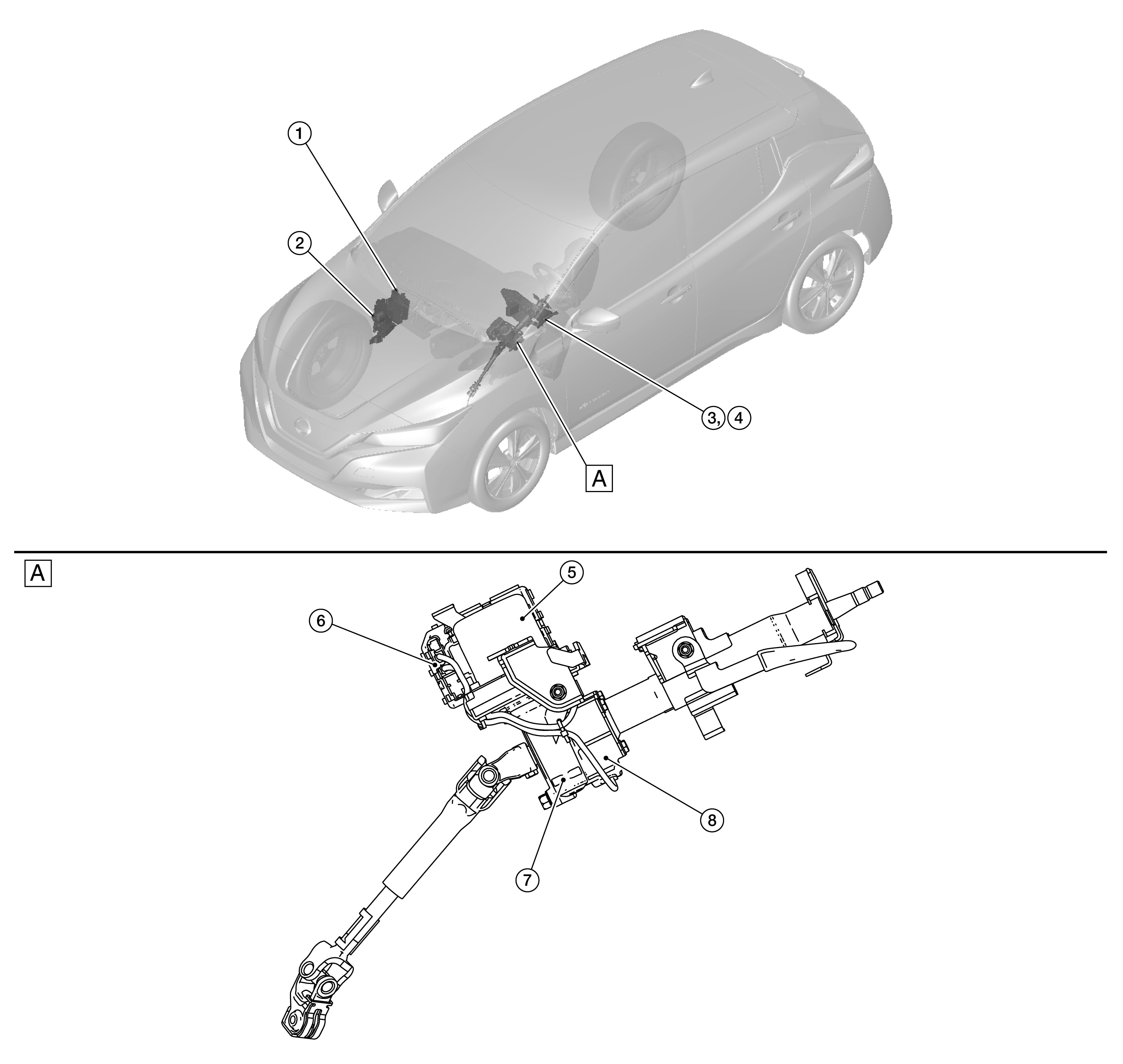

Component Parts Location

A.

Steering column assembly

No.

Component

Function

1.

VCM (Vehicle Control Module)

• Transmits mainly the following signals to EPS control unit via CAN communication.
  • Power steering start activation request signal

    Refer to Component Description . for detailed installation location.

2.

ABS actuator and electric unit (control unit)

• Transmits mainly the following signal to EPS control unit via CAN communication.
  • Vehicle speed signal

    Refer to Component Parts Location . for detailed installation location.

3.

Combination meter

• Transmits mainly the following signal to EPS control unit via CAN communication.
  • Vehicle speed signal

    Refer to Component Parts Location . for detailed installation location.

• Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication.

4.

EPS warning lamp

Refer to System Description .

5.

EPS motor

Refer to Component Description .

6.

EPS control unit

Refer to Component Description .

7.

Reduction gear

Refer to Component Description .

8.

Torque sensor

Refer to Component Description .
