Av Control Unit (With Navigation System) Connector End View (M165)

Connector Types:  3FA1ANCSJ-C02W0

Connector Color:  BLUE

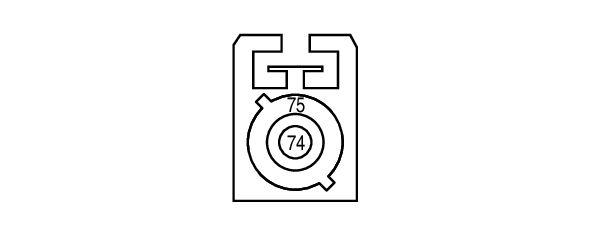

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

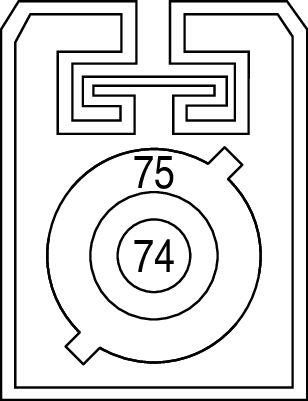

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
74	B	GPS ANT
75	SHIELD	GPS SHIELD
