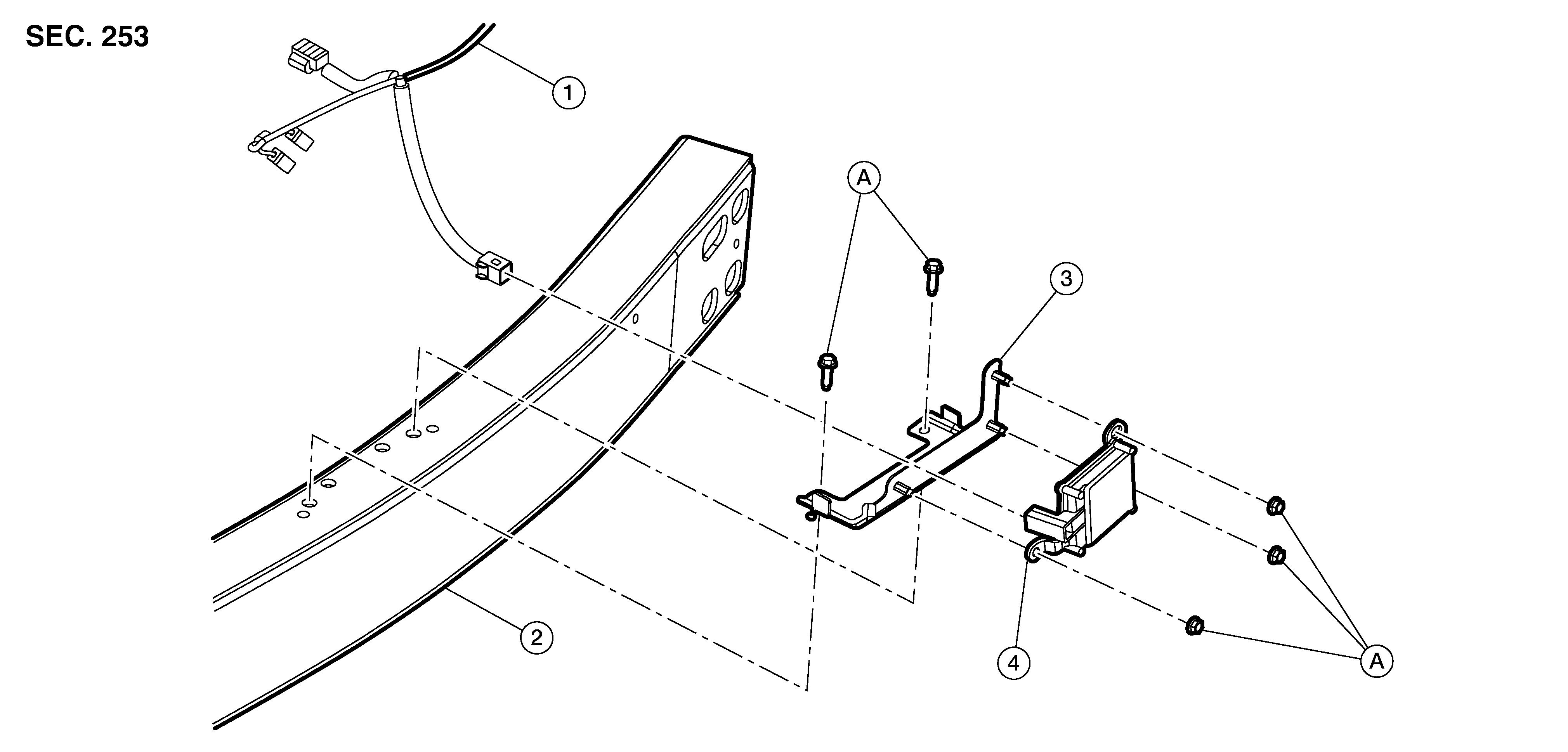

Exploded View

GNSALLIA0298Z-298Courtesy of NISSAN NORTH AMERICA, INC.

1.

Distance sensor harness connector

2.

Front bumper reinforcement

3.

Distance sensor bracket

4.

Distance sensor

A.

Refer to Removal and Installation
