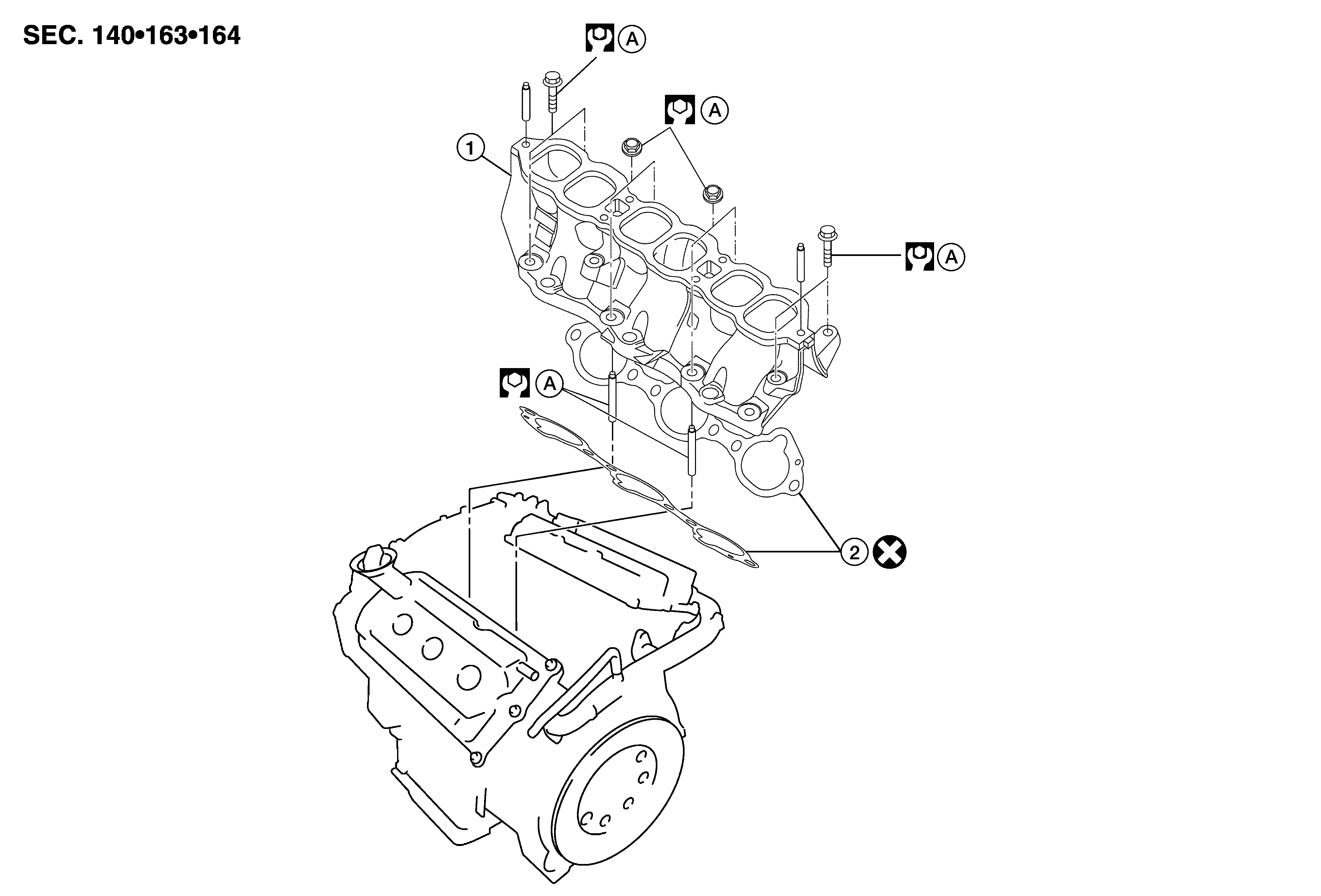

Exploded View

GNSDB120438Courtesy of NISSAN NORTH AMERICA, INC.

1.

Intake manifold

2.

Intake manifold gasket

A.

Refer to Removal and Installation
