Exploded View

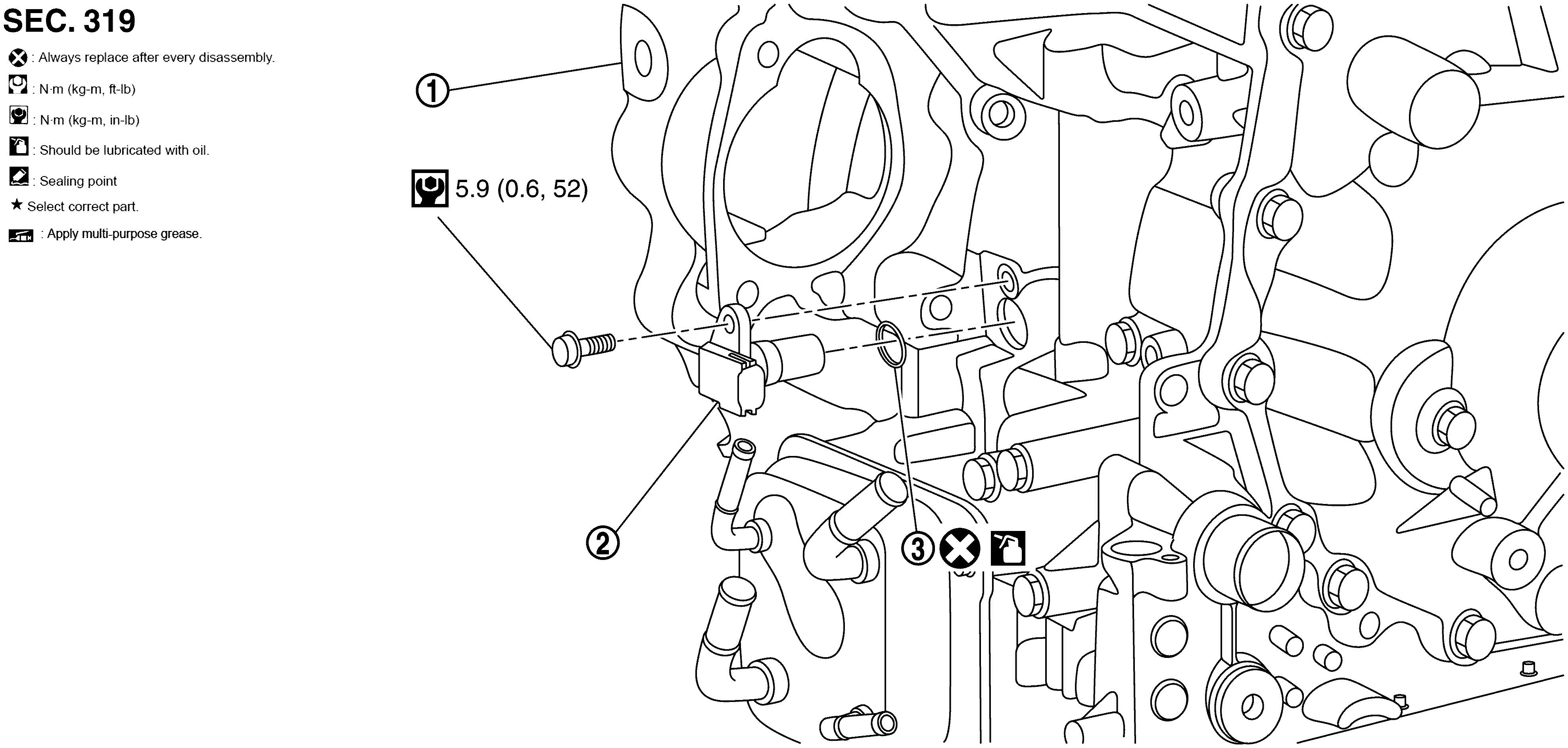

Fig 1: Input Speed Sensor Components With Torque Specification
GNSJSDIA3619GB-619Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transaxle assembly

2.

Input speed sensor

3.

O-ring
