Exploded View

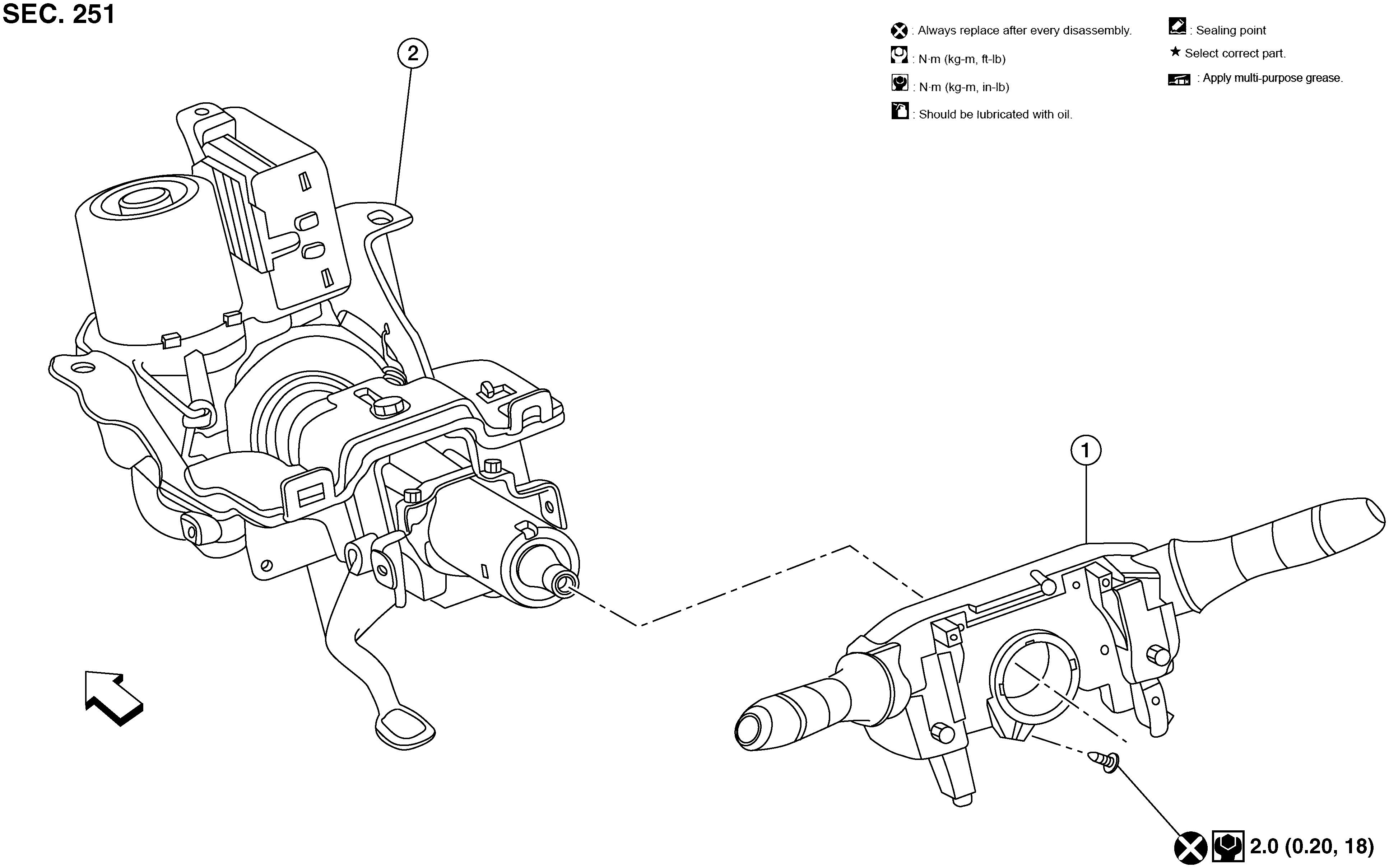

Fig 1: Combination Switch Components With Torque Specification
GNSAWMIA1742Z-742Courtesy of NISSAN NORTH AMERICA, INC.

1.

Combination switch

2.

Steering column

SYMBOL

Front
