Exploded View

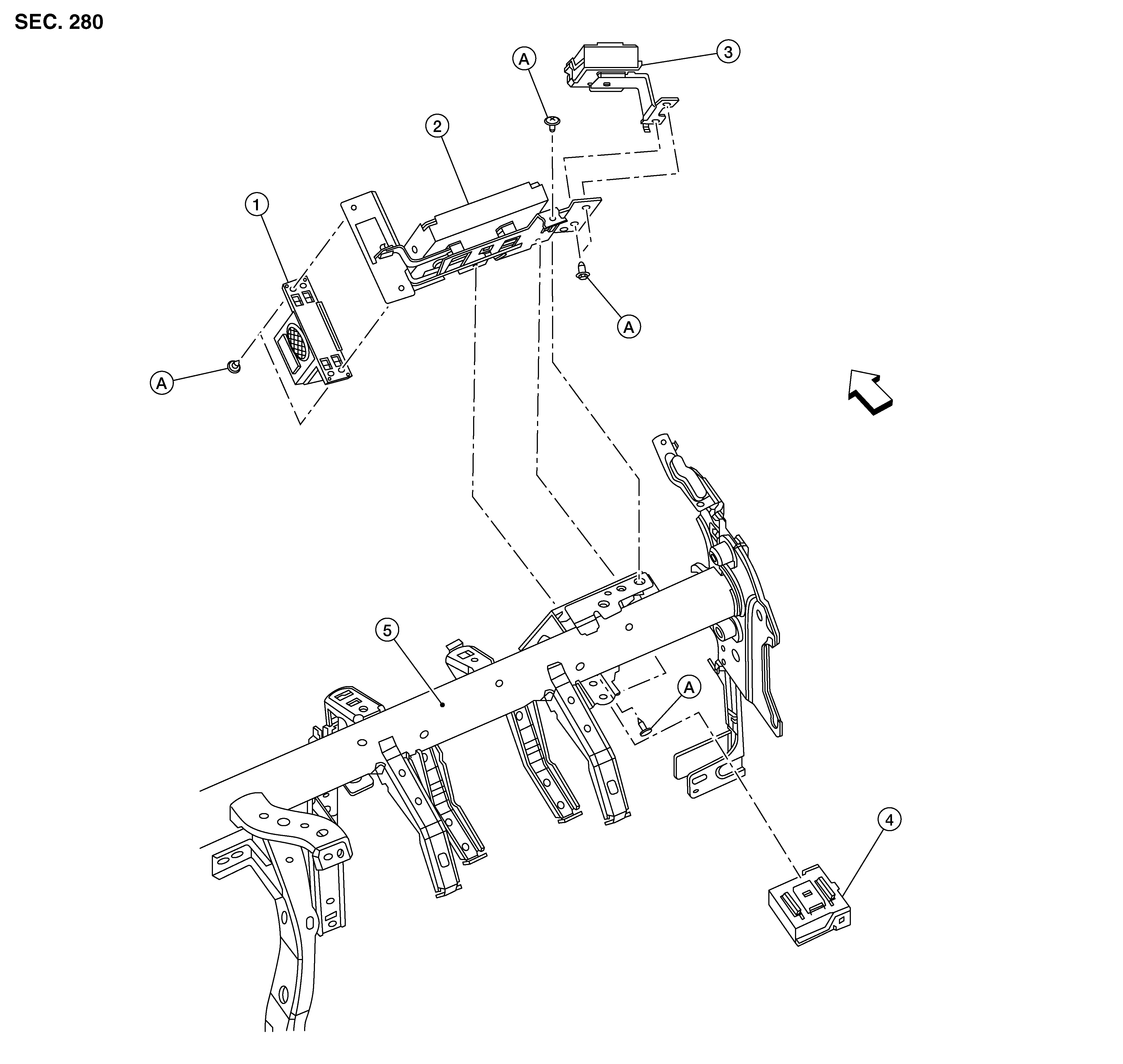

GNSALOIA06Z-006Courtesy of NISSAN NORTH AMERICA, INC.

1.

Warning systems buzzer

2.

Around view monitor control unit

3.

ADAS control unit 2

4.

Chassis control module

5.

Steering member

A.

Screw

SYMBOL

Front

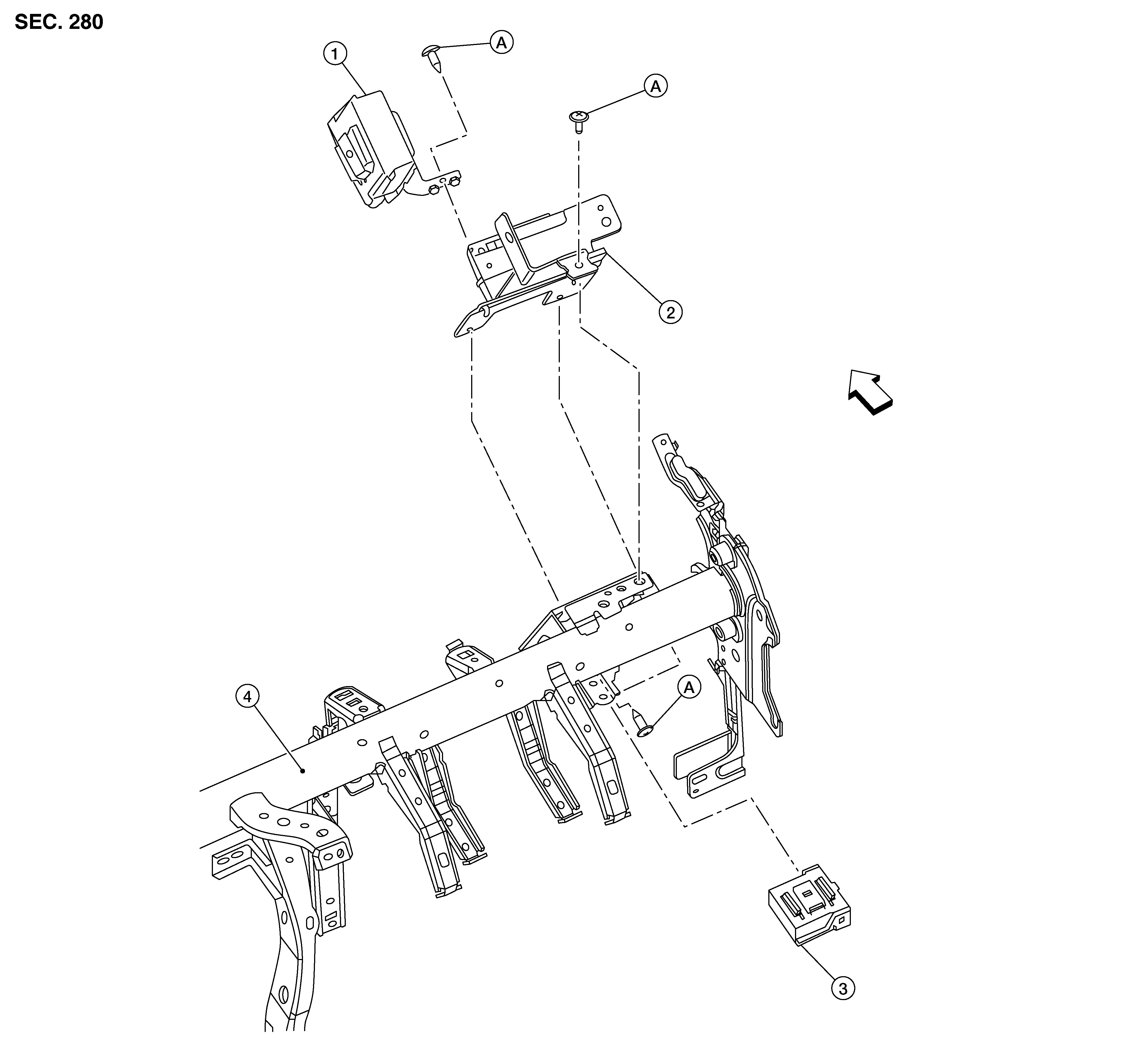

GNSALOIA07Z-007Courtesy of NISSAN NORTH AMERICA, INC.

1.

ADAS control unit 2

2.

Warning systems buzzer

3.

Chassis control module

4.

Steering member

A.

Screw

SYMBOL

Front
