Chassis Control Display: Design/Purpose
- The warning message is displayed on the vehicle information display when chassis control module detects an error in the chassis control system architecture. Please check the DTCs and investigate the cause of error.
- Each chassis control system information is displayed on the vehicle information display.
Warning Message
|
Design |
Warning Message |
|
-- |
Chassis Control System Error See Owner's Manual |
System Information
|
Design |
Description |
|

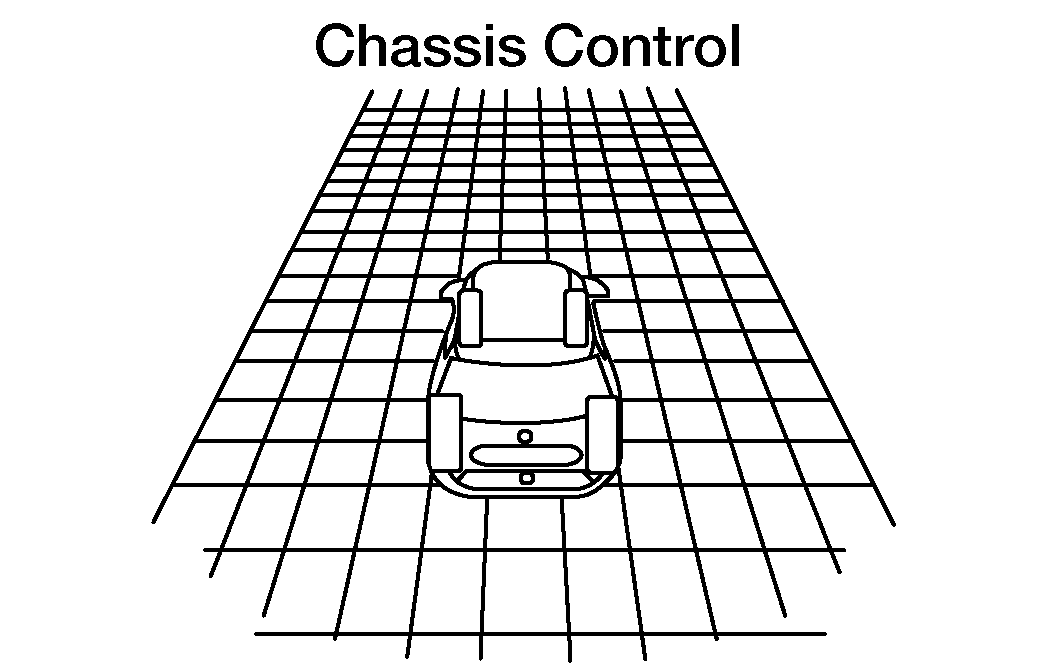

Intelligent Engine Brake inactive. Intelligent Ride Control inactive. Intelligent Trace Control inactive. |
|
|

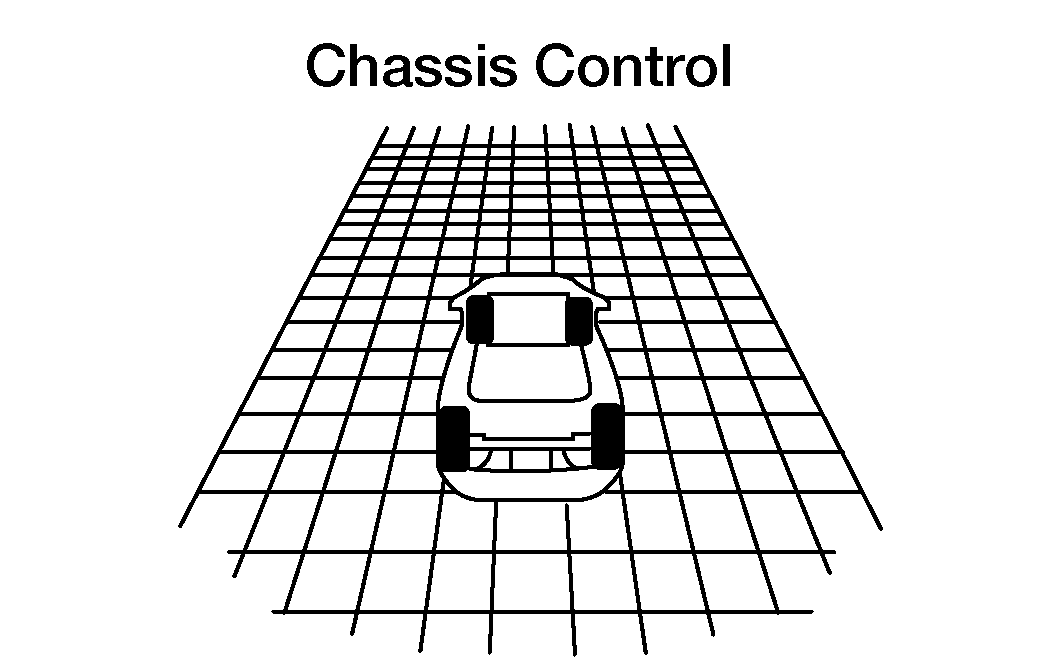

Intelligent Engine Brake (assist at corners). Intelligent Trace Control is active. (Steering angle is less than the specified angle). |
|
|

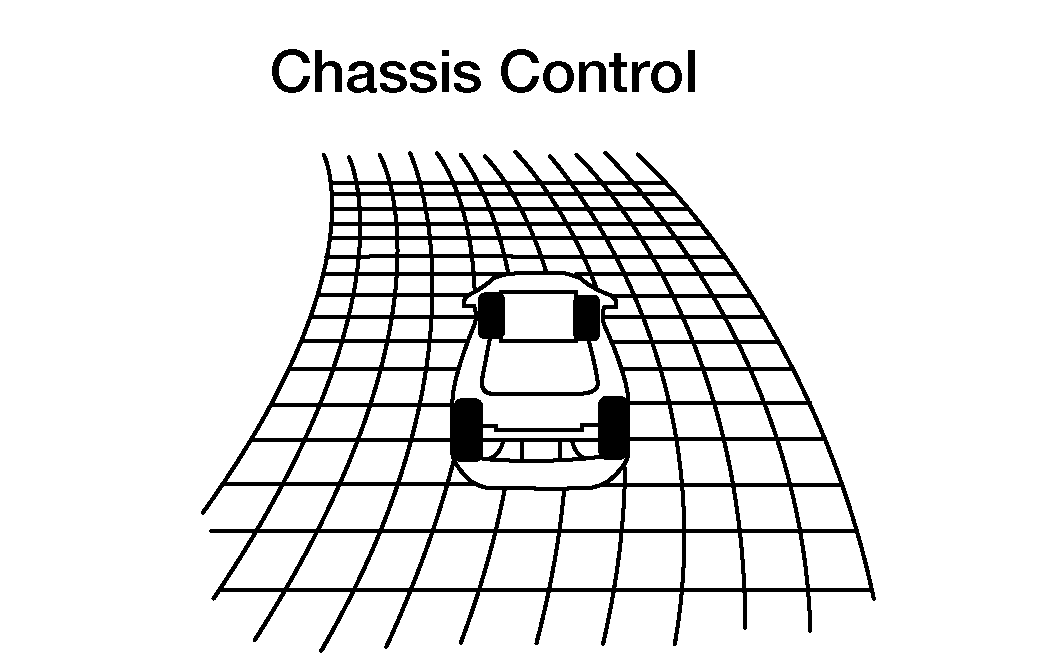

Intelligent Engine Brake (assist at corner). Intelligent Trace Control assist is active. (Steering angle is the specified angle or more in the leftward direction). |
|
|

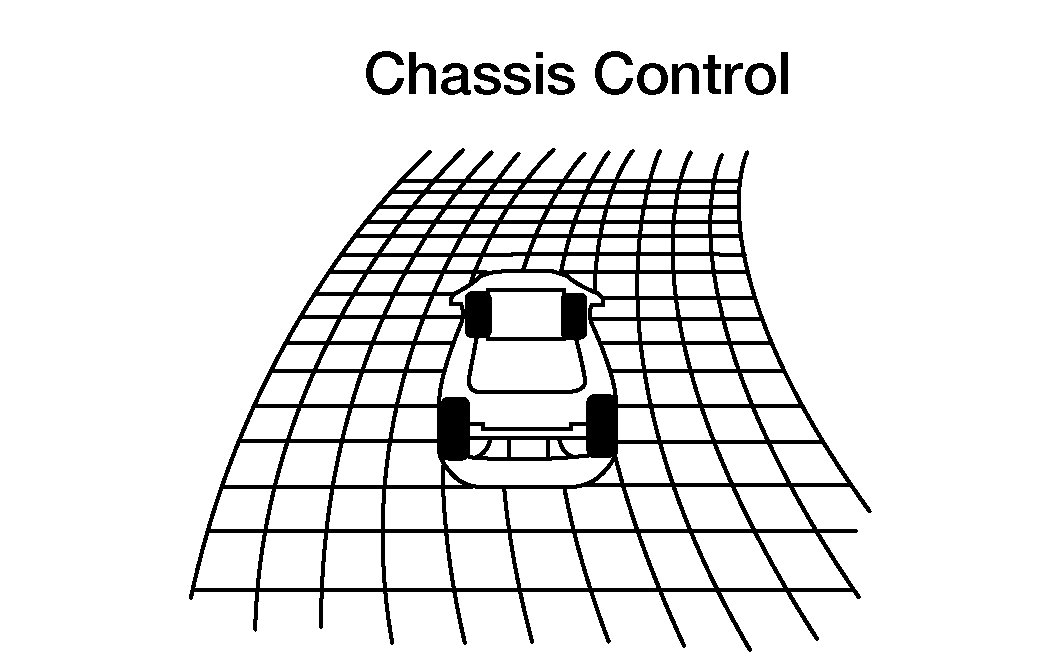

Intelligent Engine Brake (assist at corner). Intelligent Trace Control assist is active. (Steering angle is the specified angle or more in the rightward direction). |
|
|

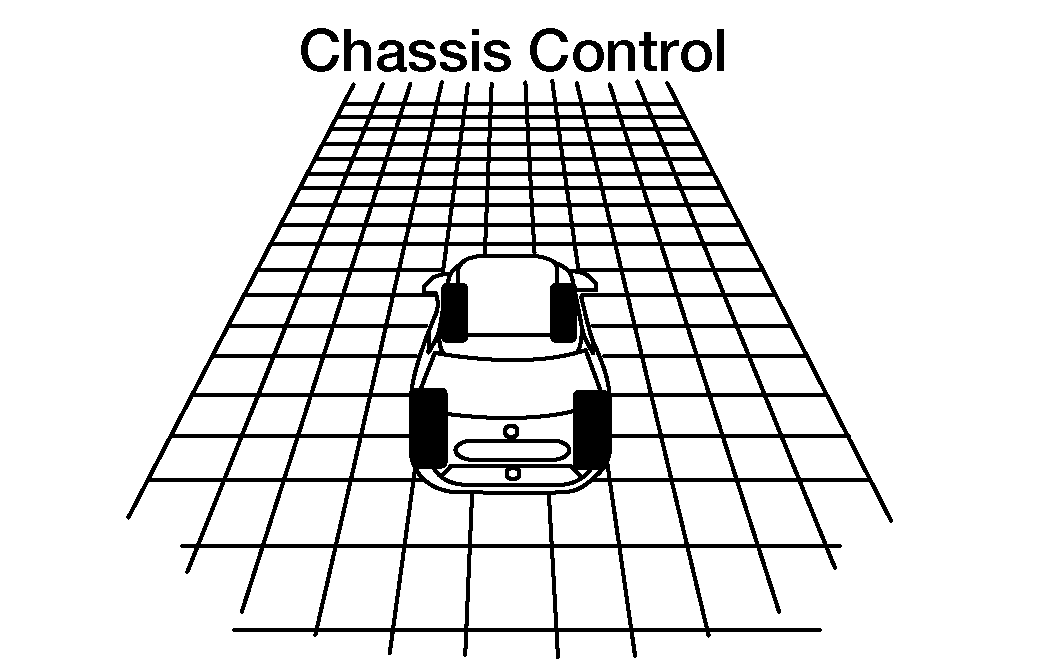

Intelligent Ride Control is active (assist). |
Indicator operating
- Intelligent Engine Brake: Refer to System Description - Intelligent Engine Brake .
- Intelligent Ride Control: Refer to System Description - Intelligent Ride Control .
- Intelligent Trace Control : Refer to System Description - Intelligent Trace Control .
