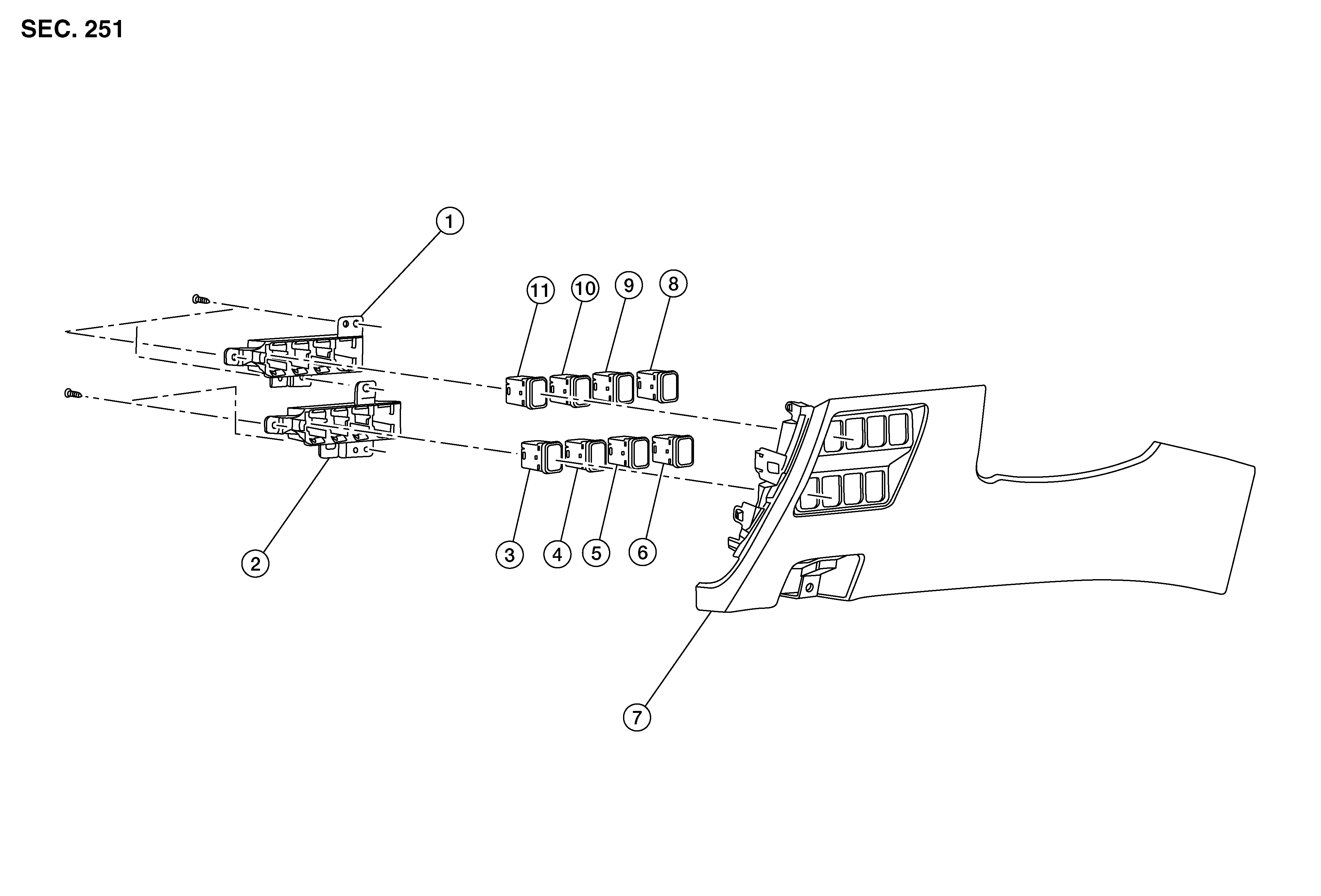

Exploded View

GNSALJIA1521Z-521

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper switch carrier	2.	Lower switch carrier	3.	Heated steering wheel switch (if equipped)
4.	AWD lock switch (if equipped)	5.	SPORT mode switch	6.	ECO mode switch
7.	Instrument lower panel LH	8.	Fuel lid door opener switch	9.	Automatic back door switch (if equipped)
10.	Lane Intervention switch (without ProPilot Assist) or Steering assist switch (with ProPILOT Assist)	11.	VDC OFF switch

GNSALJIA1521Z-521

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper switch carrier	2.	Lower switch carrier	3.	ECO mode switch
4.	Lane Intervention switch (without ProPilot Assist) or Steering assist switch (with ProPILOT Assist)	5.	AWD lock switch (if equipped)	6.	Mask
7.	Instrument lower panel LH	8.	Fuel lid door opener switch	9.	Automatic back door switch (if equipped)
10.	SPORT mode switch	11.	VDC OFF switch

GNSALJIA1521Z-521

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper switch carrier	2.	Lower switch carrier	3.	Heated steering wheel switch (if equipped)
4.	AWD lock switch (if equipped)	5.	Sport mode switch	6.	ECO mode switch
7.	Instrument lower panel LH	8.	Fuel lid door opener switch	9.	Automatic back door switch (if equipped)
10.	Lane Intervention switch (without ProPilot Assist) or Steering assist switch (with ProPILOT Assist)	11.	VDC OFF switch
