Exploded View

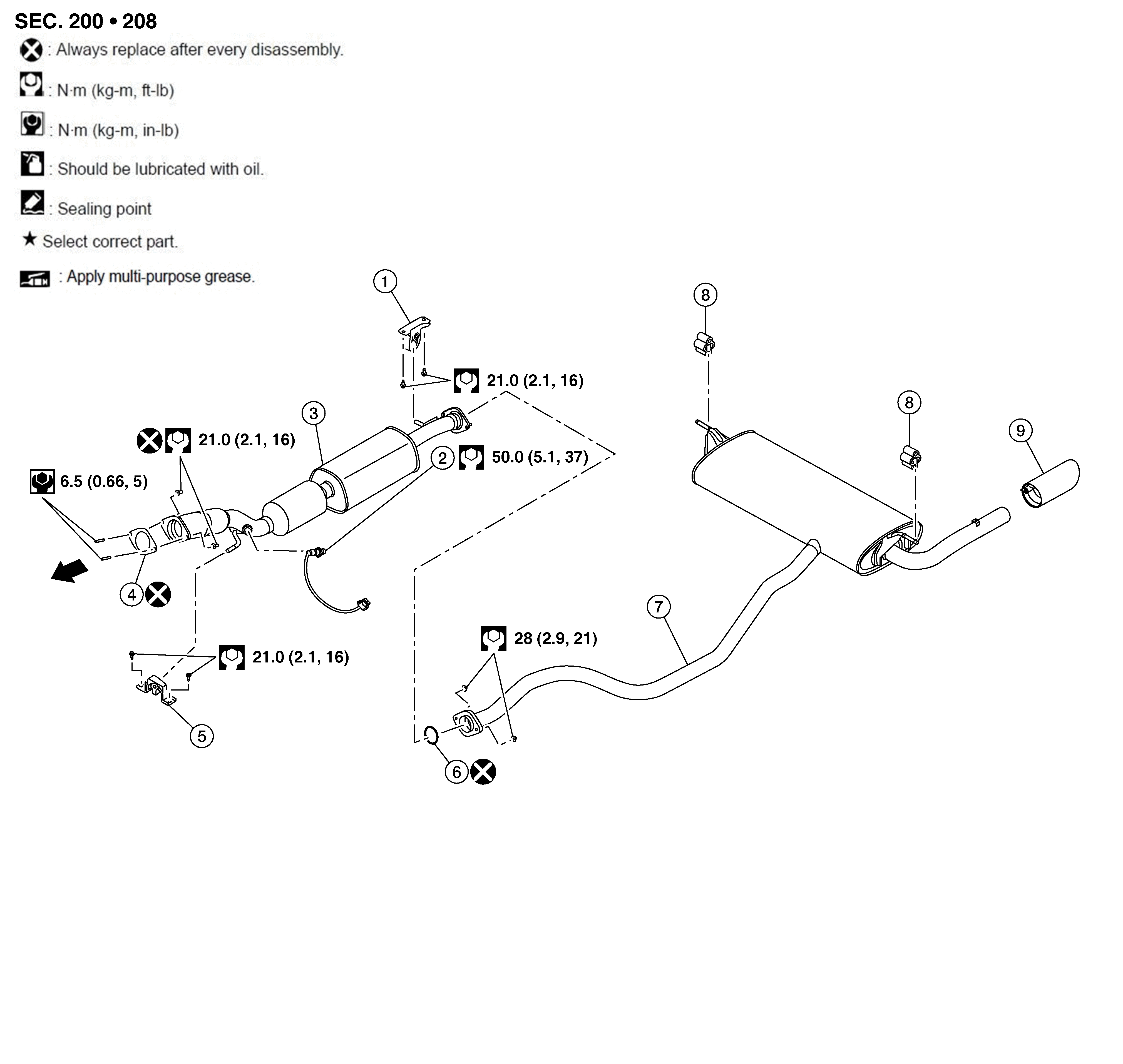

Fig 1: Exhaust System Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Mounting rubber	2.	Heated oxygen sensor 2	3.	Exhaust front tube
4.	Plate gasket	5.	Mounting rubber	6.	Seal bearing
7.	Exhaust main muffler	8.	Mounting rubber	9.	Exhaust finisher (if equipped)
A.	To exhaust manifold. Refer to Exploded View .

CAUTION: Do not remove the heated oxygen sensor 2 from the front exhaust tube unless necessary for replacement of the heated oxygen sensor 2. If the heated oxygen sensor 2 is removed from the front exhaust tube, it must be replaced with a new one.

NOTE: Heated oxygen sensor 2 replacement or removal from the front exhaust tube is not necessary when removing or repositioning the front exhaust tube. Disconnect the harness connector from the heated oxygen sensor 2 and remove or reposition the front exhaust tube and the heated oxygen sensor 2 as an assembly.
