Work Procedure

NOTE: Before starting, make sure:

On the CONSULT has been synchronized to the current date.
All CONSULT software updates (if any) have been installed.

PRINT CURRENT CALIBRATION DATA
1. Connect CONSULT.
2. Select "CALIB DATA" in "TRANSMISSION".
3. Print page 1 of 7.
  NOTE: This screen print is used for warranty documentation.
GO TO 2.
CHECK THE SERIAL NUMBER (PART 1)

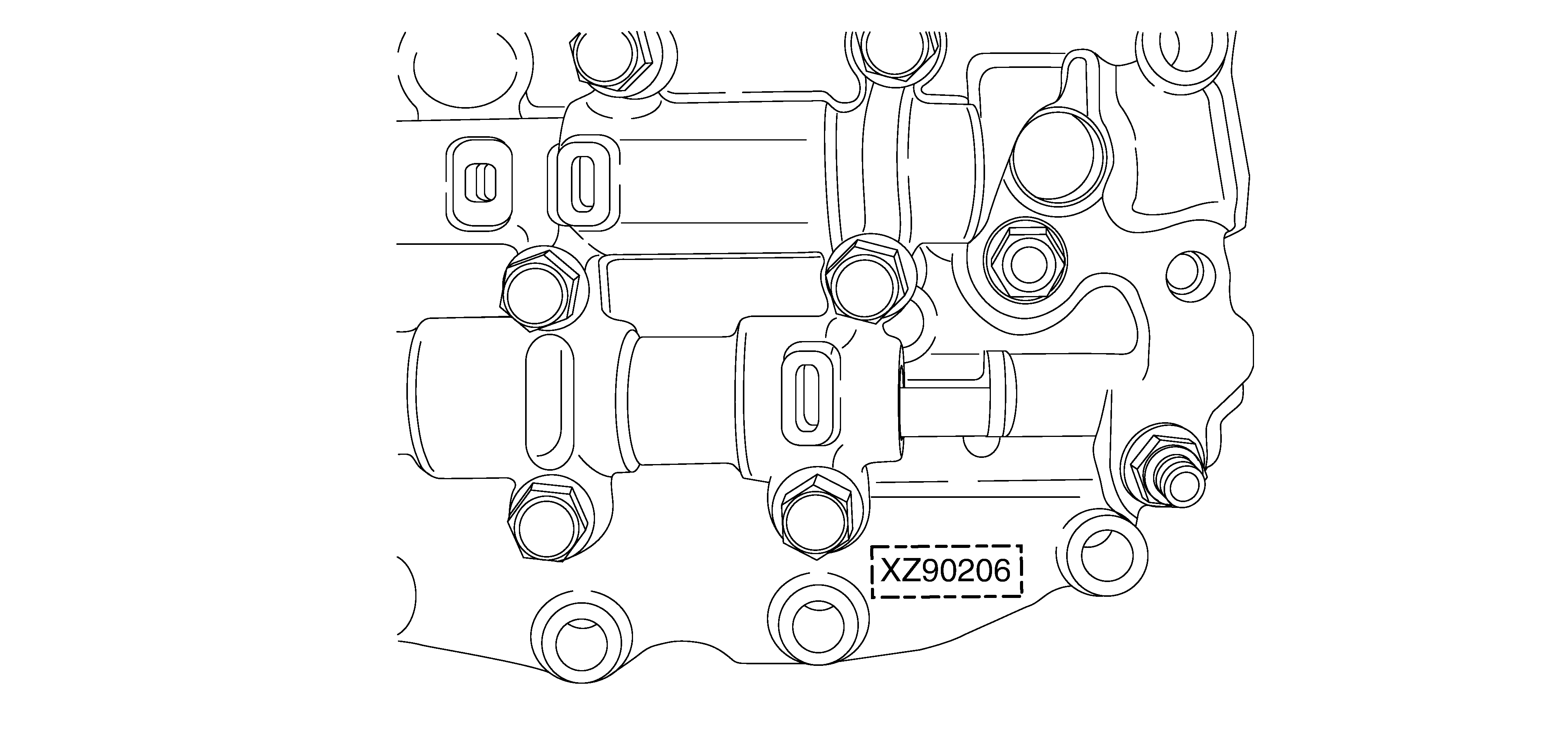

1. Write down the serial number (calibration file number) of the new control valve.
2. Compare the serial number (calibration file number) on the CD, QR code label and new control valve. All numbers must match.
Courtesy of NISSAN NORTH AMERICA, INC.

GO TO 3.
CHECK THE SERIAL NUMBER (PART 2)
1. Turn ignition switch ON.
2. Insert the supplied CD into CONSULT.
3. Select "Work Support" in "TRANSMISSION".
4. Select "WRITE IP CHARA - REPLACEMENT AT/CVT".
5. Select "OK" on the "Select IP characteristics data file" window.
6. Open the calibration file located on the supplied CD.
7. Confirm that the serial number (calibration file number) displayed on CONSULT screen matches the serial number (calibration file number) on the new control valve.
8. Select "Next" on the "WRITE IP CHARA - REPLACEMENT AT/CVT" Work Support screen.
GO TO 4.
WRITE THE DATA
NOTE: Write data of new solenoid in TCM according to the following instructions:
1. Turn ignition switch ON, engine OFF.
2. Press the brake pedal.
3. Shift the selector lever to the R position.
4. Depress the throttle pedal half way and hold, then press "START" on the CONSULT screen.
5. Write data to the TCM according to the instructions on the CONSULT screen.
  NOTE: When the calibration data has been written to the TCM, the current status will indicate "Complete".
6. Select "End".
GO TO 5.
PRINT NEW CALIBRATION DATA
1. Select "CALIB DATA" in "TRANSMISSION".
2. Print page 1 of 7.
  NOTE: This screen print is used for warranty documentation.
GO TO 6.
PERFORM CLUTCH POINT LEARNING
Perform Clutch Point Learning. Refer to Description .

GO TO 7.
PERFORM SELECT LEARNING (DRIVE/REVERSE LEARNING)
NOTE: Always perform Clutch Point Learning before Select Learning.

Perform Select Learning. Refer to Work Procedure .

GO TO 8.
ERASE CVT FLUID DEGRADATION LEVEL DATA
1. Select "WORK SUPPORT" in "TRANSMISSION".
2. Select "CONFORM CVTF DETERIORTN".
3. Touch "Clear".
4. Clear any DTCs that may have set and then test drive the vehicle.
WORK END
