Exploded View

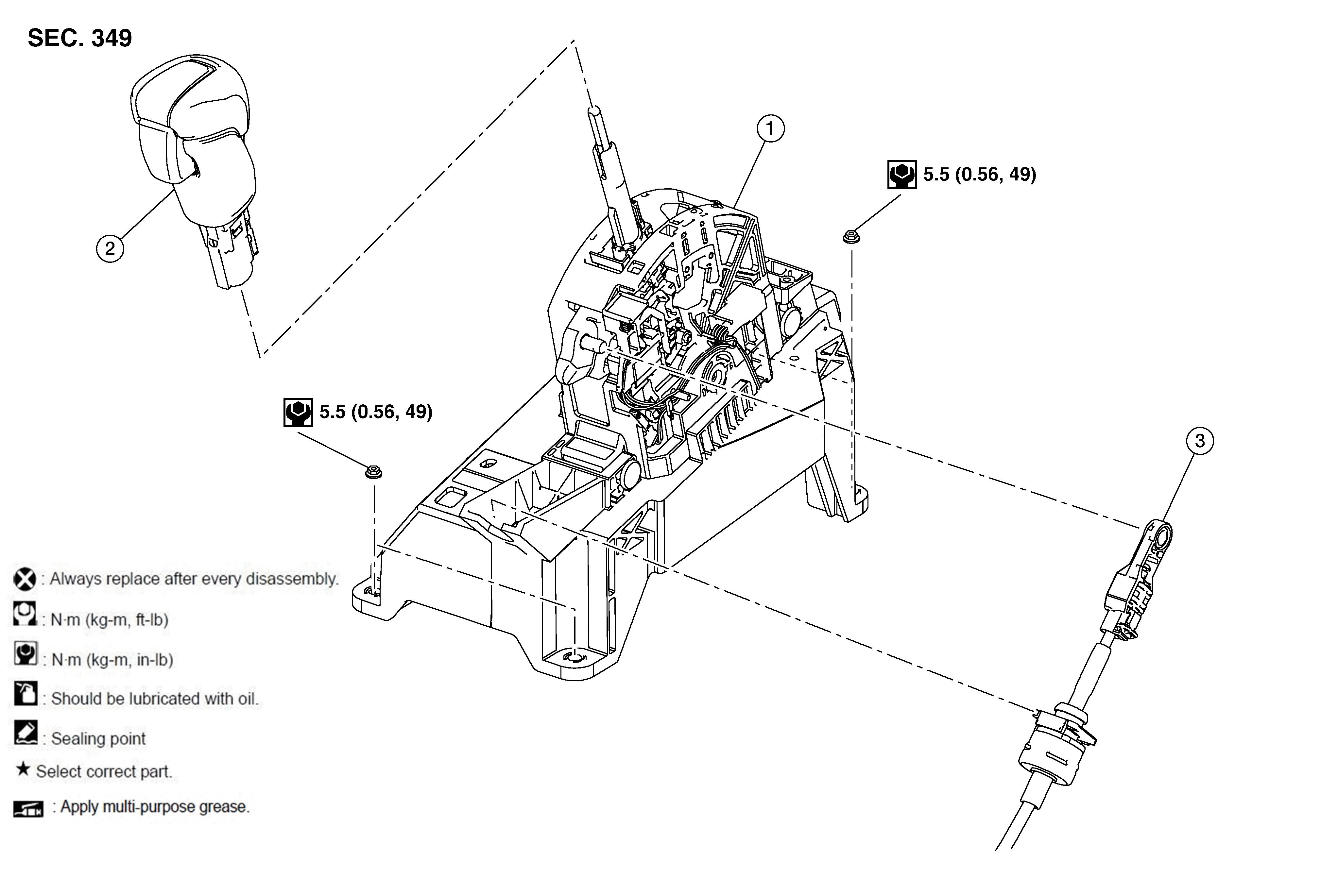

Fig 1: CVT Shift Selector Components With Torque Specification
GNSALDIA0809Z-809Courtesy of NISSAN NORTH AMERICA, INC.

1.

Selector lever

2.

Selector lever knob

3.

Control cable
