Exploded View

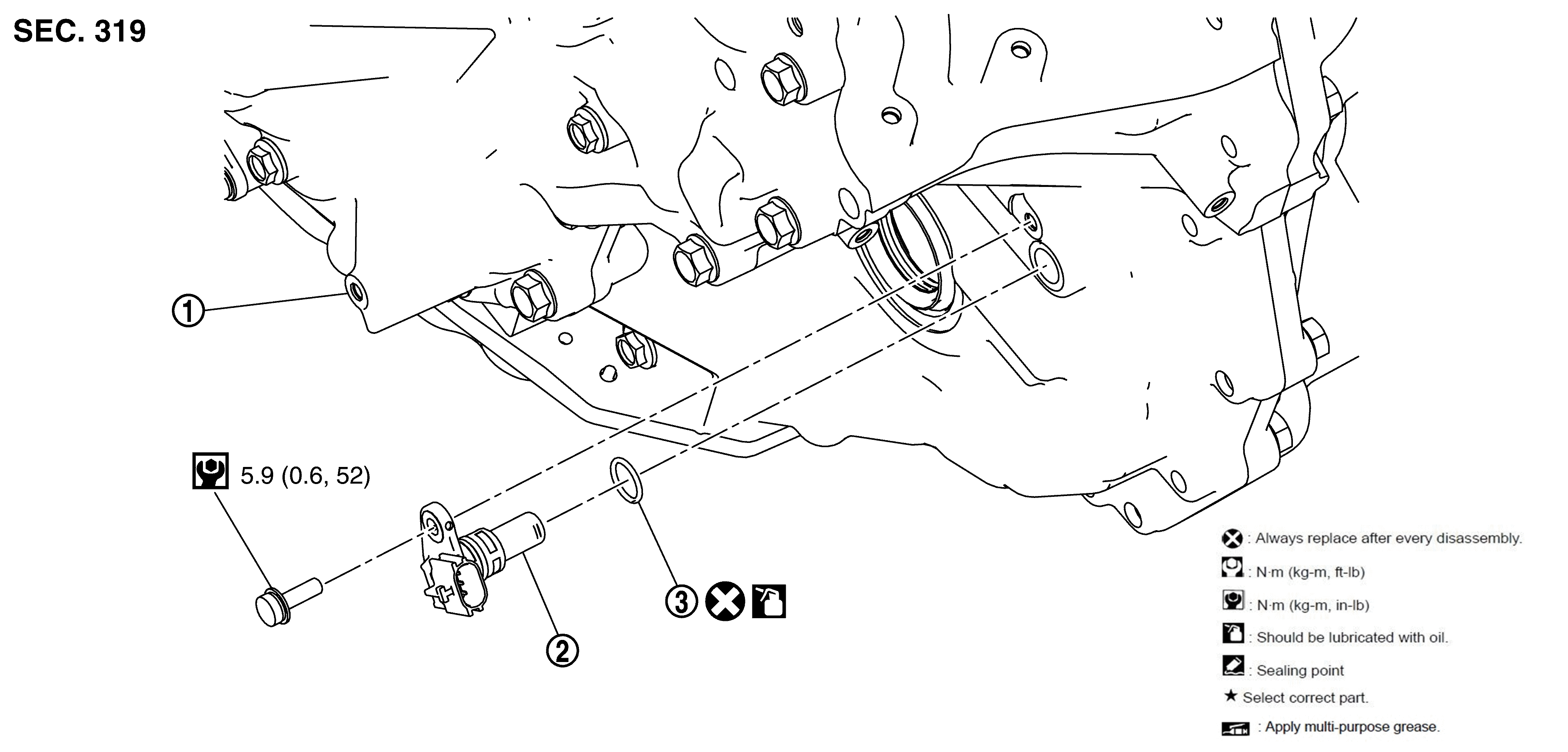

Fig 1: Output Speed Sensor Components With Torque Specification
GNSJSDIA5033GB-033Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transaxle assembly

2.

Output speed sensor

3.

O-ring
