Functions Within The System

The transmission range switch transfers select lever position to TCM as voltage signal.

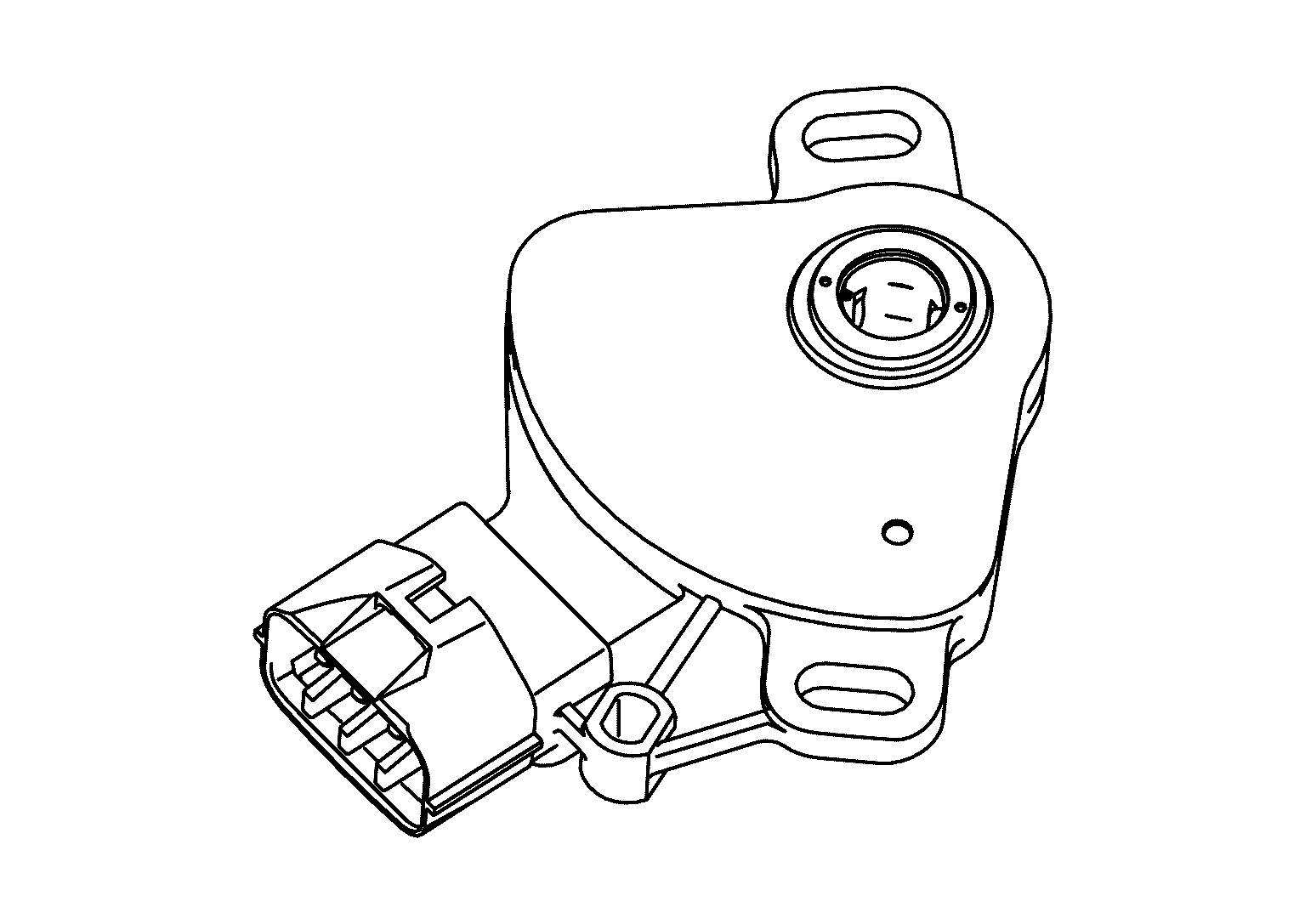

GNSJSDIA4184Z-184Courtesy of NISSAN NORTH AMERICA, INC.
