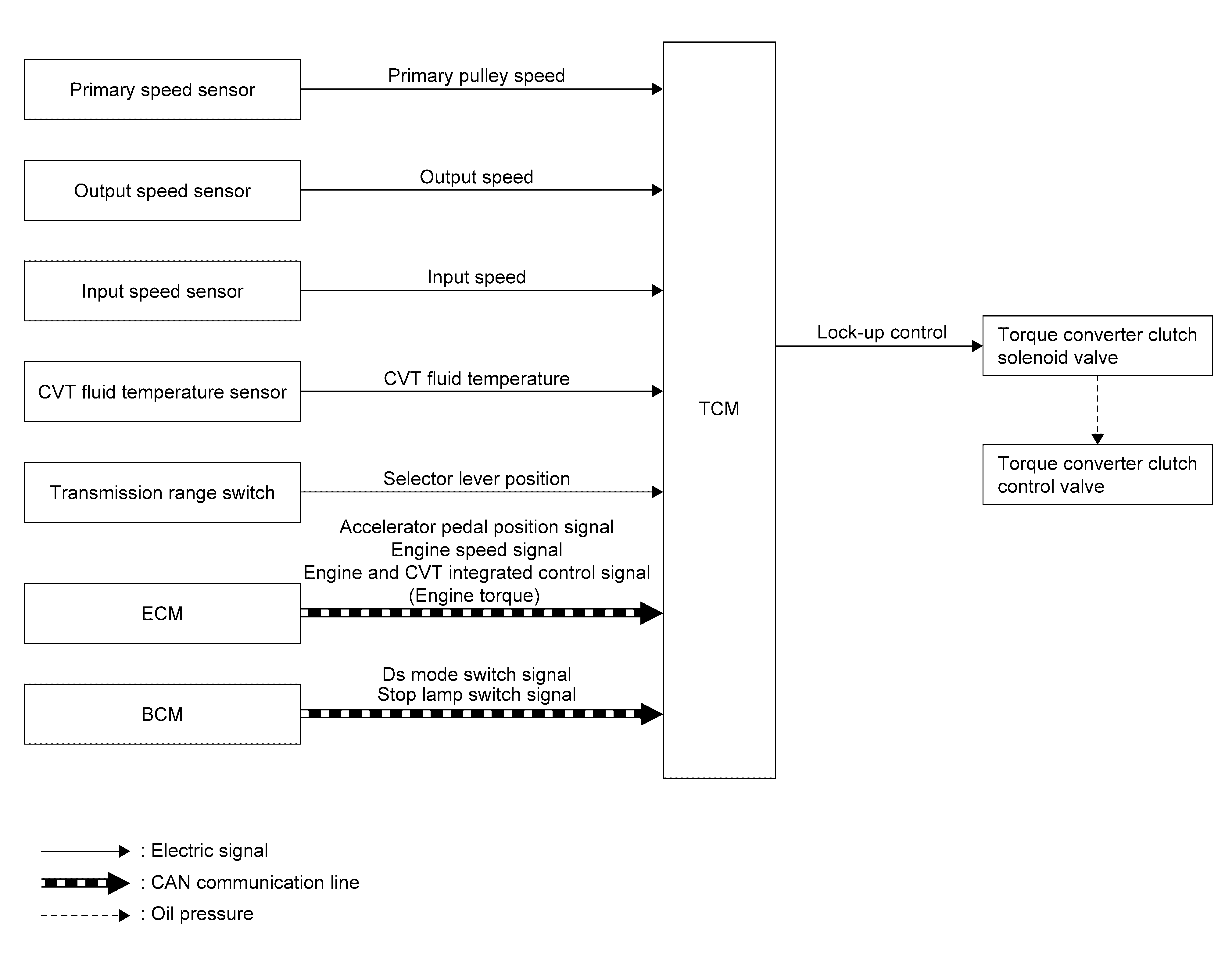

Home >> Nissan-Datsun >> 2020 >> Sentra S >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> System Description >> System >> Lock-Up Control >> System Description >> System Diagram
