CVT Position: Adjustment

  1. Shift the selector lever to the "P" position.
    CAUTION: Rotate the wheels at least a quarter turn and be certain the Park position mechanism is fully engaged.

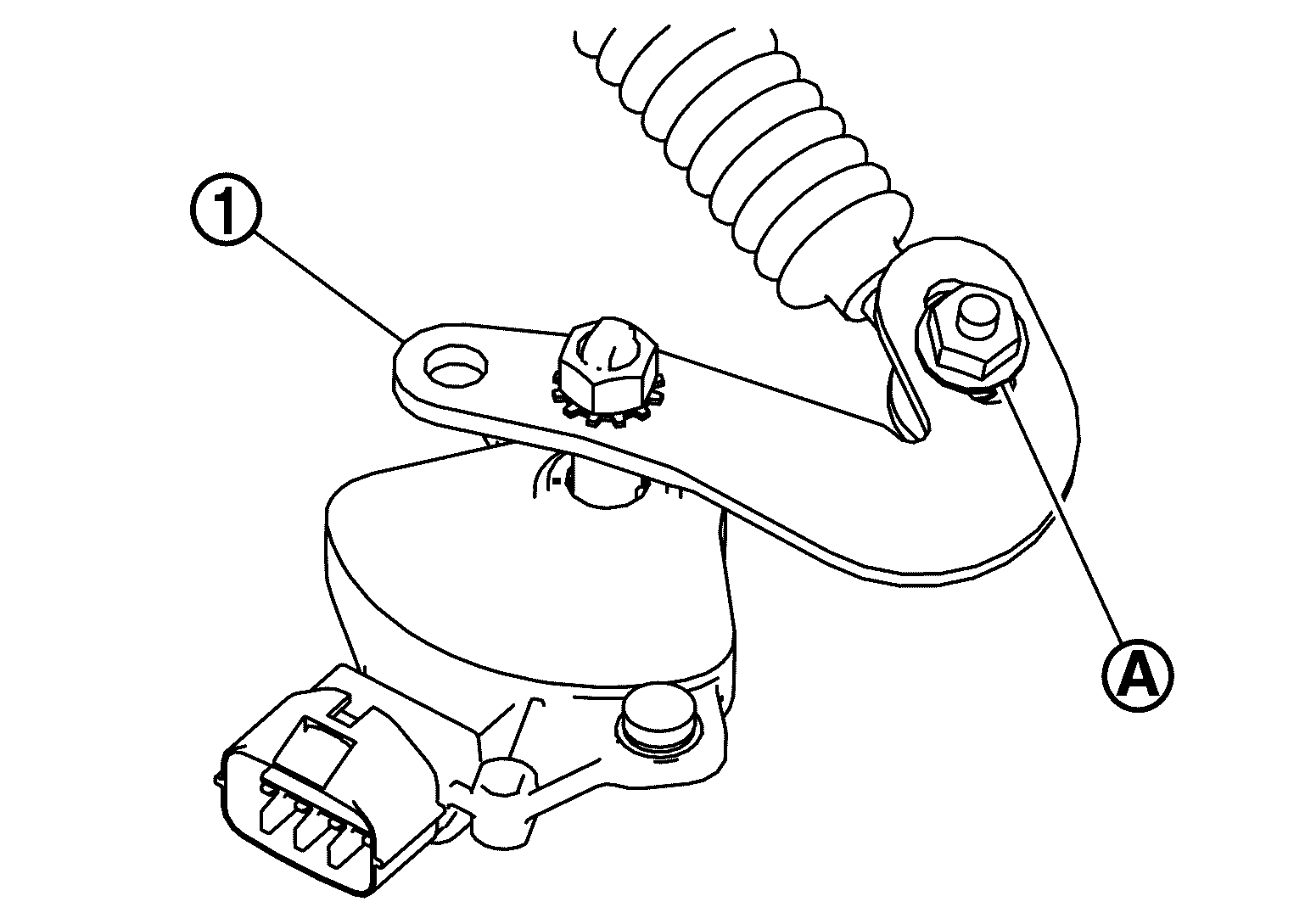

  2. Loosen nut (A) and set manual lever (1) to the "P" position.
    GNSJSDIA5177Z-177Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never apply force to the manual lever.
  3. Tighten the nut to the specified torque. Refer to Exploded View .
    CAUTION: In tightening, fix the manual lever.
