System Control Condition Display

Quickly push (less than 1.5 seconds) and release the ICC MAIN switch.

Condition

Display on ICC system display

Standby mode

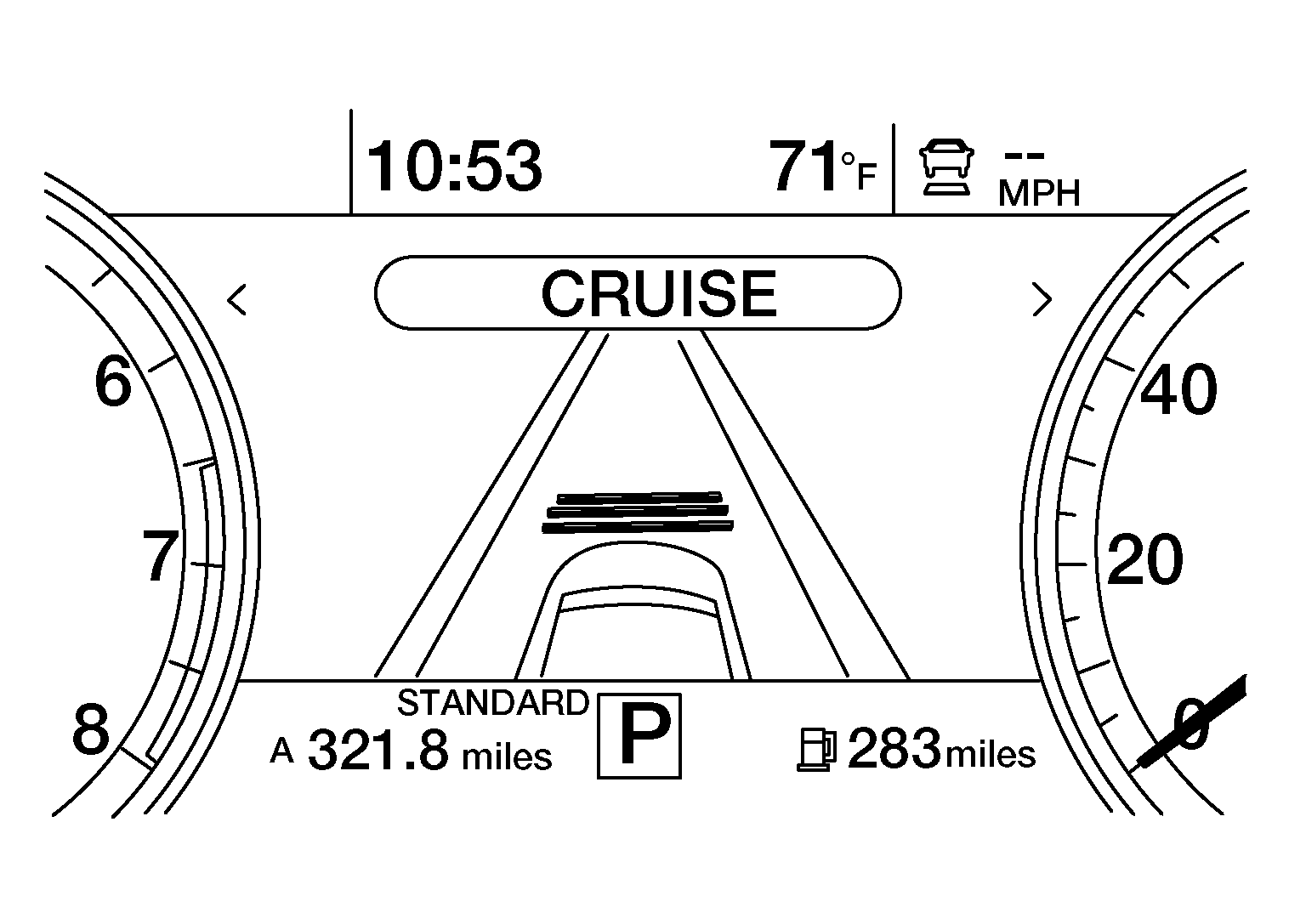

GNSDB122420Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

Without a vehicle ahead

Set vehicle distance (Long)

GNSDB122420Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Middle)

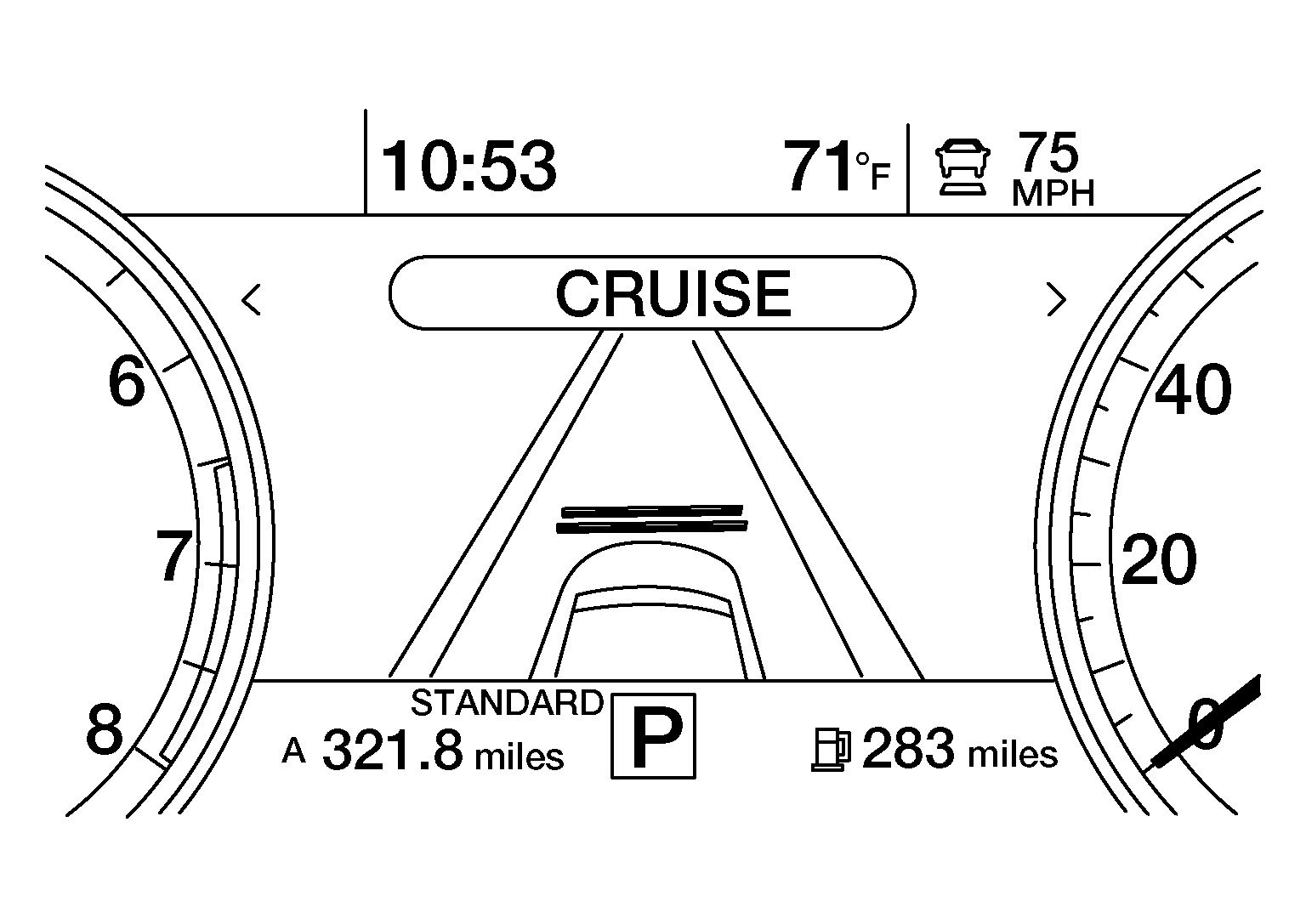

GNSALOIA0239Z-239Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Short)

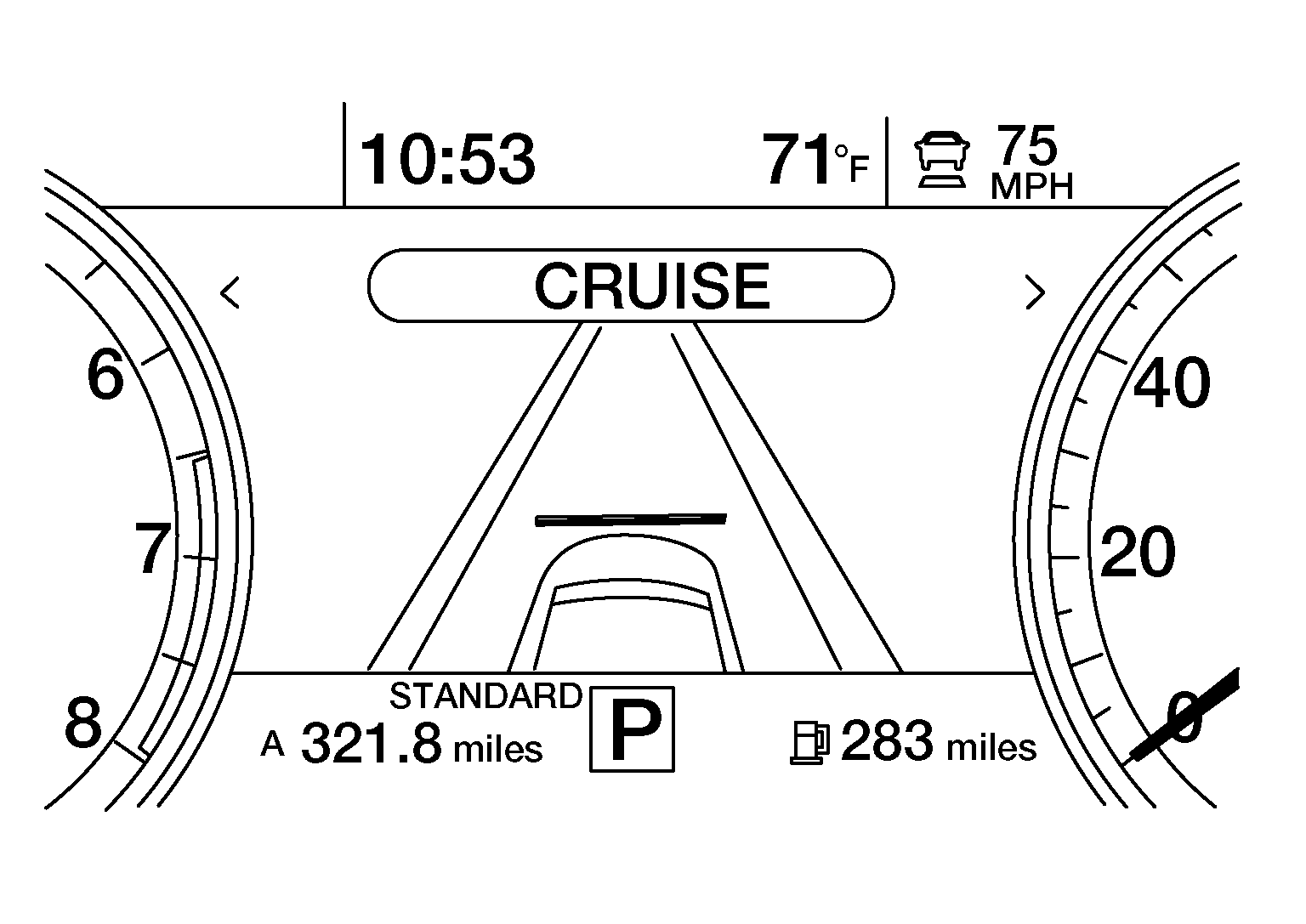

GNSALOIA0240Z-240Courtesy of NISSAN NORTH AMERICA, INC.

When the vehicle speed exceeds the set speed

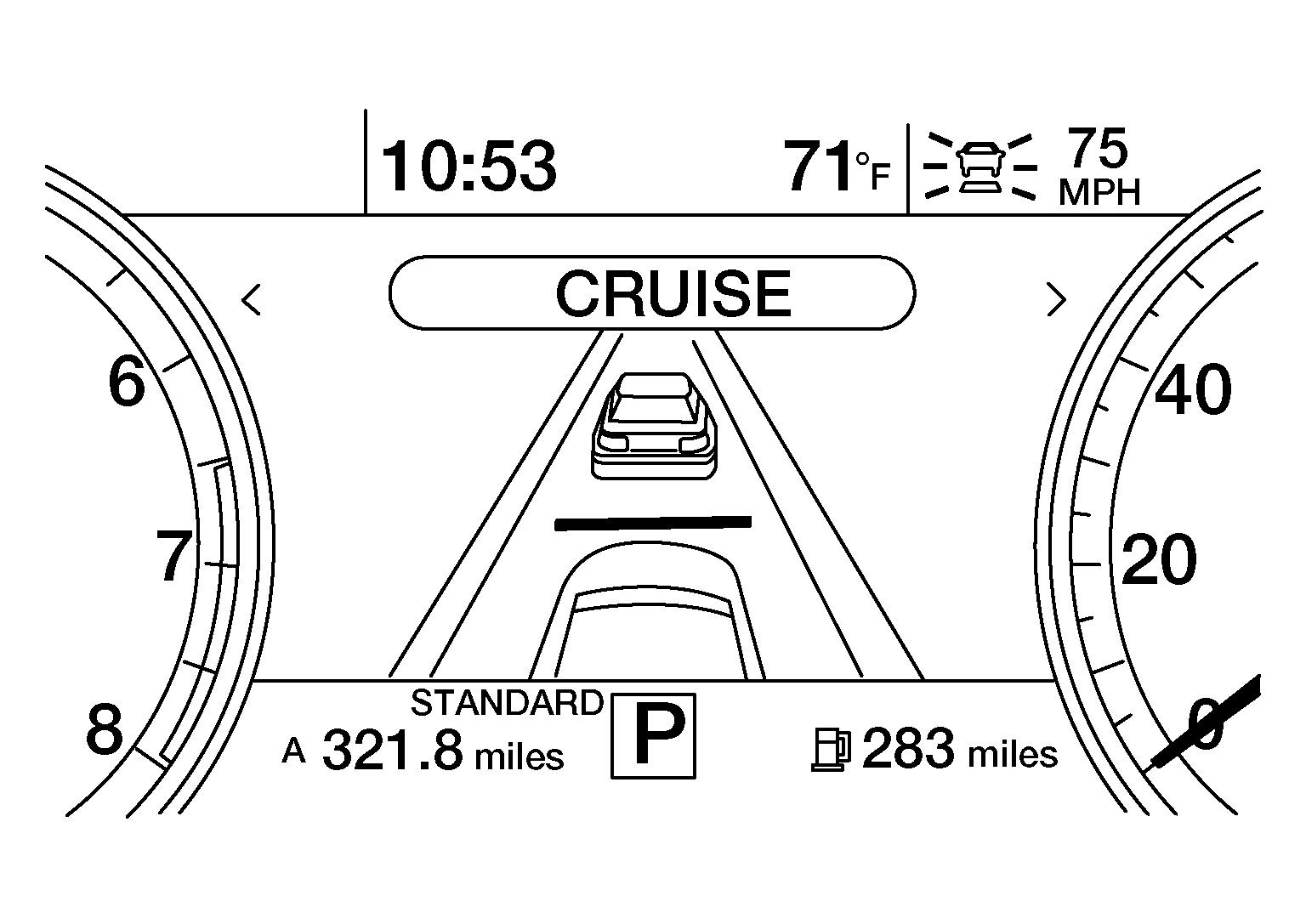

GNSALOIA0246Z-246Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

With a vehicle ahead

Set vehicle distance (Long)

GNSDB119380Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Middle)

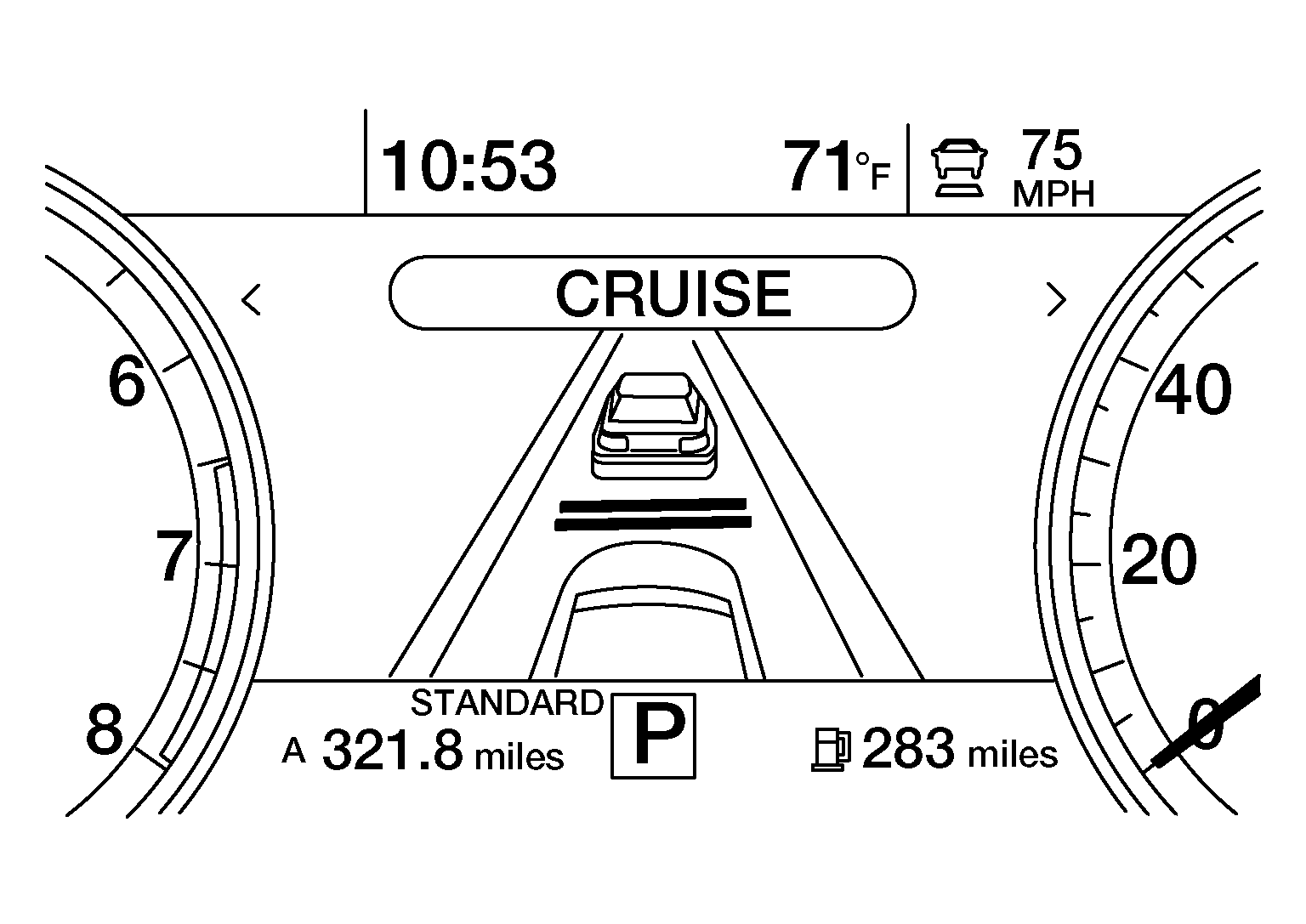

GNSALOIA0243Z-243Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Short)

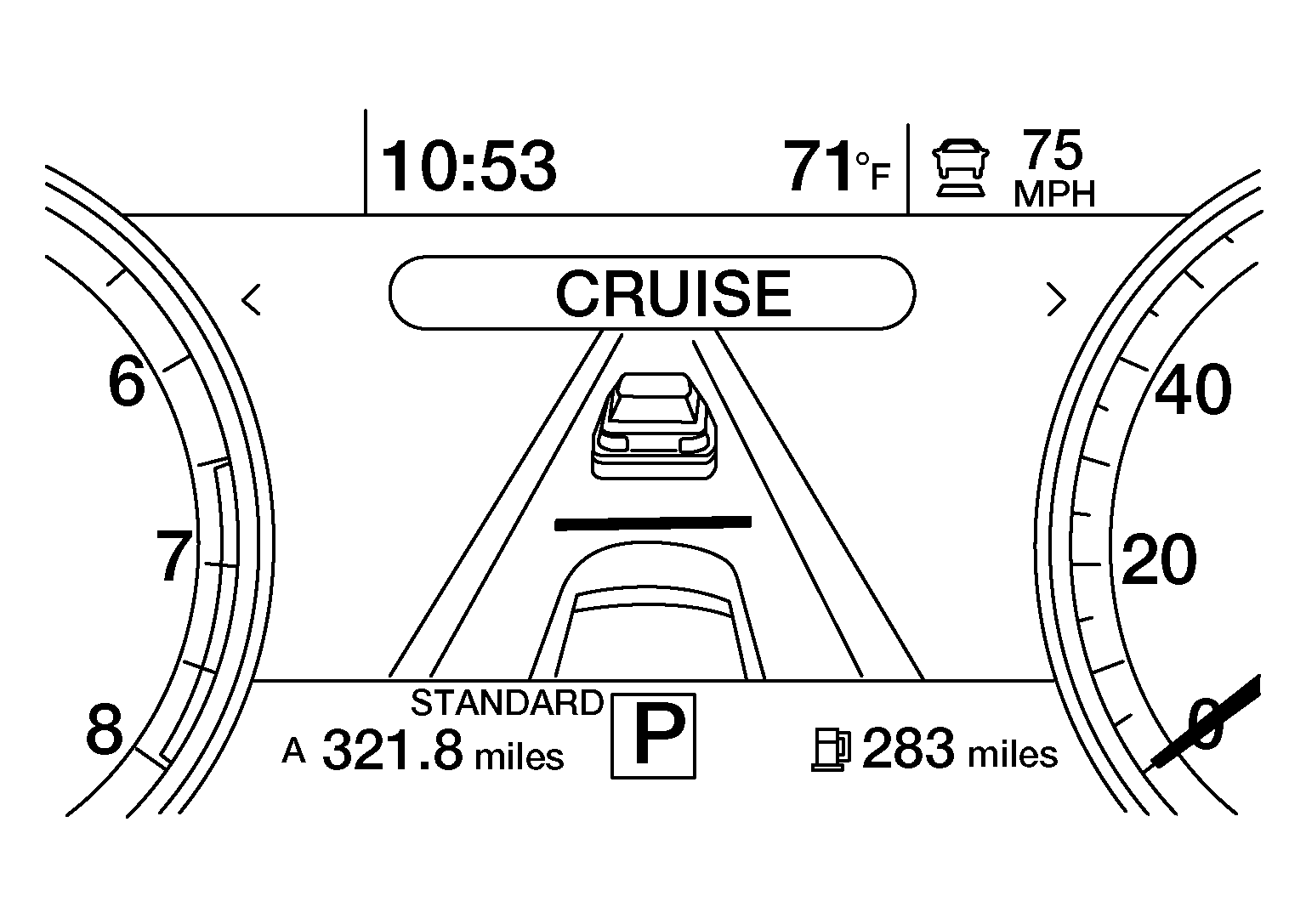

GNSALOIA0244Z-244Courtesy of NISSAN NORTH AMERICA, INC.

When the vehicle speed exceeds the set speed

GNSDB112283Courtesy of NISSAN NORTH AMERICA, INC.
