System Description: Notes

The active ride control function can be turned ON/OFF by turning the VDC OFF switch ON/OFF.

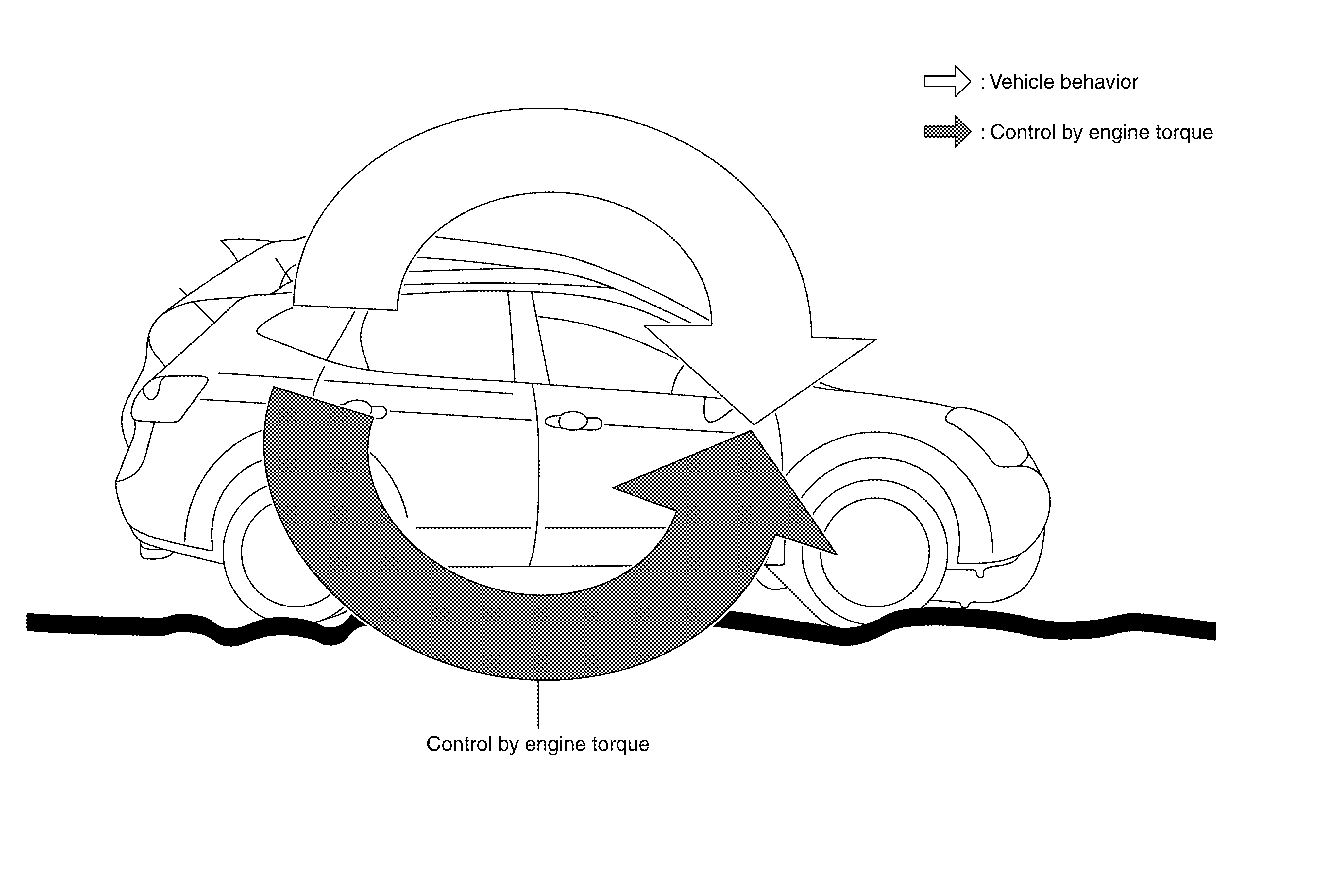

• Engine control - Enhances ride comfort by adding/subtracting engine torque in an effort to control the front and rear wheel load balance.

  Courtesy of NISSAN NORTH AMERICA, INC.

  • Engine torque is corrected according to driving conditions.

    Courtesy of NISSAN NORTH AMERICA, INC.

• Engine control - Enhances handling by adding/subtracting engine torque in an effort to control the front and rear wheel load balance.

  Courtesy of NISSAN NORTH AMERICA, INC.

  • Engine torque is corrected according to steering operation conditions.

    Courtesy of NISSAN NORTH AMERICA, INC.

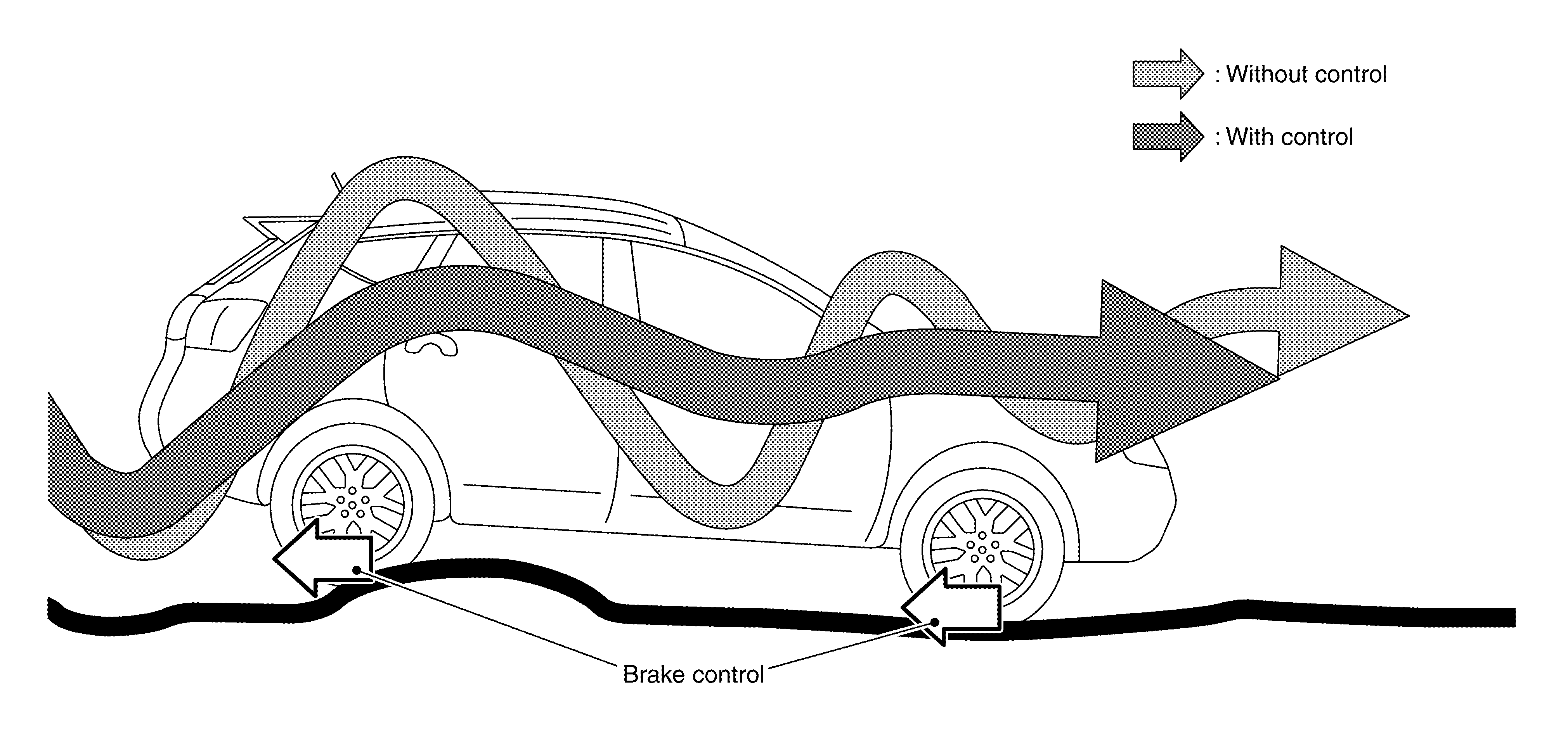

• Brake control - Enhances ride comfort by restraining upper body movement with small amount of brake control when driving on bumpy roads.

  Courtesy of NISSAN NORTH AMERICA, INC.

  • Brake fluid pressure (brake force) is controlled according to driving conditions.

    Courtesy of NISSAN NORTH AMERICA, INC.
