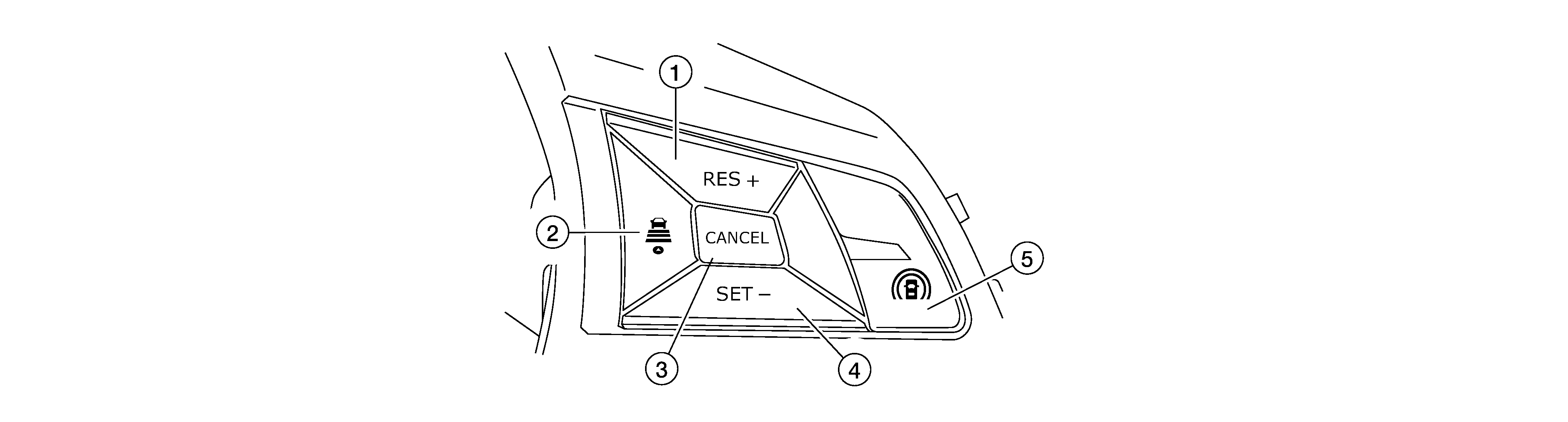

Intelligent Cruise Control Mode Function

No.

Switch name

Description

1.

RES switch

Resumes set speed or increases speed incrementally

• Push and hold the switch to increase the set speed by 5 km/h (5 MPH)
• Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)

(Press for less than 1.5 seconds)

2.

DISTANCE switch

Changes the following distance from: Long, Middle, Short

3.

CANCEL switch

Deactivates the system without erasing the set speed

4.

SET switch

Sets desired cruise speed or reduces speed incrementally

• Push and hold the switch to decrease the set speed by 5 km/h (5 MPH)
• Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH)

(Press for less than 1.5 seconds)

5.

ProPILOT Assist switch

Master switch to activate the system

(Press for less than 1.5 seconds)
