PUSH-BUTTON IGNITION SWITCH : Exploded View

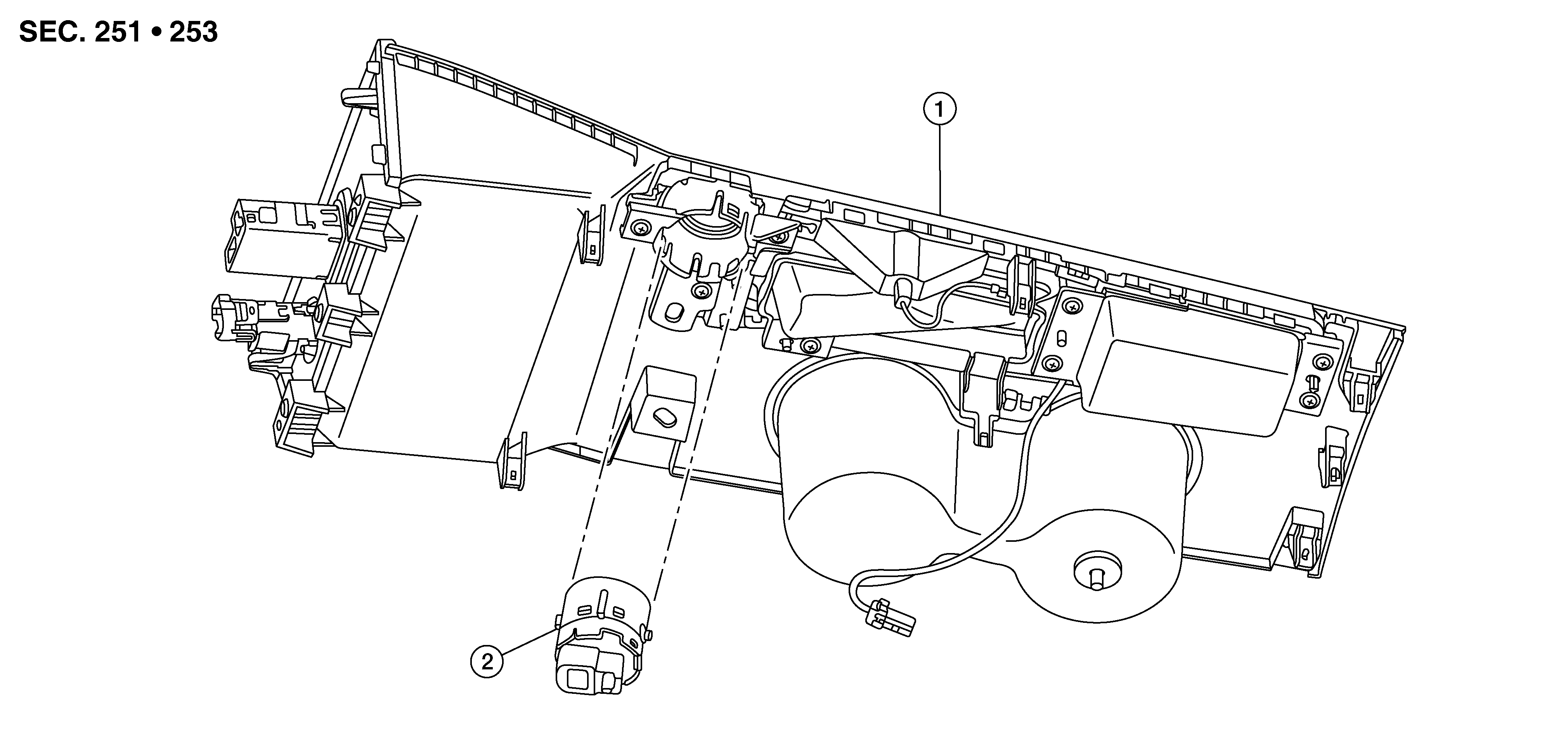

GNSAWMIA0093Z-093Courtesy of NISSAN NORTH AMERICA, INC.

1.

Shift selector finisher

2.

Push button ignition switch
