AV CONTROL UNIT : Exploded View

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

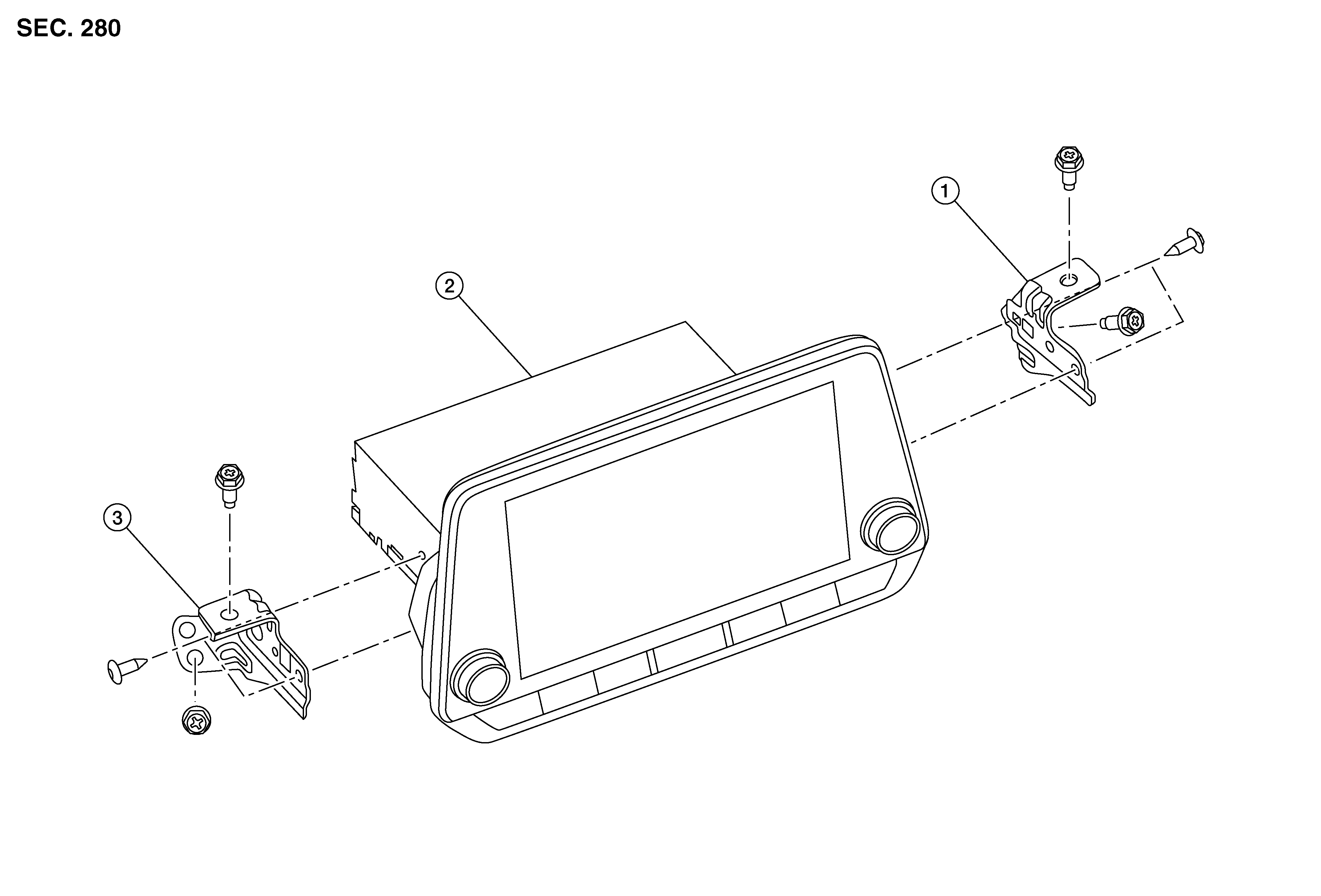

GNSALNIA0239Z-239Courtesy of NISSAN NORTH AMERICA, INC.

1.

AV control unit bracket (RH)

2.

AV control unit

3.

AV control unit bracket (LH)
