ACCELERATOR CONTROL SYSTEM : Exploded View
WARNING:
This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

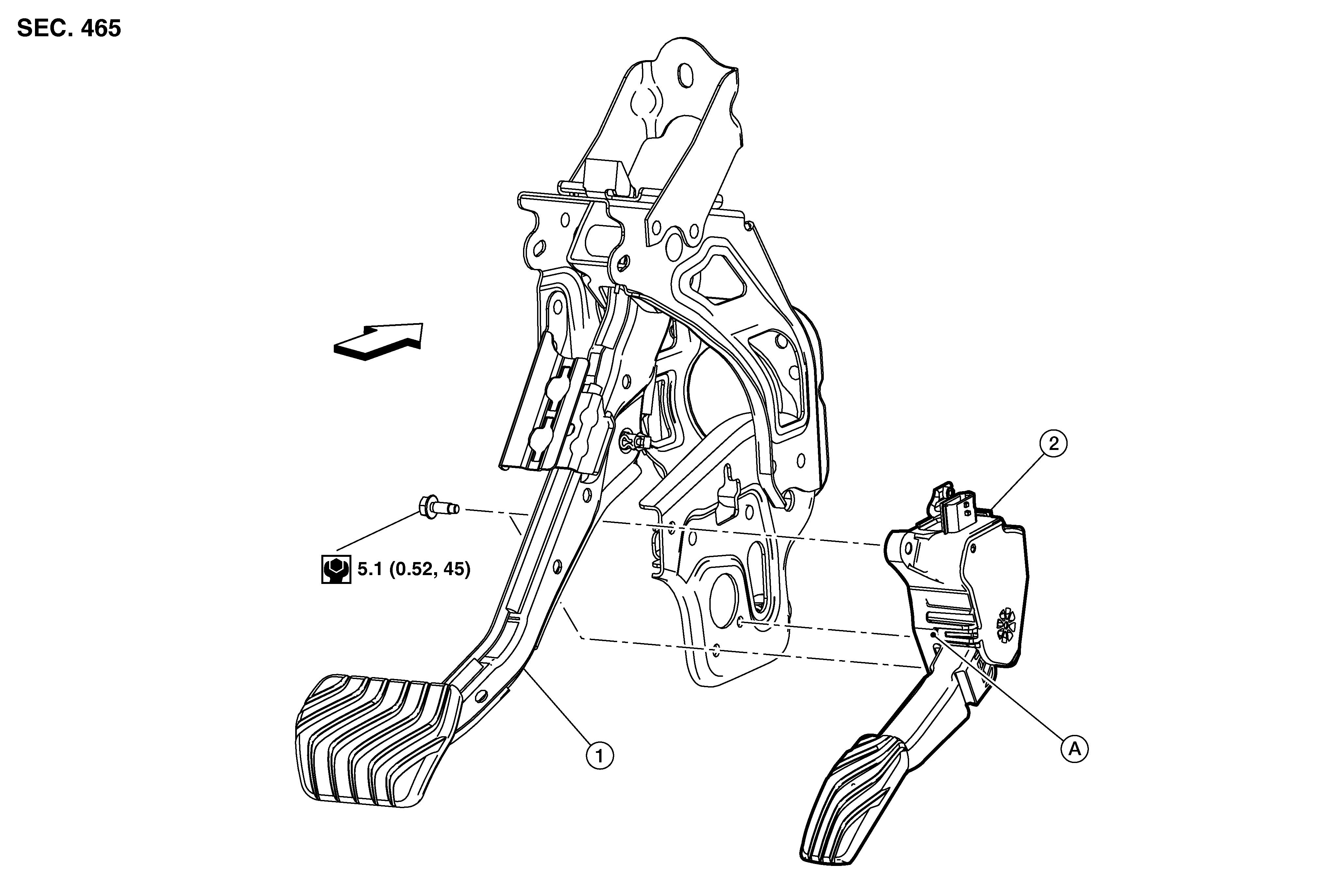

Fig 1: Accelerator Control System Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Brake pedal assembly
2.
Accelerator pedal assembly
A.
Locator pin
Front
