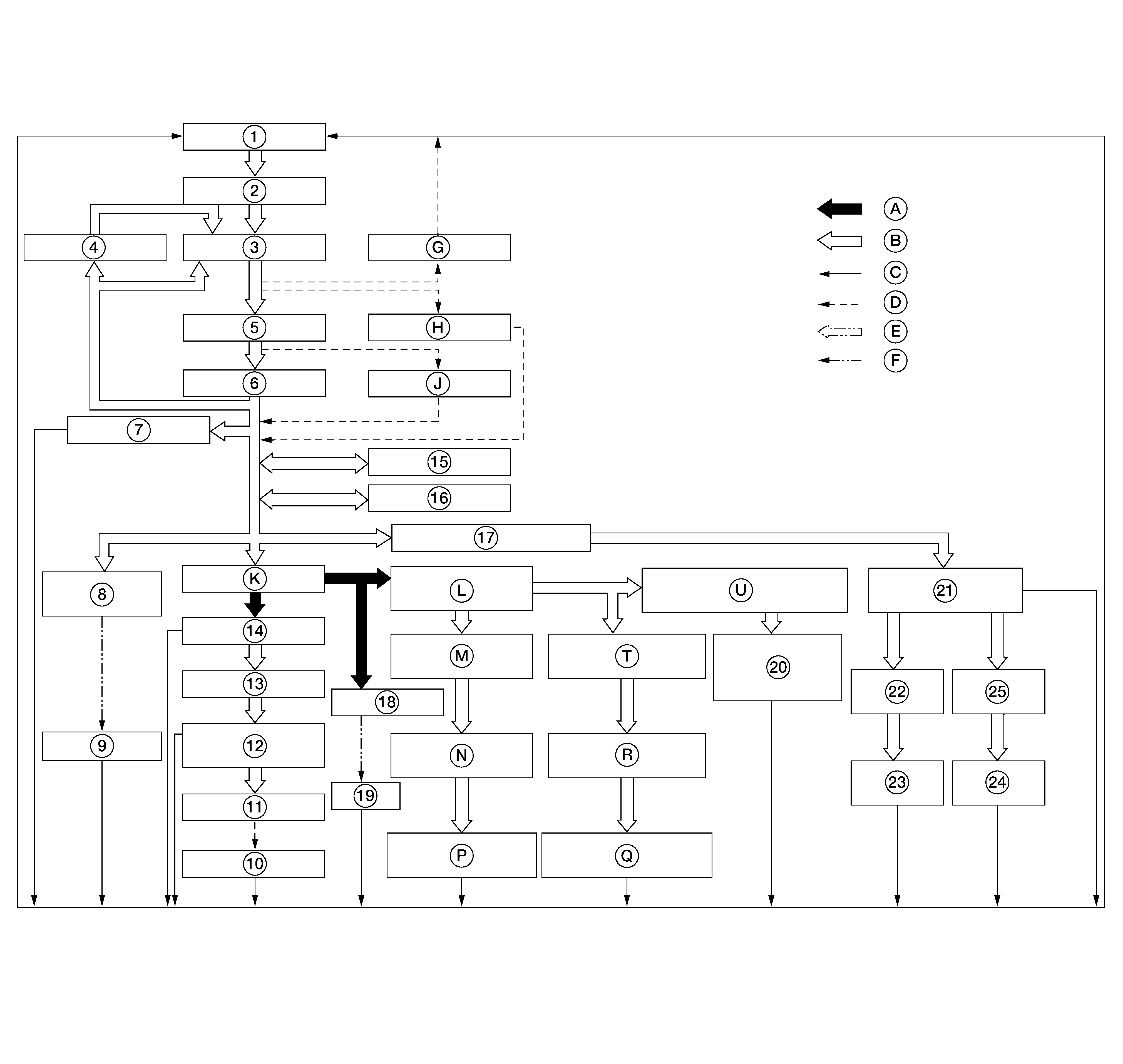

System Chart
|
1. |
Oil pan (lower) |
2. |
Oil strainer |
3. |
Oil pump |
|
4. |
Engine oil pressure control solenoid valve |
5. |
Oil cooler |
6. |
Oil filter |
|
7. |
Timing chain tensioner (primary) |
8. |
Timing chain oil jet |
9. |
Timing chain |
|
10. |
Piston |
11. |
Connecting rod |
12. |
Connecting rod bearing |
|
13. |
Crankshaft |
14. |
Main bearing |
15. |
Engine oil pressure sensor |
|
16. |
Engine oil temperature sensor |
17. |
Rear timing chain case |
18. |
Oil jet |
|
19. |
Piston |
20. |
Timing chain tensioner (secondary) |
21. |
Front timing chain case |
|
22. |
Valve timing control cover (bank 1) |
23. |
Exhaust camshaft sprocket (bank 1) |
24. |
Exhaust camshaft sprocket (bank 2) |
|
25. |
Valve timing control cover (bank 2) |
A. |
Main oil gallery |
B. |
Oil passage |
|
C. |
To oil pan |
D. |
Bypass |
E. |
Return oil passage |
|
F. |
Oil injection |
G. |
Safety valve |
H. |
Relief valve |
|
J. |
Relief valve (built into oil filter) |
K. |
Main oil gallery |
L. |
Cylinder head oil gallery |
|
M. |
Intake camshaft journal (No. 2) |
N. |
Camshaft oil passage |
P. |
Intake camshaft journal (No. 3, 4) |
|
Q. |
Exhaust camshaft journal (No. 2, 3, 4) |
R. |
Camshaft oil passage |
T. |
Exhaust camshaft journal (No. 1) |
|
U. |
Timing chain tensioner (secondary) oil gallery |
