Exploded View

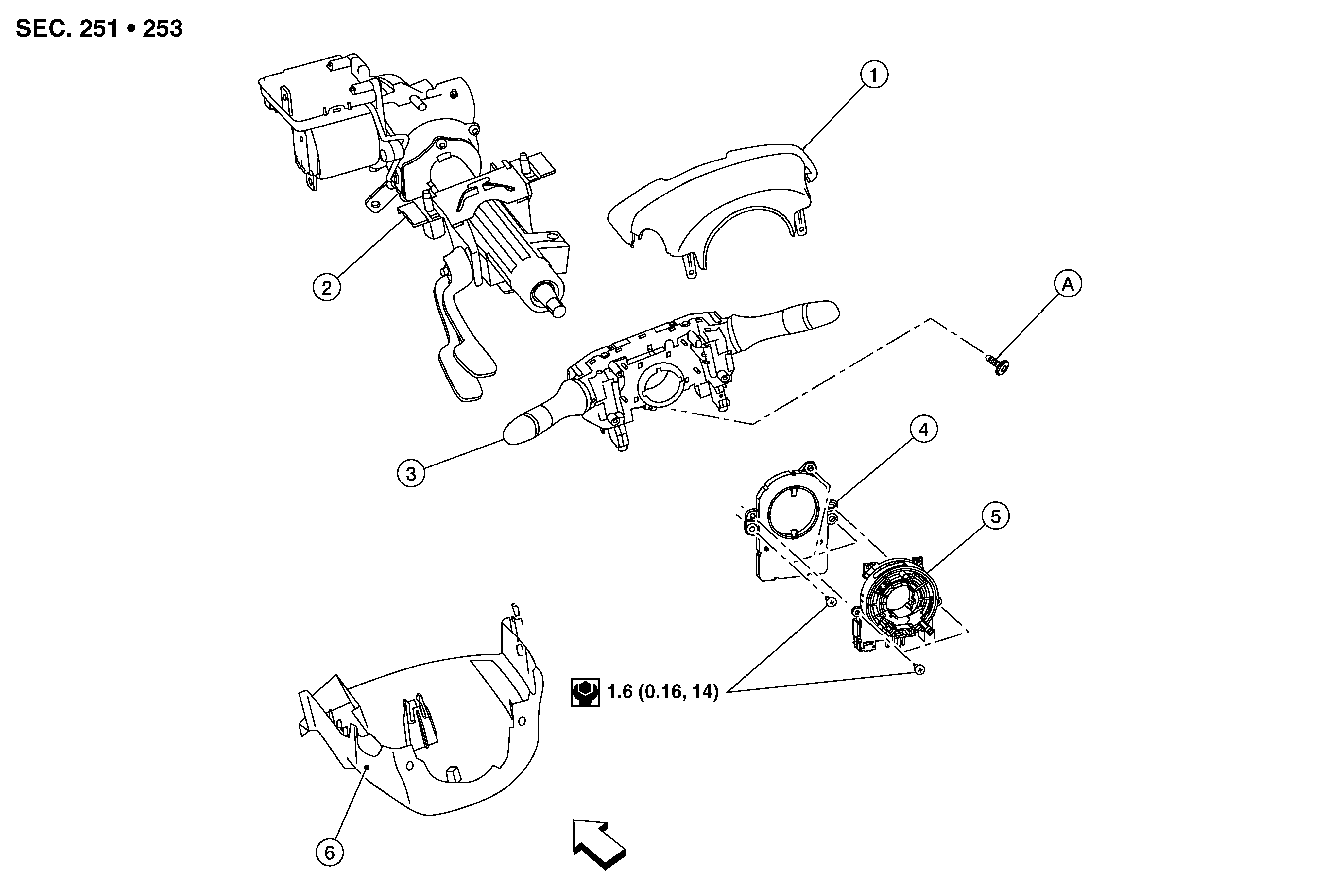

Fig 1: Combination Switch Components With Torque Specifications
GNSAWMIA1855Z-855Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column upper cover

2.

Steering column

3.

Combination switch

4.

Steering angle sensor

5.

Spiral cable

6.

Steering column lower cover

A.

Screw

SYMBOL

Front
