Exploded View

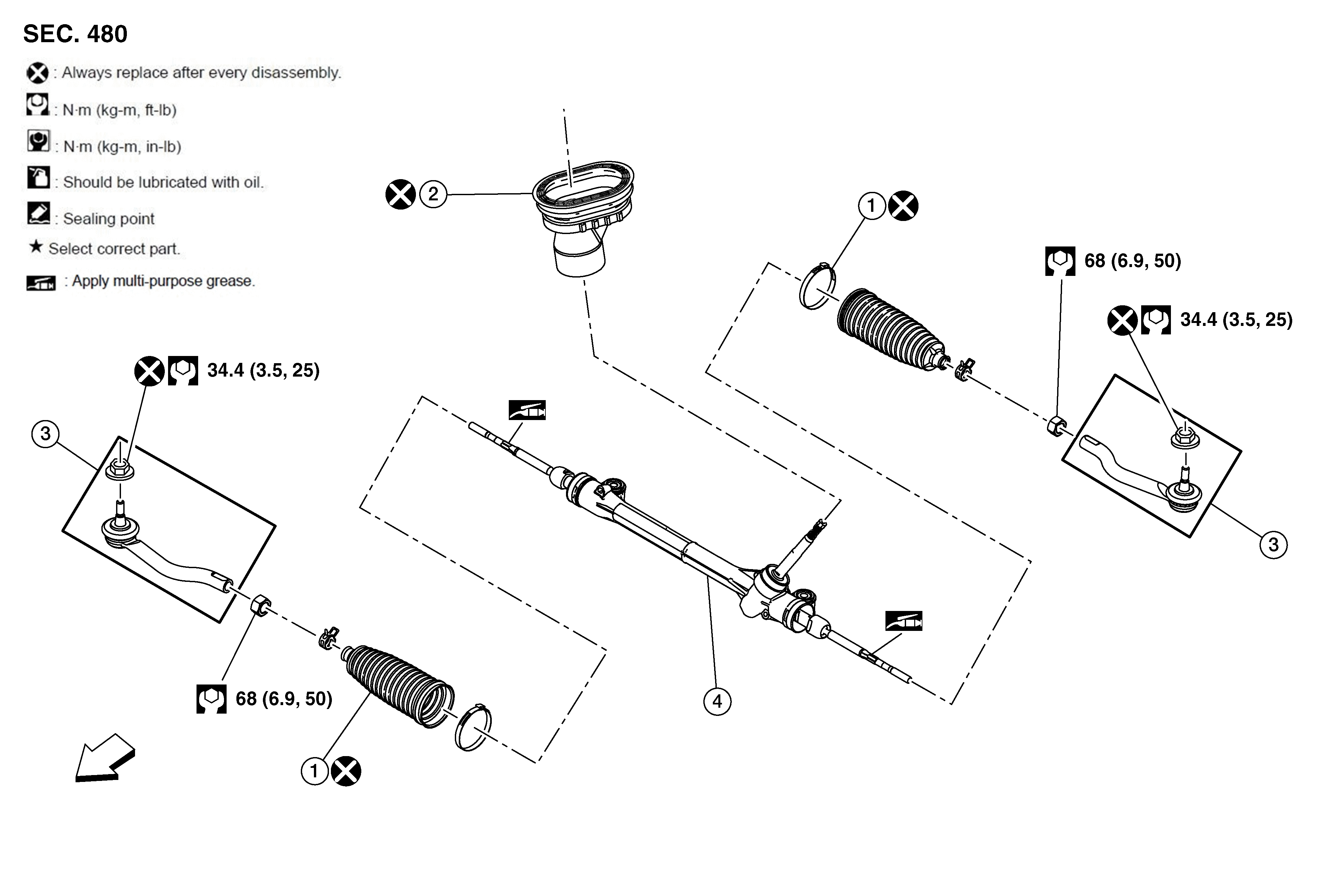

Fig 1: Unit Disassembly And Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Boot assembly	2.	Hole cover	3.	Outer socket
4.	Steering gear		Front
