Exploded View

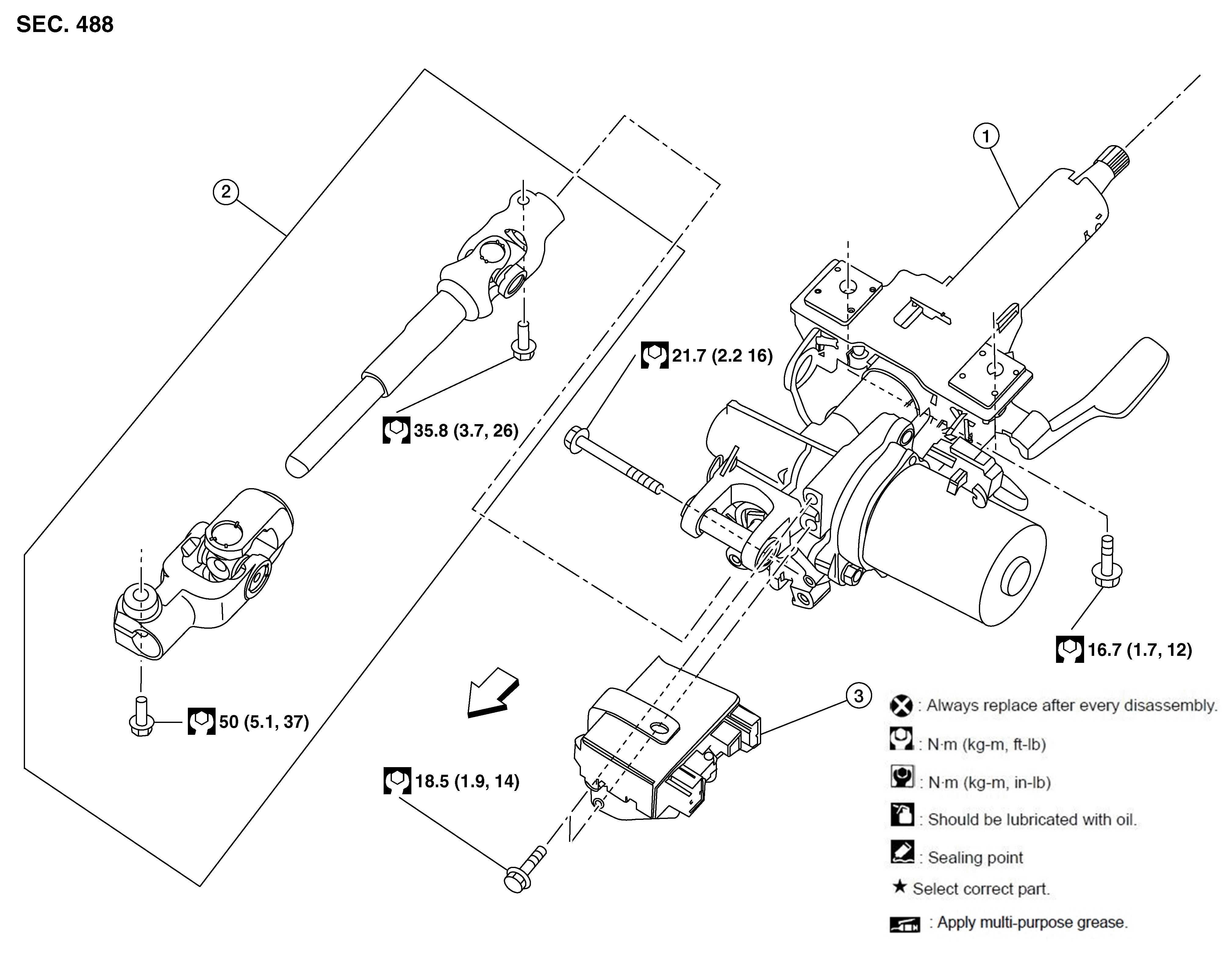

Fig 1: Steering Column With Torque Specifications
GNSAWGIA0504Z-504Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

3.

EPS control unit

SYMBOL

Front
