Exploded View

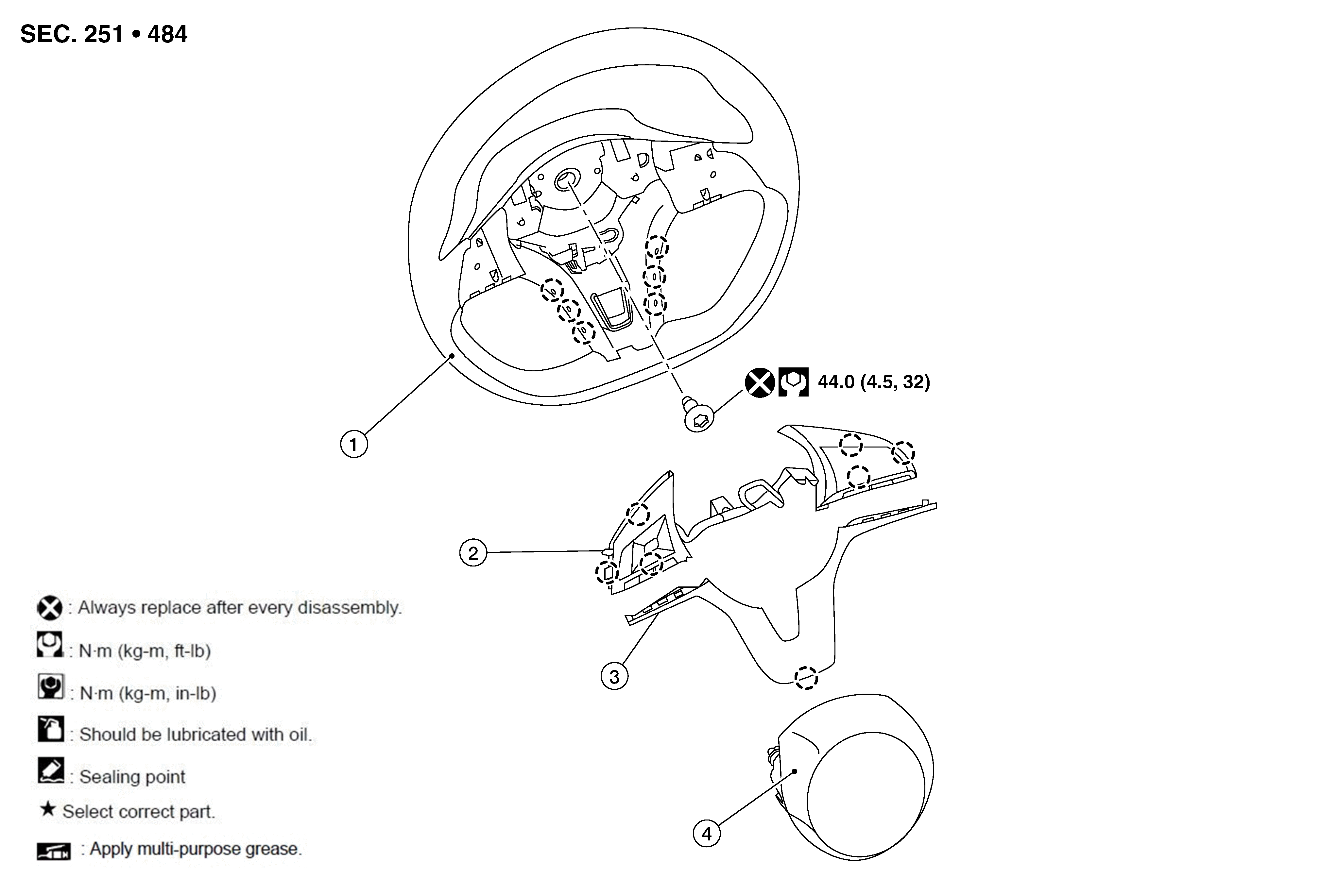

Fig 1: Steering Wheel With Torque Specifications
GNSALNIA0593Z-593Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering wheel

2.

Steering switches

3.

Steering wheel finisher

4.

Driver air bag module

SYMBOL

Pawl
