Disassembly and Assembly: Assembly

Install steering gear hole cover (1) onto steering gear (2).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse hole cover.

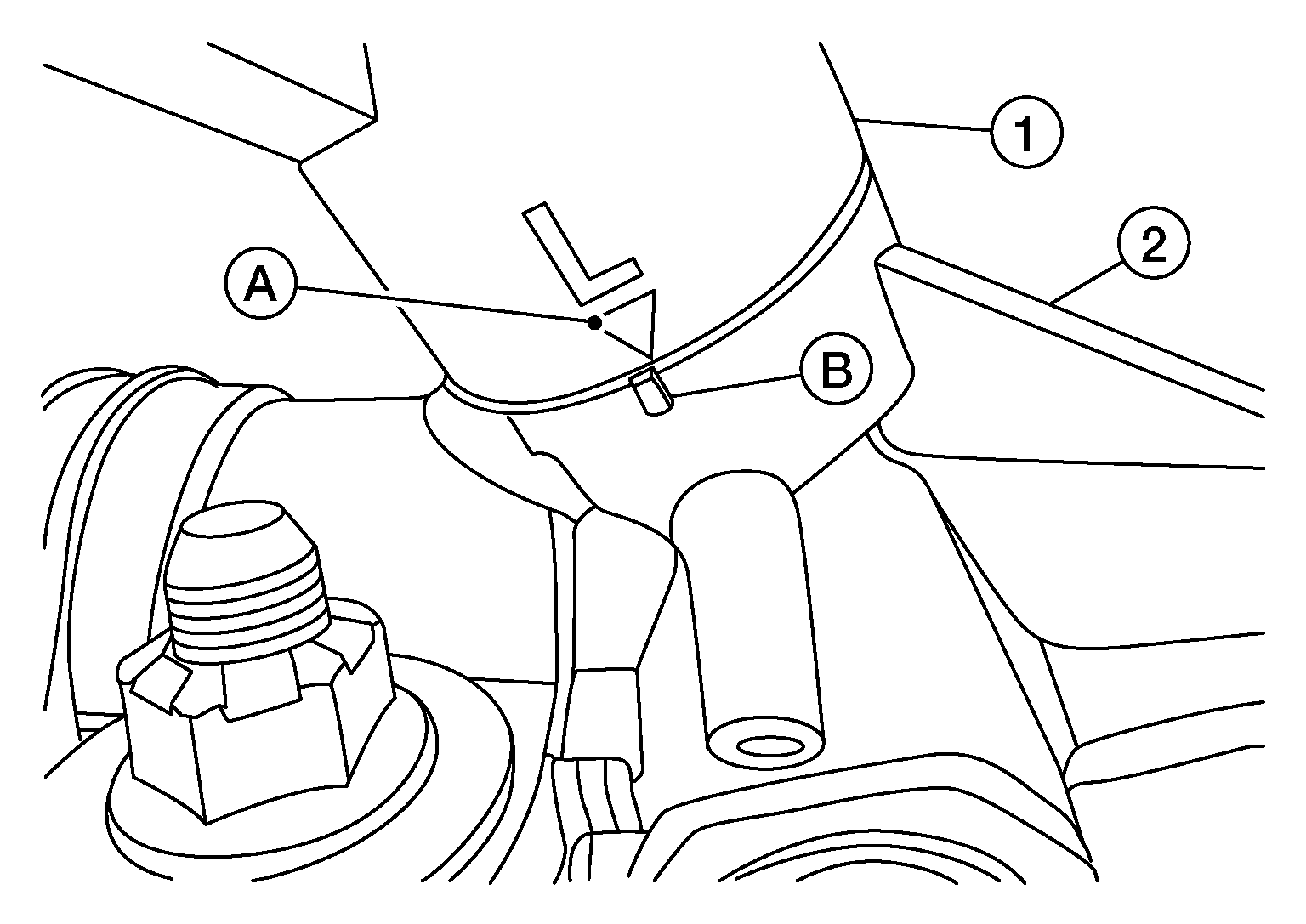

Align arrow (A) on hole cover with protrusion (B) on steering gear.

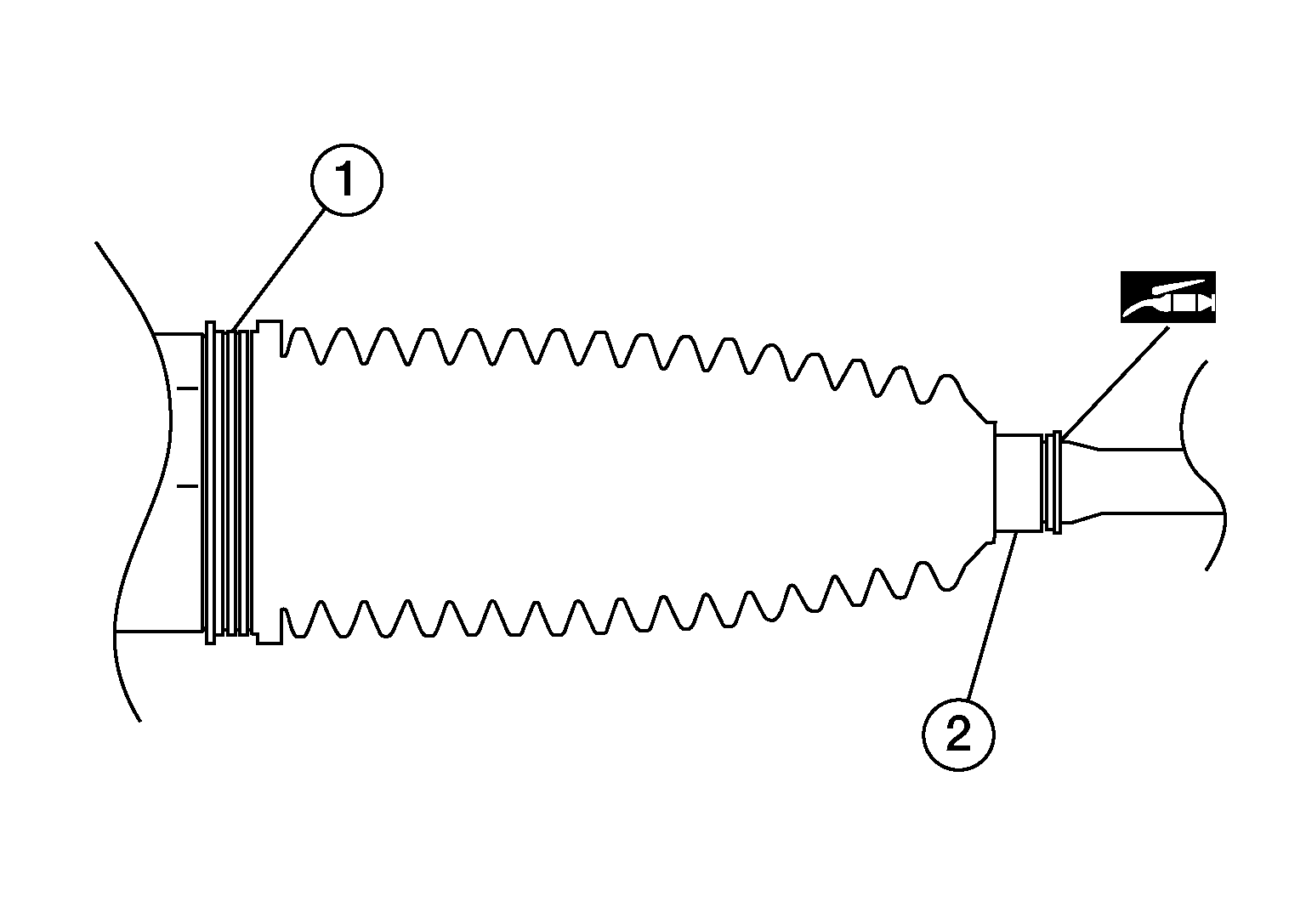

Install large end of boot (1) to steering gear housing.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse boot.
Apply silicone grease between inner socket and small end of boot.
Install small end of boot (2) to inner socket boot mounting groove.
CAUTION: To prevent boot deformation or damage during toe-in adjustment, apply silicone grease between inner socket and small end of boot.

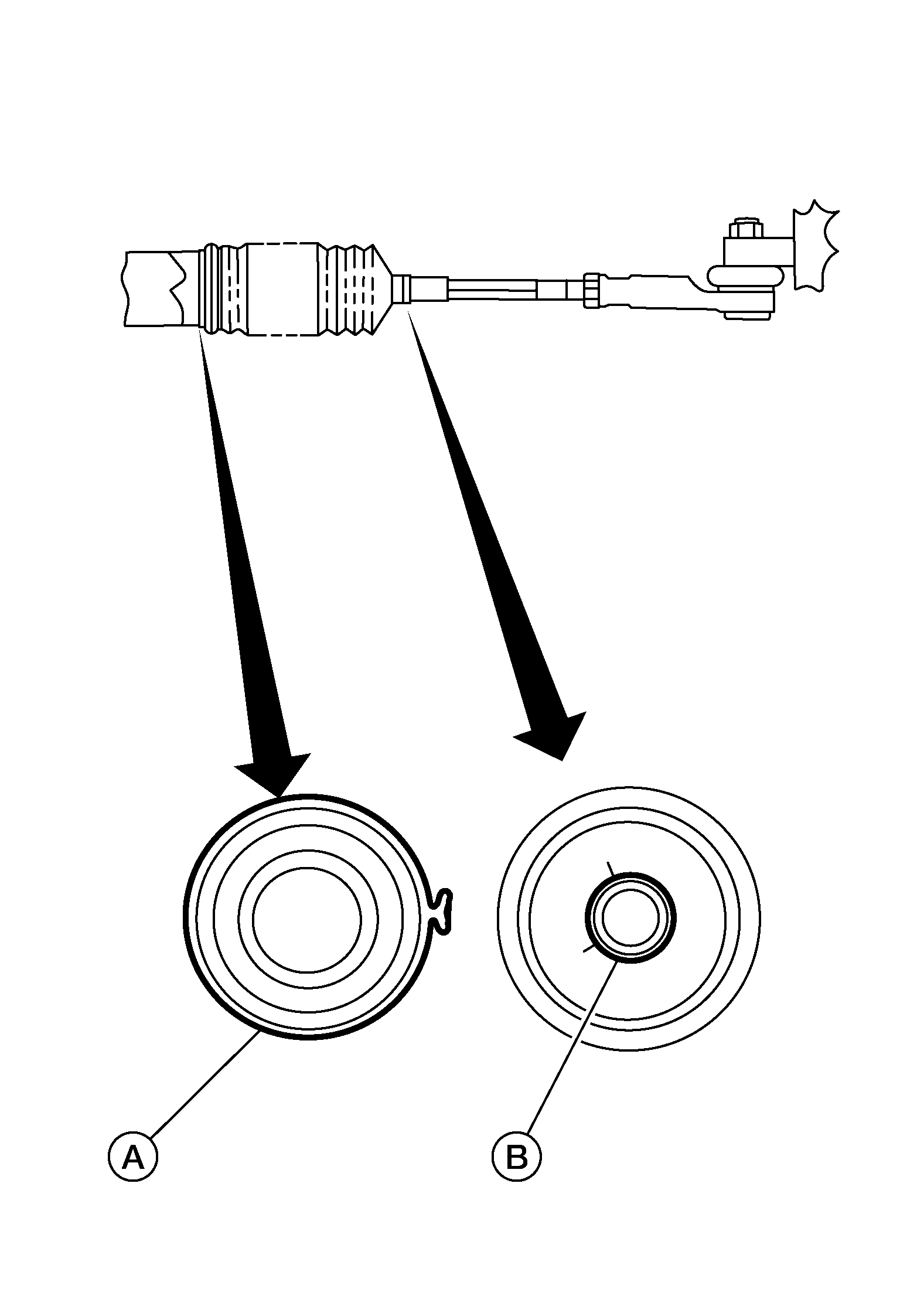

Install small boot clamp (B).

Courtesy of NISSAN NORTH AMERICA, INC.

Install large boot clamp (A) using Tool.

CAUTION: Do not reuse boot clamps.

Tool number

: KV40107300 (J-51751)

Install inner socket lock nut and outer socket.

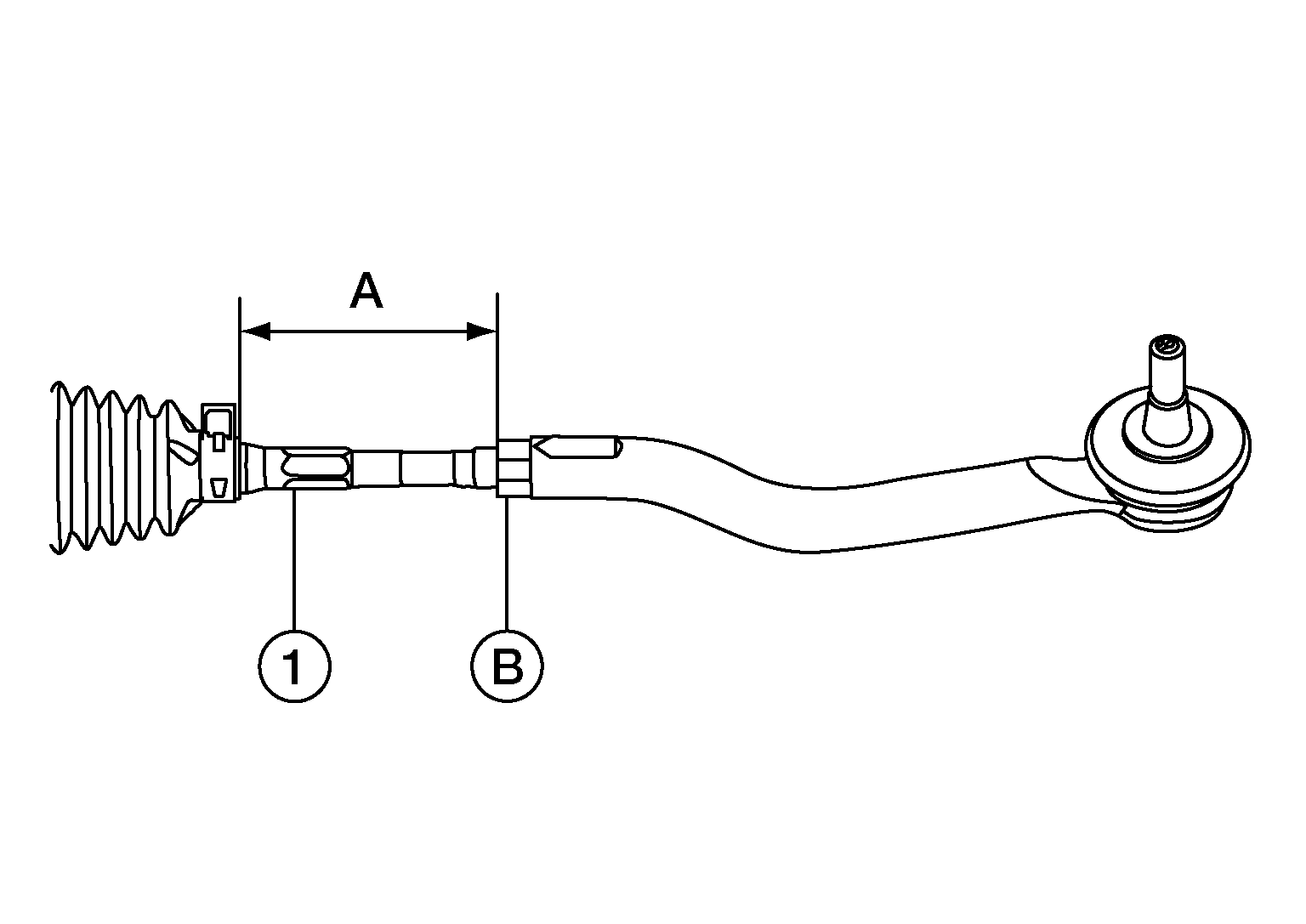

Adjust inner socket (1) to standard length (A), then tighten inner socket lock nut (B) to specification. Refer to Exploded View . Verify inner socket length after tightening lock nut.

Courtesy of NISSAN NORTH AMERICA, INC.

Inner socket length (A)

: Refer to Inner Socket Length .

CAUTION: To prevent damage, hold outer socket across flats using suitable tool while tightening inner socket lock nut.
