ACCELERATOR CONTROL SYSTEM : Exploded View

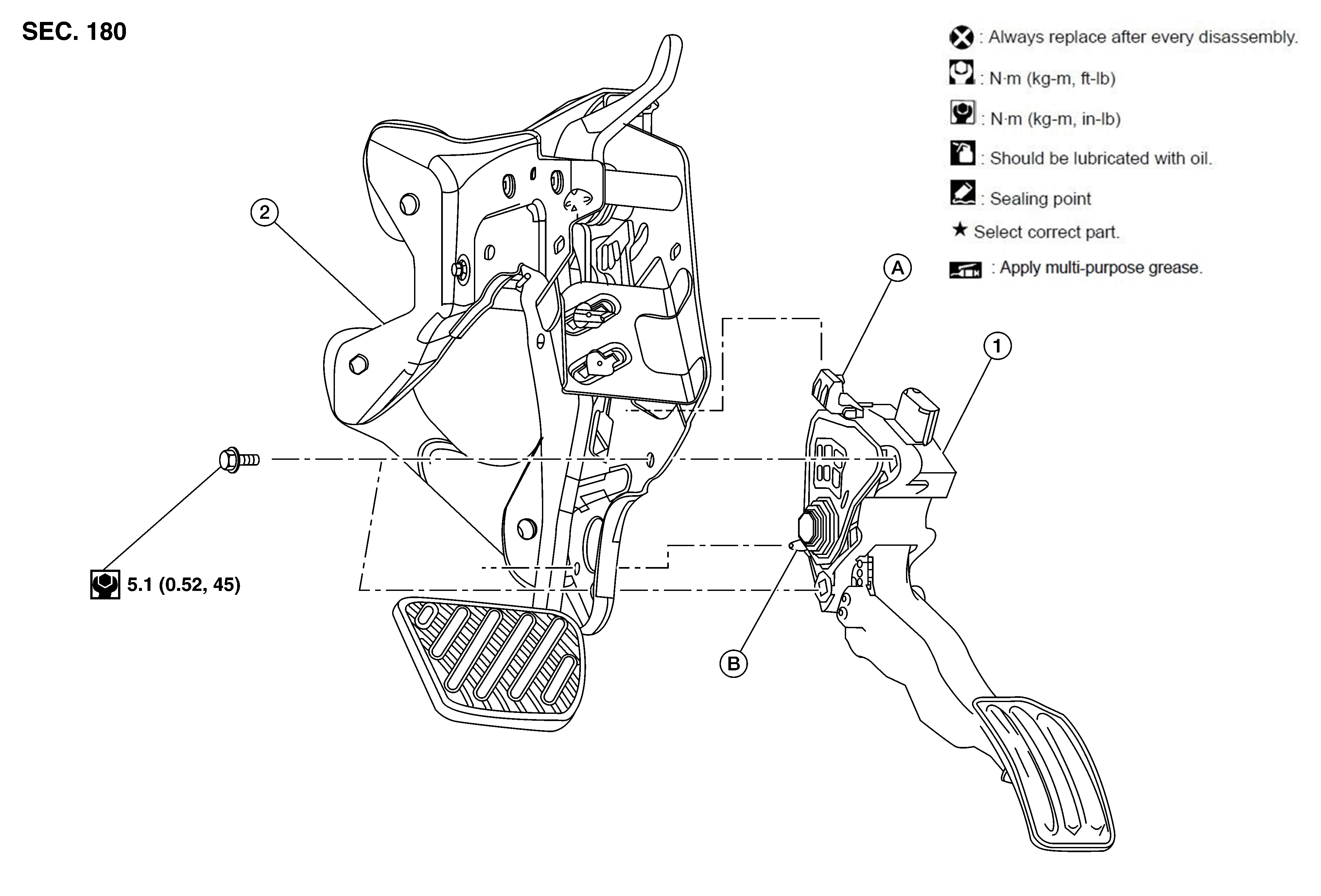

Fig 1: Accelerator Control System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Accelerator pedal assembly	2.	Brake pedal bracket	A.	Locating hook
B.	Locating pin
