CHASSIS CONTROL MODULE : Exploded View

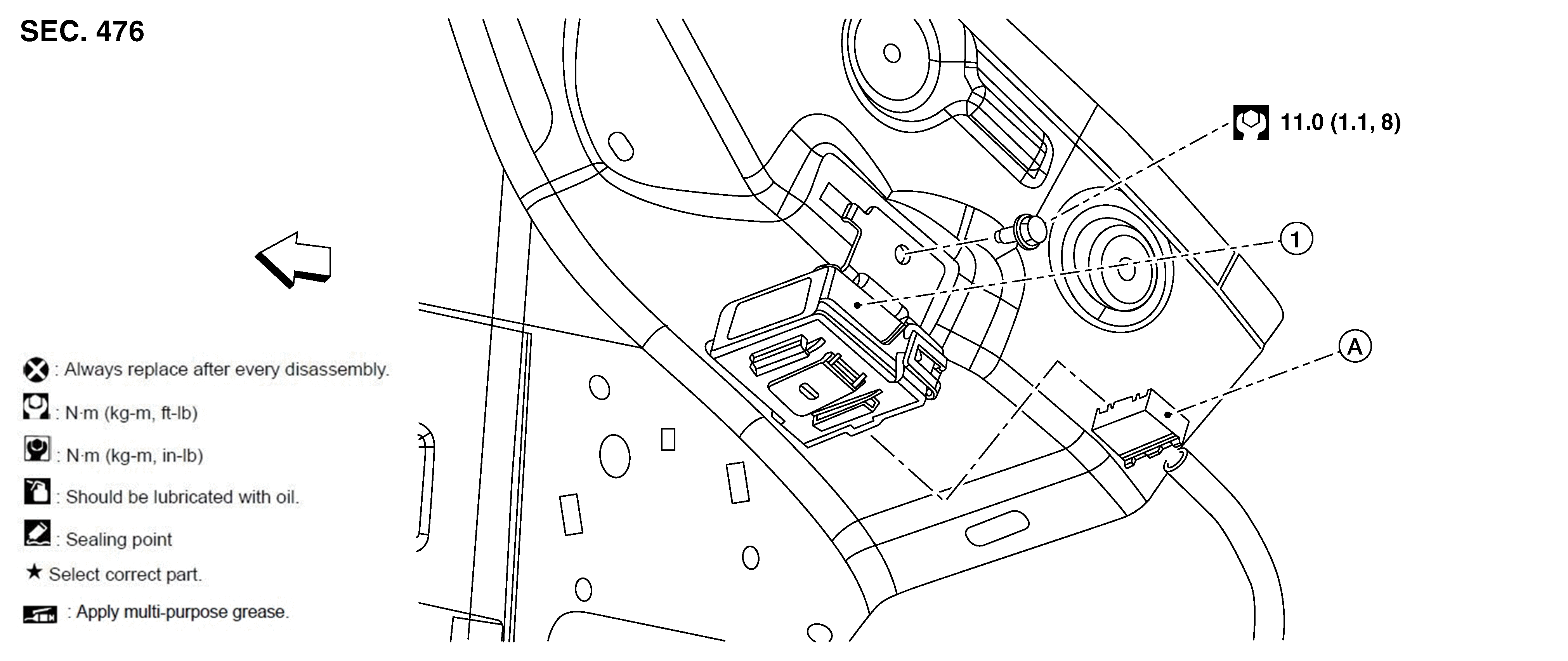

Fig 1: Chassis Control Module Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Chassis control module	A.	Chassis control module harness connector
	Front
