Component Location

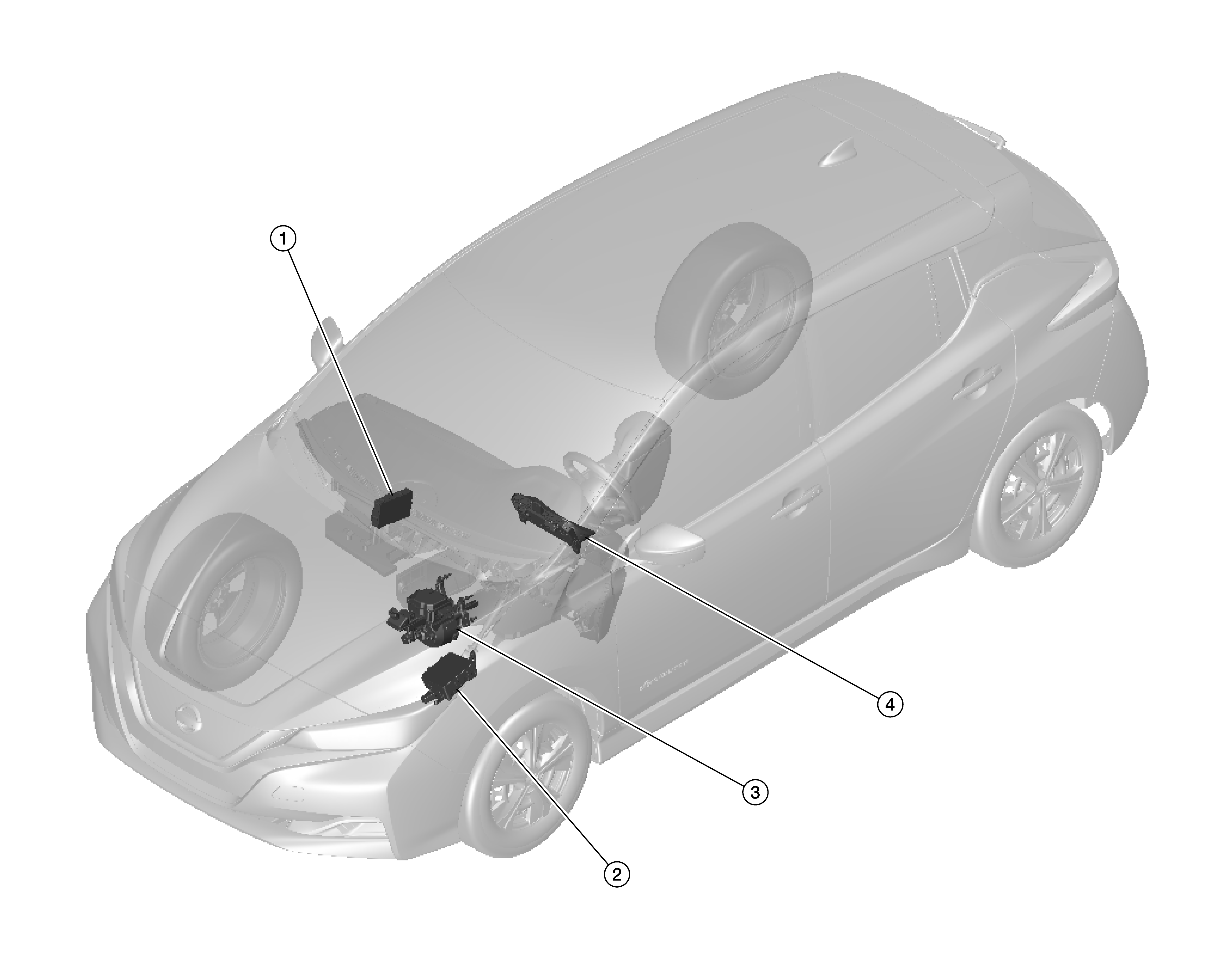

GNSALMIA0054Z-054Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

1.

BCM (Body Control Module)

Refer to System Description .

2.

IPDM E/R (Intelligent Power Distribution Module Engine Room)

Refer to Component Location for detailed component location.

3.

Electrically-driven Intelligent Brake unit

Refer to Component Location for detailed component location.

4.

Combination meter

Refer to Component Location for detailed component location.
