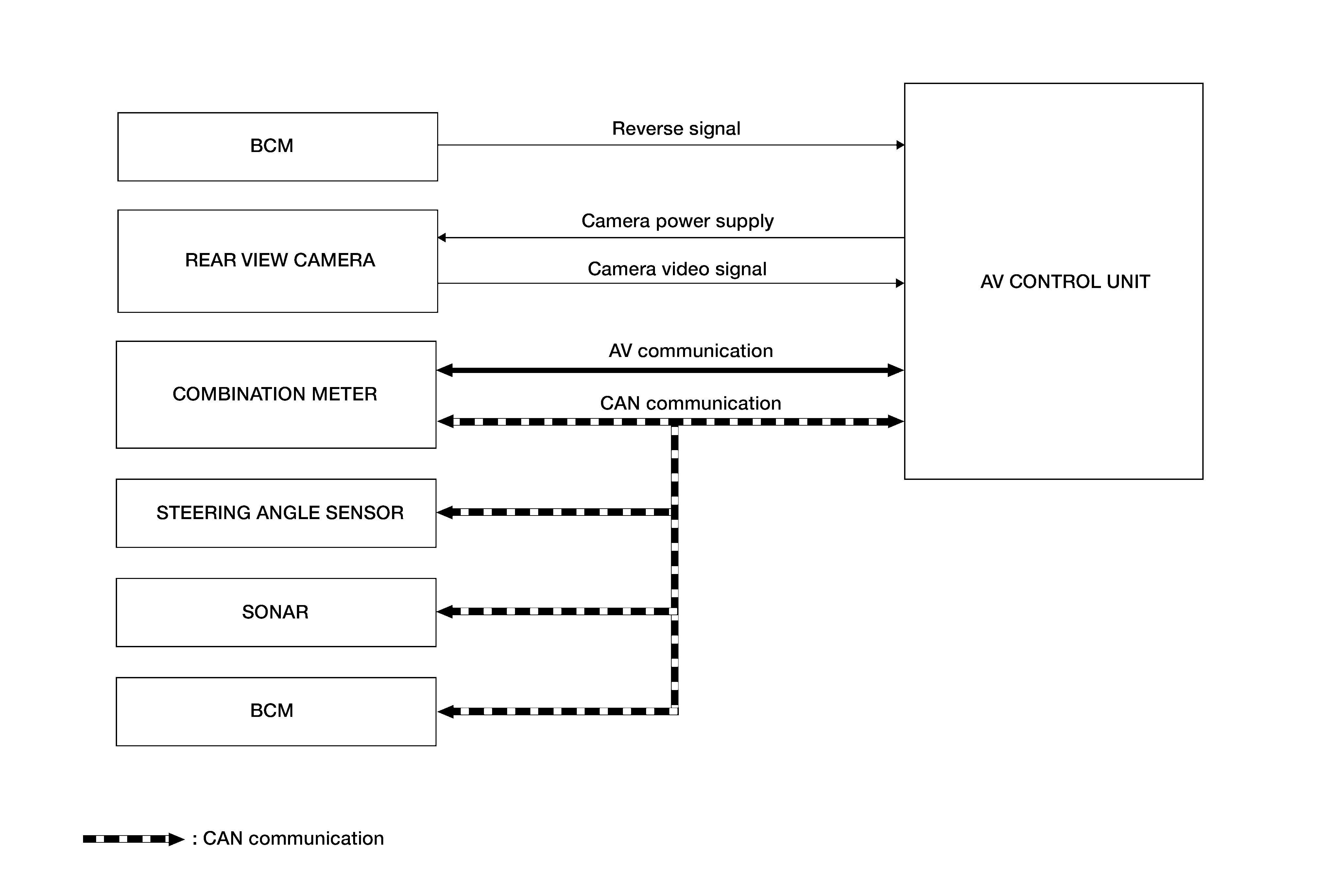

System Diagram
 Courtesy of NISSAN NORTH AMERICA, INC.
|
AV Control Unit Input Signal (CAN Communication)
|
Transmit unit
|
Signal name
|
|
BCM
|
Door switches state signal
|
|
Combination meter
|
Vehicle speed signal
|
|
Sonar control unit
|
Sonar detection display request signal
|
|
Steering angle sensor
|
Steering angle signal
|
