Exploded View

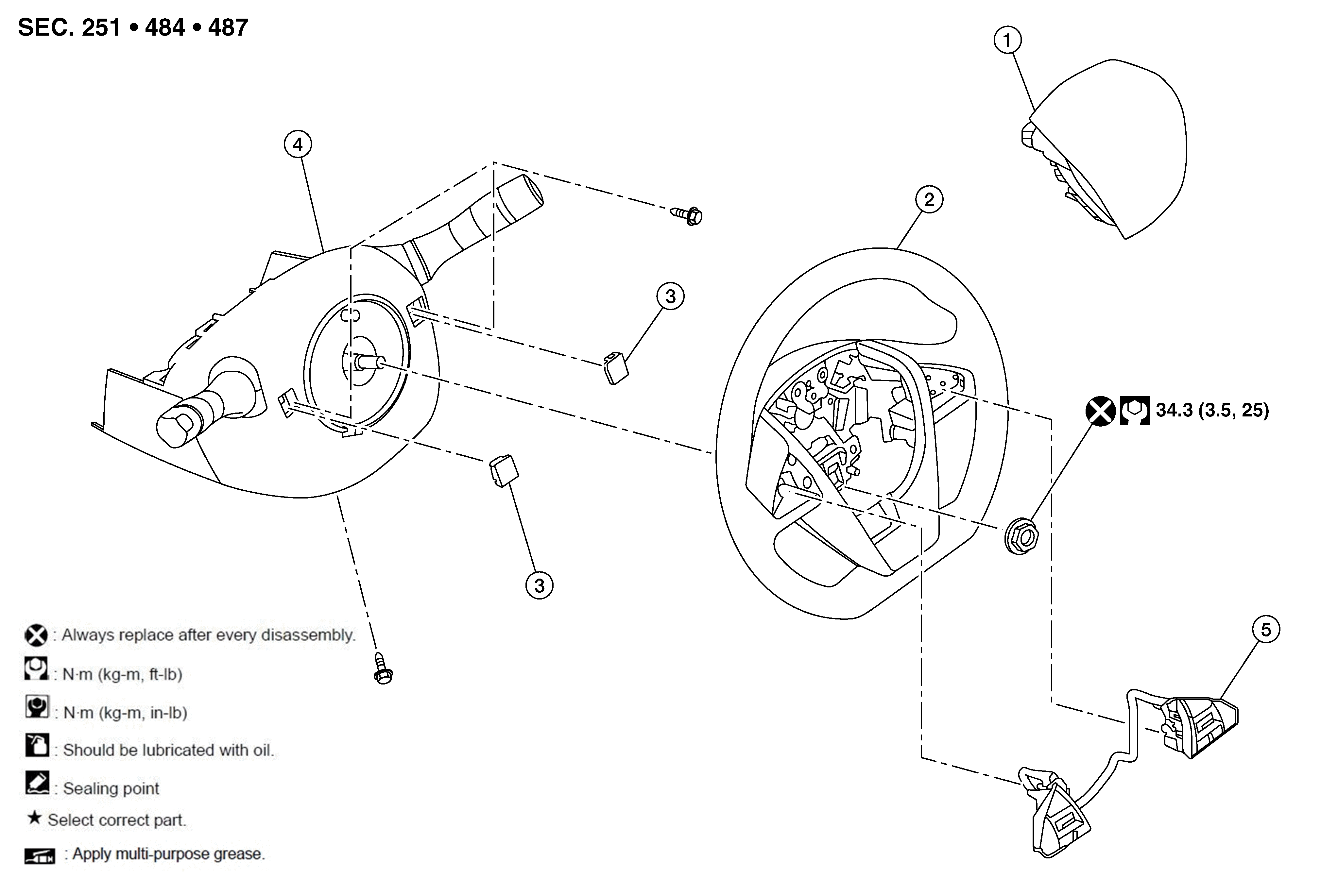

Fig 1: Steering Wheel Components With Torque Specifications
GNSAWGIA0449Z-449Courtesy of NISSAN NORTH AMERICA, INC.

1.

Driver air bag module

2.

Steering wheel

3.

Cover

4.

Steering column cover

5.

Steering wheel switches
